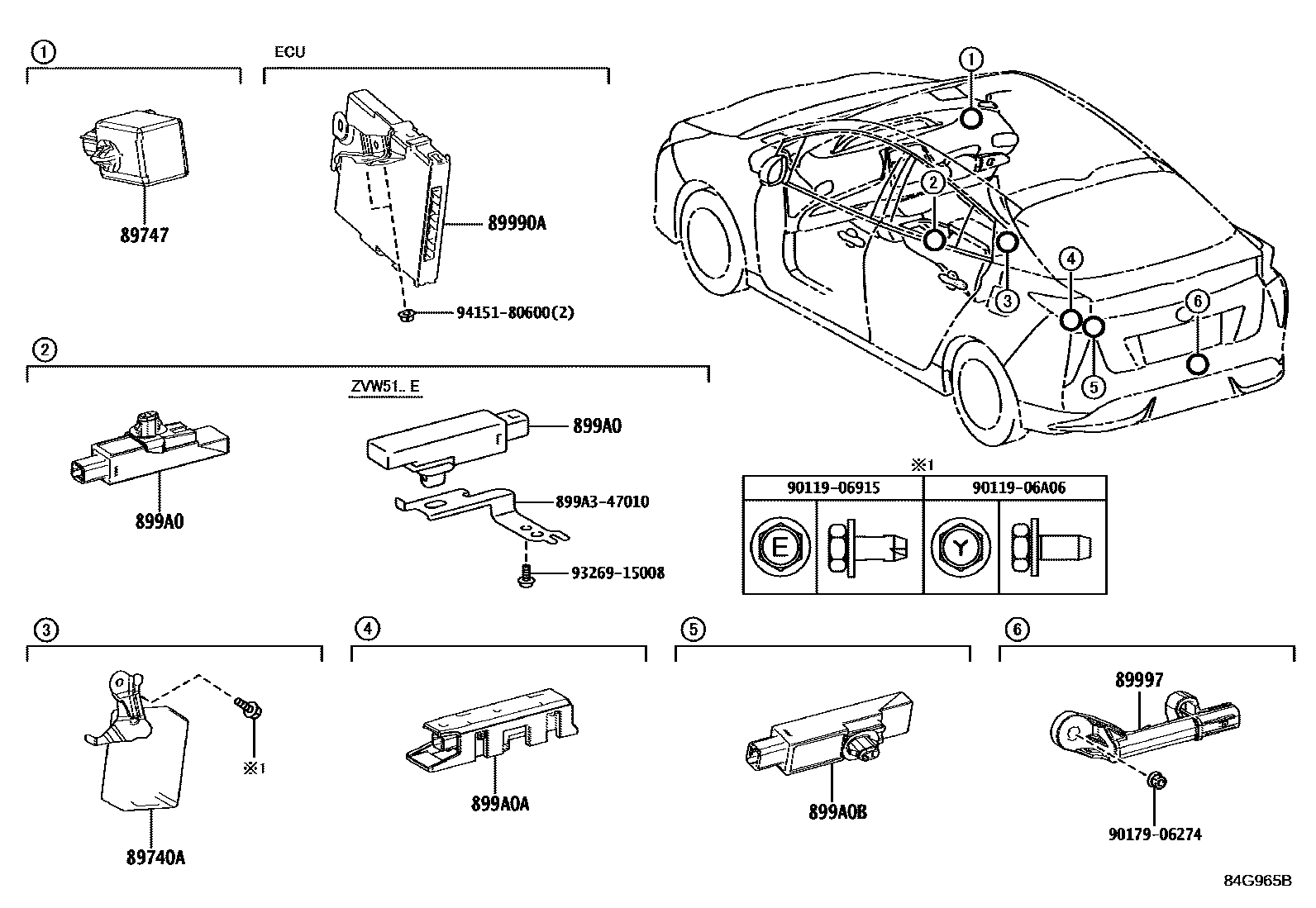

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-47010iZVW5#..CBU201511-202007

main89740-47280iZVW5#..CBU202007

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW5#..CBU201511-201812

89990ACOMPUTER ASSY, SMART KEY

main89990-47130iZVW5#..CBU201511-201703

sub89990-47131

main89990-47131iZVW5#..CBU201703-201801

sub89990-47132

main89990-47132iZVW5#..CBU201802-202007

main89990-47350iZVW5#..CBU202007-202106

main89990-47420iZVW5#..CBU202106-202208

main89990-47421iZVW5#..CBU202209

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZVW5#..CBU201511-201812

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW51..E201511-201812

main899A0-60010iZVW5#..(A,PREM,S)..CBU201511-201812

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47050iZVW5#..CBU201511-201812

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iZVW5#..CBU201511-201812

899A347010BRACKET, INDOOR ELECTRICAL KEY

main899A3-47010

9011906915

main90119-06915

9011906A06

main90119-06A06

9017906274

main90179-06274

9326915008

main93269-15008

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
