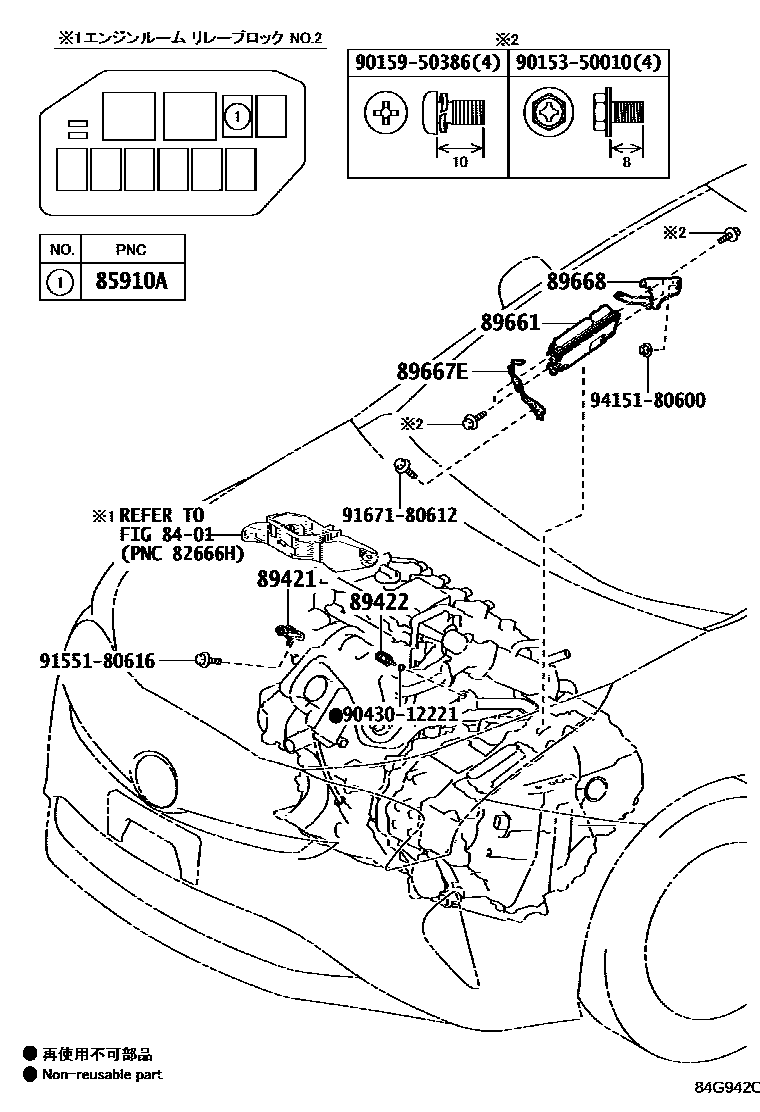

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZVW5#..CBU201511-201812

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVW5#..CBU201511-201812

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW5#..CBU201511-201812

89661COMPUTER, ENGINE CONTROL

main89661-47660iZVW50,55..CBU201511-201708

sub89661-47661

main89661-47661iZVW50,55..CBU201709-201812

main89661-47670iZVW51..CBU201511-201606

sub89661-47671

main89661-47671iZVW51..CBU201607-201709

sub89661-47672

main89661-47672iZVW51..CBU201710-201812

main89661-47A40iZVW55..CBU201812-202007

sub89661-47A41

main89661-47A50iZVW51..CBU201812-202007

main89661-47C90iZVW55..CBU202007

main89661-47D00iZVW51..CBU202007

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-47100iZVW5#..CBU201511-201812

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47050iZVW5#..CBU201511-201812

9015350010

main90153-50010

9015950386

main90159-50386

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
