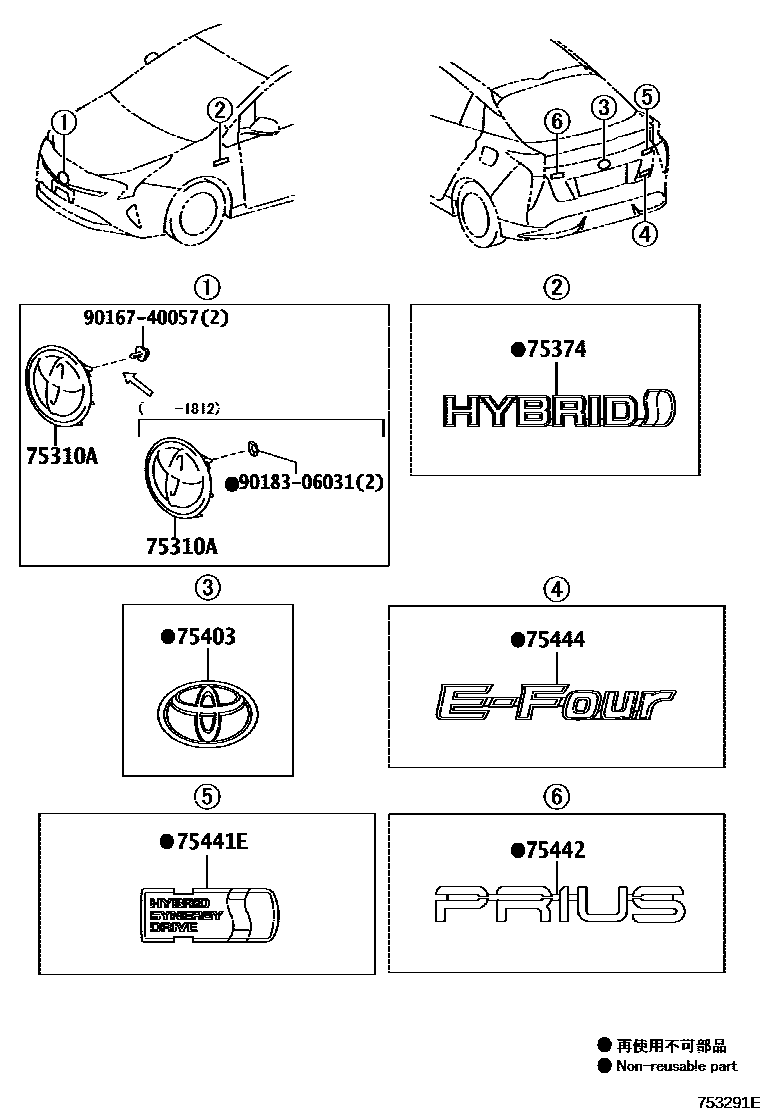

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-33140iZVW5#..CBU201812

main53141-47030iZVW51,55..(A,PREM)..CBU201511-201812

sub53141-47031

main53141-47030iZVW51,55..(A,PREM)..CBU201511-201812

sub53141-47031

main53141-47030iZVW51,55..(A,PREM)..CBU201511-201812

sub53141-47031

main53141-47030iZVW5#..(E,S)..CBU201511-201812

sub53141-47031

main75310-47060iZVW5#..(E,S)..CBU201511-201812

75374EMBLEM, SIDE PANEL

main75374-47140iZVW5#..CBU201511-202007

main75374-47150iZVW5#..CBU201511-202007

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-48010iZVW5#..CBU201511-201812

75441EPLATE, BACK DOOR NAME, NO.1

main75441-47120iZVW5#..CBU201511-201812

main75441-47210iZVW5#..CBU201812

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-47130iZVW5#..CBU201511-201812

main75442-47200iZVW5#..CBU201812

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-47030iZVW55..CBU201511-201812

main75444-47050iZVW55..CBU201812

9016740057

main90167-40057

9018306031

main90183-06031

8 parts on this diagram · 1 diagram in section
