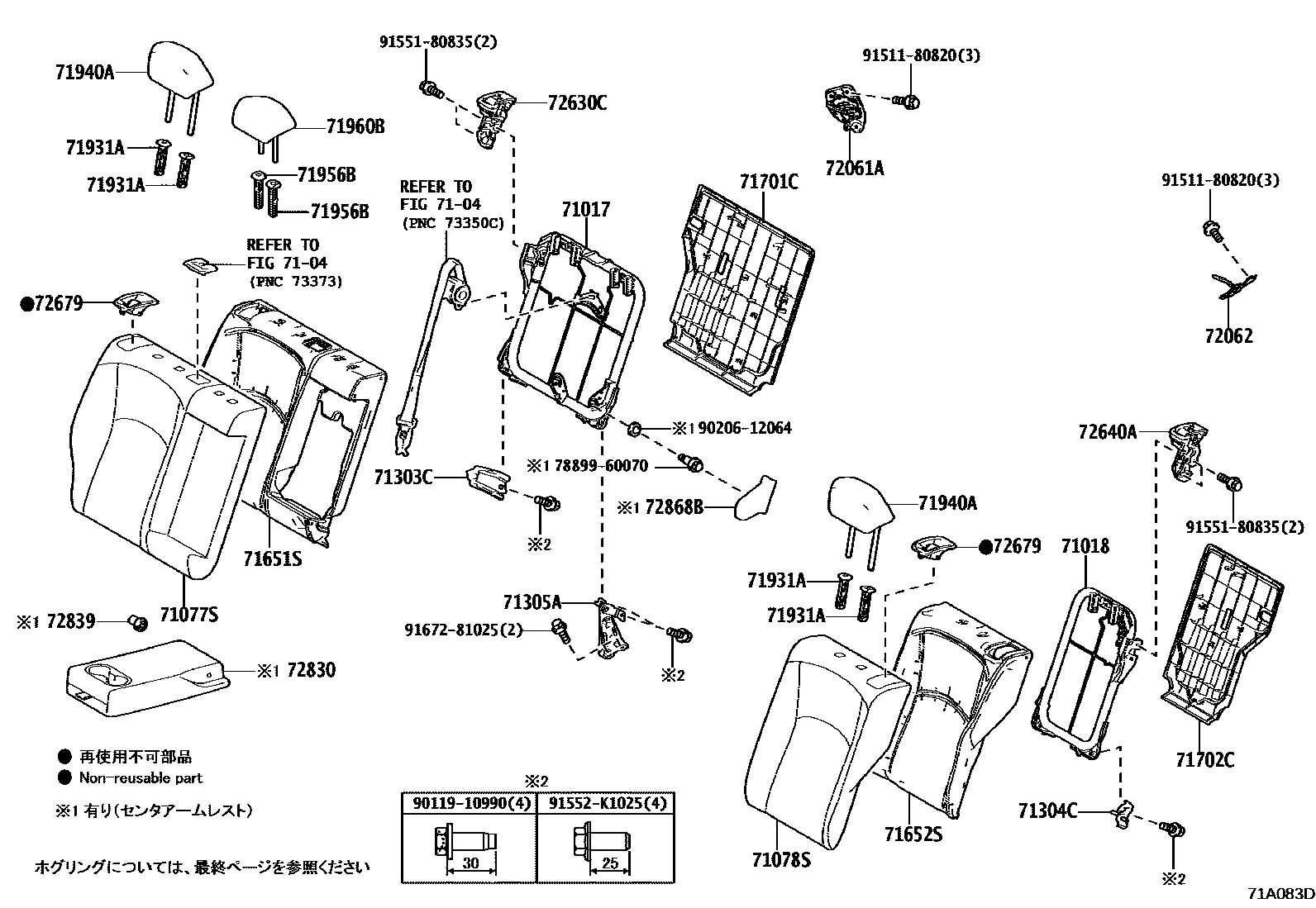

REAR SEAT & SEAT TRACK

0001 1������� 0002 1�������� 0003 1�������� 0004 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47150iZVW51..E201511-201812

main71017-47160iZVW5#..(A,PREM,S)..CBU201511-201812

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47100iZVW5#..CBU201511-201812

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47510-C6iZVW51..E201511-201812

BLACK,TRIM2#

main71077-47600-20iZVW51,55..PREM201511-201809

BLACK/DK.GRAY,TRIM20

sub71077-47600

main71077-47600-21iZVW51,55..PREM201511-201809

BLACK/BLUE,TRIM21

sub71077-47600

main71077-47600-22iZVW51,55..PREM201809-201812

BLACK/DK.GRAY,TRIM20

sub71077-47600

main71077-47600-23iZVW51,55..PREM201809-201812

BLACK/BLUE,TRIM21

sub71077-47600

main71077-47600-P0iZVW51,55..PREM201511-201809

COOL GRAY/TURQUOISE,TRIM10

sub71077-47600

main71077-47600-P1iZVW51,55..PREM201511-201809

COOL GRAY/BLUE,TRIM11

sub71077-47600

main71077-47600-P2iZVW51,55..PREM201809-201812

COOL GRAY/TURQUOISE,TRIM10

sub71077-47600

main71077-47600-P3iZVW51,55..PREM201809-201812

COOL GRAY/BLUE,TRIM11

sub71077-47600

main71077-47620-B4iZVW5#..(A,S)..CBU201511-201812

COOL GRAY,TRIM1#

main71077-47620-C4iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM2#

main71077-47800-B6iZVW51..S..CBU201812-202106

COOL GRAY,TRIM1#

main71077-47800-C6iZVW5#..S..CBU201812

BLACK,TRIM2#

main71077-47810-C3iZVW51..E201812-202105

BLACK,TRIM2#

main71077-47811-C3iZVW51..E202106

BLACK,TRIM2#

main71077-47830-B4iZVW5#..S..CBU201812-202106

main71077-47830-B4iZVW5#..S..CBU201812-202106

main71077-47830-B4iZVW5#..S..CBU201812-202106

main71077-47830-B4iZVW5#..S..CBU201812-202106

main71077-47830-B4iZVW5#..S..CBU201812-202106

main71077-47830-B4iZVW5#..S..CBU201812-202106

COOL GRAY/BLACK/TURQUOISE,TRIM1#

main71077-47830-B4iZVW5#..S..CBU201812-202106

main71077-47830-C9iZVW5#..S..CBU201812

BLACK/BLACK/DK.GRAY,TRIM2#

main71077-47830-C9iZVW5#..A..CBU201812

main71077-47830-C9iZVW5#..A..CBU201812

main71077-47830-C9iZVW5#..A..CBU201812

main71077-47830-C9iZVW5#..A..CBU201812

main71077-47830-C9iZVW5#..A..CBU201812

main71077-47830-C9iZVW5#..A..CBU201812

main71077-47850-24iZVW5#..PREM201812

BLACK/BLACK/DK.GRAY,TRIM20

main71077-47850-25iZVW5#..PREM201812

BLACK/BLACK/BLUE,TRIM21

main71077-47850-B6iZVW5#..PREM201812-202106

COOL GRAY/BLACK/TURQUOISE,TRIM10

main71077-47850-B7iZVW5#..PREM201812-202106

COOL GRAY/BLACK/BLUE,TRIM11

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47320-C6iZVW51..E201511-201812

BLACK,TRIM2#

main71078-47390-B6iZVW51,55..PREM201511-201812

COOL GRAY,TRIM10

main71078-47390-B7iZVW51,55..PREM201511-201812

COOL GRAY/BLUE,TRIM11

main71078-47390-C7iZVW51,55..PREM201511-201812

BLACK,TRIM20

main71078-47390-C8iZVW51,55..PREM201511-201812

BLACK/BLUE,TRIM21

main71078-47410-B3iZVW5#..(A,S)..CBU201511-201812

COOL GRAY,TRIM1#

main71078-47410-C3iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM2#

main71078-47530-C5iZVW51..E201812-202105

BLACK,TRIM2#

main71078-47531-C5iZVW51..E202106

BLACK,TRIM2#

main71078-47550-B4iZVW5#..S..CBU201812-202106

main71078-47550-B4iZVW5#..A..CBU201812-202106

COOL GRAY/BLACK/TURQUOISE,TRIM1#

main71078-47550-B4iZVW5#..A..CBU201812-202106

main71078-47550-B4iZVW5#..A..CBU201812-202106

main71078-47550-B4iZVW5#..A..CBU201812-202106

main71078-47550-B4iZVW5#..A..CBU201812-202106

main71078-47550-B4iZVW5#..A..CBU201812-202106

main71078-47550-C9iZVW5#..S..CBU201812

main71078-47550-C9iZVW5#..S..CBU201812

main71078-47550-C9iZVW5#..S..CBU201812

main71078-47550-C9iZVW5#..S..CBU201812

main71078-47550-C9iZVW5#..S..CBU201812

main71078-47550-C9iZVW5#..A..CBU201812

BLACK/BLACK/DK.GRAY,TRIM2#

main71078-47550-C9iZVW5#..A..CBU201812

main71078-47560-23iZVW5#..PREM201812

BLACK/BLACK/DK.GRAY,TRIM20

main71078-47560-24iZVW5#..PREM201812

BLACK/BLACK/BLUE,TRIM21

main71078-47560-B5iZVW5#..PREM201812-202106

COOL GRAY/BLACK/TURQUOISE,TRIM10

main71078-47560-B6iZVW5#..PREM201812-202106

COOL GRAY/BLACK/BLUE,TRIM11

main71078-47570-B3iZVW51..S..CBU201812-202106

COOL GRAY,TRIM1#

main71078-47570-C3iZVW5#..S..CBU201812

BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47030iZVW5#..CBU201511-201812

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47030iZVW5#..CBU201511-201812

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47040iZVW5#..CBU201511-201812

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47160iZVW51..E201511-202105

sub71651-47161

main71651-47161iZVW51..E202106

main71651-47190iZVW5#..(A,PREM,S)..CBU201511-201812

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47110iZVW5#..CBU201511-201812

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-47020iZVW5#..CBU201511-201812

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-47020iZVW5#..CBU201511-201812

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-B0iZVW51,55..PREM201511-202106

main71930-47050-B0iZVW5#..(A,S)..CBU201511-202106

main71930-47050-C0iZVW51,55..PREM201511-201610

main71930-47050-C0iZVW51,55..PREM201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C5iZVW51..E201610-201812

main71930-47050-C5iZVW51..E201610-202106

main71930-47050-C5iZVW51..E201610-202106

main71930-47050-C5iZVW5#..(A,PREM,S)..CBU201812

main71931-47030-B0iZVW5#..(A,S)..CBU201511-202106

main71931-47030-B0iZVW5#..(A,S)..CBU201511-202106

main71931-47030-C0iZVW51,55..PREM201511-201610

main71931-47030-C0iZVW51,55..PREM201511-201610

main71931-47030-C0iZVW51,55..PREM201511-201610

main71931-47030-C4iZVW51,55..PREM201610-202106

main71931-47030-C4iZVW5#..(A,S)..CBU201610-202106

main71931-47030-C4iZVW51..E201812

main71931-47030-C4iZVW51..E201610-201812

71940AHEADREST ASSY, REAR SEAT

main71940-47490-B1iZVW51..E201511-201812

BLACK,TRIM2#

main71940-47510-B0iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM1#,2#

main71940-47510-C3iZVW5#..S..CBU201812

main71940-47510-C3iZVW5#..A..CBU201812

BLACK,TRIM1#,2#

main71940-47510-C3iZVW5#..A..CBU201812

main71940-47510-C3iZVW5#..A..CBU201812

main71940-47510-C3iZVW5#..A..CBU201812

main71940-47510-C3iZVW5#..A..CBU201812

main71940-47510-C3iZVW5#..A..CBU201812

main71940-47540-C3iZVW51,55..PREM201511-201711

BLACK,TRIM1#,2#

main71940-47540-C3iZVW5#..(A,S)..CBU201511-201711

main71940-47650-C0iZVW5#..(A,S)..CBU201711-201812

sub71940-47650

main71940-47650-C0iZVW5#..(A,S)..CBU201711-201908

BLACK,TRIM1#,2#

sub71940-47650

main71940-47650-C0iZVW5#..(A,S)..CBU201812-201908

sub71940-47650

main71940-47650-C1iZVW5#..(A,S)..CBU201908

sub71940-47650

main71940-47650-C1iZVW5#..PREM201908

BLACK/DK.GRAY,TRIM1#,2#

sub71940-47650

main71940-47670-C0iZVW5#..S..CBU201812

DK.GRAY,TRIM1#,2#

main71940-47670-C0iZVW5#..S..CBU201812

DK.GRAY,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-B0iZVW5#..(A,S)..CBU201511-202106

main71930-47050-B0iZVW5#..PREM201511-202106

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C5iZVW5#..(A,PREM,S)..CBU201812

main71930-47050-C5iZVW51..E201610-201812

main71930-47050-C5iZVW51..E201610-202106

main71930-47050-C5iZVW51..E201610-202106

main71931-47030-B0iZVW51,55..PREM201511-202106

main71931-47030-B0iZVW51,55..PREM201511-202106

main71931-47030-C0iZVW51,55..PREM201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW51..E201511-201610

main71931-47030-C4iZVW51..E201812

main71931-47030-C4iZVW51..E201610-201812

main71931-47030-C4iZVW51..E201610-202106

main71931-47030-C4iZVW51..E201610-202106

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47280-B1iZVW51..E201511-201812

BLACK,TRIM2#

main71960-47290-B4iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM1#,2#

main71960-47290-C5iZVW5#..S..CBU201812

main71960-47290-C5iZVW5#..A..CBU201812

BLACK,TRIM1#,2#

main71960-47290-C5iZVW5#..A..CBU201812

main71960-47290-C5iZVW5#..A..CBU201812

main71960-47290-C5iZVW5#..A..CBU201812

main71960-47290-C5iZVW5#..A..CBU201812

main71960-47290-C5iZVW5#..A..CBU201812

main71960-47310-C3iZVW5#..(A,S)..CBU201511-201711

main71960-47310-C3iZVW51,55..PREM201511-201711

BLACK,TRIM1#,2#

main71960-47340-C0iZVW5#..(A,S)..CBU201711-201908

BLACK,TRIM1#,2#

main71960-47340-C0iZVW5#..(A,S)..CBU201711-201812

main71960-47340-C2iZVW5#..PREM201908

BLACK,TRIM1#,2#

main71960-47350-C1iZVW51..E201812

DK.GRAY,TRIM1#,2#

main71960-47350-C1iZVW5#..S..CBU201812

DK.GRAY,TRIM2#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-47010iZVW5#..CBU201511-201812

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-47010iZVW5#..CBU201511-201812

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C0iZVW5#..CBU201511-201610

BLACK,TRIM1#,2#

sub72630-47050

main72630-47050-C2iZVW5#..(A,PREM,S)..CBU201610-201812

BLACK,TRIM1#,2#

sub72630-47050

main72630-47050-C2iZVW51..E201610-201812

BLACK,TRIM2#

sub72630-47050

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C0iZVW5#..CBU201511-201610

BLACK,TRIM1#,2#

sub72640-47050

main72640-47050-C2iZVW5#..(A,PREM,S)..CBU201610-201812

BLACK,TRIM1#,2#

sub72640-47050

main72640-47050-C2iZVW5#..(A,PREM,S)..CBU201610-201812

BLACK,TRIM2#

sub72640-47050

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72667-47010-C0iZVW5#..CBU201511-201609

BLACK,TRIM1#,2#

main72667-47010-C1iZVW5#..(A,PREM,S)..CBU201610-201812

BLACK,TRIM1#,2#

main72667-47010-C1iZVW5#..(A,PREM,S)..CBU201610-201812

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47260-B3iZVW5#..(A,S)..CBU201511-201812

COOL GRAY,TRIM1#

main72830-47260-B5iZVW5#..A..CBU201812-202106

main72830-47260-B5iZVW5#..A..CBU201812-202106

COOL GRAY,TRIM1#

main72830-47260-B5iZVW5#..A..CBU201812-202106

main72830-47260-B5iZVW5#..A..CBU201812-202106

main72830-47260-B5iZVW5#..A..CBU201812-202106

main72830-47260-B5iZVW5#..A..CBU201812-202106

main72830-47260-B5iZVW5#..A..CBU201812-202106

main72830-47260-C5iZVW5#..(A,S)..CBU201511-201805

BLACK,TRIM2#

main72830-47260-C7iZVW5#..(A,S)..CBU201805-201812

BLACK,TRIM2#

main72830-47260-C8iZVW5#..S..CBU201812

main72830-47260-C8iZVW5#..S..CBU201812

BLACK,TRIM2#

main72830-47260-C8iZVW5#..S..CBU201812

main72830-47260-C8iZVW5#..S..CBU201812

main72830-47260-C8iZVW5#..S..CBU201812

main72830-47260-C8iZVW5#..S..CBU201812

main72830-47260-C8iZVW5#..A..CBU201812

main72830-47280-B4iZVW5#..PREM201812-202106

main72830-47280-B4iZVW5#..(A,S)..CBU201812-202106

COOL GRAY,TRIM1#

main72830-47280-C9iZVW5#..(A,S)..CBU201812

BLACK,TRIM2#

main72830-47280-C9iZVW5#..PREM201812

main72830-47290-B1iZVW51,55..PREM201511-201809

COOL GRAY,TRIM1#

main72830-47290-C3iZVW51,55..PREM201511-201809

BLACK,TRIM2#

main72830-47310-B3iZVW5#..S..CBU201812-202106

COOL GRAY,TRIM1#

main72830-47310-C4iZVW5#..S..CBU201812

BLACK,TRIM2#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iZVW51,55..PREM201511-201812

72868BCOVER, CENTER ARMREST HINGE

main72868-47050-B0iZVW5#..(A,PREM,S)..CBU201511-202106

COOL GRAY,TRIM1#

main72868-47050-C0iZVW5#..(A,S)..CBU201511-201809

BLACK,TRIM2#

main72868-47050-C1iZVW5#..(A,PREM,S)..CBU201805-201812

BLACK,TRIM2#

7889960070BOLT, FRONT SEAT

main78899-60070

9011910990

main90119-10990

9020612064

main90206-12064

9151180820

main91511-80820

9155180835

main91551-80835

91552K1025

main91552-K1025

9167281025

main91672-81025

31 parts on this diagram · 4 diagrams in section
