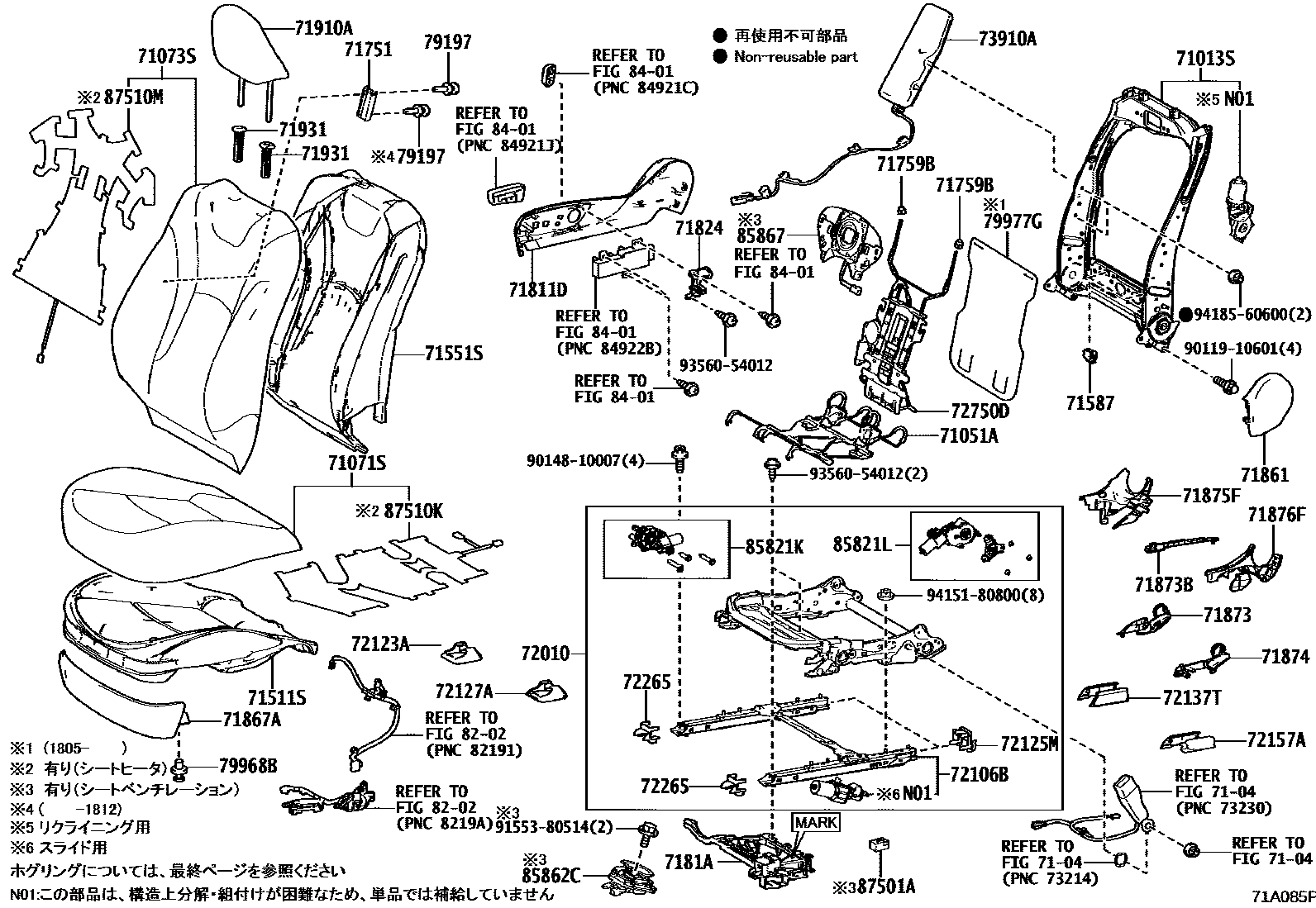

FRONT SEAT & SEAT TRACK

0001 1RH,������� 0002 1RH,����� 6WAY ��� 0003 1RH,����� 4WAY ��� 0004 1LH,����� 4WAY ��� 0005 1LH,����� 4WAY ��� ��(��������0006 1�������(��� & ���),DOP 0007 1�������(��� & ���),DOP 0008 1�������(��� & ���),DOP 0009 1�������(��� & ���),DOP 0010 1�������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-47130iZVW5#..(A,E,S)..CBU¥17,200201511-201705

sub71013-47150¥17,100

main71013-47140iZVW51,55..PREM¥40,000201511-201705

sub71013-47160¥40,000

main71013-47150iZVW5#..(E,S)..CBU¥17,100201705-201812

main71013-47160iZVW5#..(A,PREM)..CBU¥40,000201705-201908

sub71013-47161¥33,300

main71013-47161iZVW5#..(A,PREM)..CBU¥33,300201909

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iZVW5#..CBU¥4,110201511-201812

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47820-C3iZVW51..E201511-201812

BLACK,TRIM2#

main71071-47A40-B2iZVW51,55..PREM201511-201603

COOL GRAY,TRIM10

sub71071-47A41¥56,700

main71071-47A40-B4iZVW51,55..PREM201511-201603

COOL GRAY/BLUE,TRIM11

sub71071-47A41¥56,700

main71071-47A40-C3iZVW51,55..PREM201511-201603

BLACK,TRIM20

sub71071-47A41¥56,700

main71071-47A40-C5iZVW51,55..PREM201511-201603

BLACK/BLUE,TRIM21

sub71071-47A41¥56,700

main71071-47A41-B2iZVW51,55..PREM201604-201812

COOL GRAY,TRIM10

main71071-47A41-B4iZVW51,55..PREM201604-201812

COOL GRAY/BLUE,TRIM11

main71071-47A41-C3iZVW51,55..PREM201604-201812

BLACK,TRIM20

main71071-47A41-C5iZVW51,55..PREM201604-201812

BLACK/BLUE,TRIM21

main71071-47A60-B3iZVW5#..(A,S)..CBU201511-201812

COOL GRAY,TRIM1#

main71071-47A60-C3iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM2#

main71071-47A80-C7iZVW51..E201812

BLACK,TRIM2#

main71071-47C30-20iZVW5#..PREM201812

BLACK/BLUE,TRIM21

main71071-47C30-B9iZVW5#..PREM201812-202106

COOL GRAY/TURQUOIUSE,TRIM10

main71071-47C30-C9iZVW5#..PREM201812

BLACK/DK.GRAY,TRIM20

main71071-47C30-P0iZVW5#..PREM201812-202106

COOL GRAY/BLUE,TRIM11

main71071-47C40-B7iZVW5#..S..CBU201812-202106

COOL GRAY,TRIM1#

main71071-47C40-C5iZVW5#..S..CBU201812

BLACK,TRIM2#

main71071-47C50-B4iZVW5#..A..CBU201812-202106

COOL GRAY,TRIM1#

main71071-47C50-C2iZVW5#..A..CBU201812

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47660-C4iZVW51..E201511-201812

BLACK,TRIM2#

main71073-47760-22iZVW55..PREM201805-201812

BLACK/DK.GRAY,TRIM20

sub71073-47760¥69,700

main71073-47760-23iZVW55..PREM201805-201812

BLACK/BLUE,TRIM21

sub71073-47760¥69,700

main71073-47760-B9iZVW55..PREM201511-201805

COOL GRAY/TURQUOISE,TRIM10

sub71073-47760¥69,700

main71073-47760-C8iZVW51..PREM201511-201805

BLACK/DK.GRAY,TRIM20

sub71073-47760¥69,700

main71073-47760-C9iZVW55..PREM201511-201805

BLACK/BLUE,TRIM21

sub71073-47760¥69,700

main71073-47760-P0iZVW55..PREM201511-201805

COOL GRAY/BLUE,TRIM11

sub71073-47760¥69,700

main71073-47760-P3iZVW55..PREM201805-201812

COOL GRAY/TURQUIOSE,TRIM10

sub71073-47760¥69,700

main71073-47760-P4iZVW55..PREM201805-201812

COOL GRAY/BLUE,TRIM11

sub71073-47760¥69,700

main71073-47880-B4iZVW5#..(A,S)..CBU201511-201812

COOL GRAY,TRIM1#

main71073-47880-C4iZVW5#..(A,S)..CBU201511-201812

BLACK,TRIM2#

main71073-47B20-B2iZVW51..PREM201711-201812

COOL GRAY/TURQUOISE,TRIM10

main71073-47B20-B3iZVW51..PREM201711-201812

COOL GRAY/BLUE,TRIM11

main71073-47B20-C2iZVW51..PREM201711-201812

BLACK/DK.GRAY,TRIM20

main71073-47B20-C3iZVW51..PREM201711-201812

BLACK/BLUE,TRIM21

main71073-47B90-21iZVW5#..PREM201812

BLACK/DK.GRAY NO.153,TRIM20

main71073-47B90-22iZVW5#..PREM201812

BLACK/BLUE NO.281,TRIM21

main71073-47B90-P1iZVW5#..PREM201812-202106

COOL GRAY/TURQUOISE,TRIM10

main71073-47B90-P2iZVW5#..PREM201812-202106

COOL GRAY/BLUE NO.281,TRIM11

main71073-47C40-C4iZVW51..E201812

BLACK,TRIM2#

main71073-47C60-B5iZVW5#..S..CBU201812-202106

COOL GRAY,TRIM1#

main71073-47C60-C5iZVW5#..S..CBU201812

BLACK,TRIM2#

main71073-47D10-B3iZVW5#..A..CBU201812-202106

main71073-47D10-B3iZVW5#..A..CBU201812-202106

main71073-47D10-B3iZVW5#..S..CBU201812-202106

COOL GRAY,TRIM1#

main71073-47D10-B3iZVW5#..S..CBU201812-202106

main71073-47D10-B3iZVW5#..S..CBU201812-202106

main71073-47D10-C3iZVW5#..S..CBU201812

main71073-47D10-C3iZVW5#..S..CBU201812

main71073-47D10-C3iZVW5#..S..CBU201812

main71073-47D10-C3iZVW5#..S..CBU201812

BLACK,TRIM2#

main71073-47D10-C3iZVW5#..S..CBU201812

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-47180iZVW51,55..PREM¥9,100201511-201812

main71511-47190iZVW5#..PREM¥10,000201812

main71511-47250iZVW5#..(A,E,S)..CBU¥9,100201511-201812

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47250iZVW5#..CBU¥9,100201511-201812

main71551-47310iZVW5#..PREM¥11,100201812

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iZVW5#..(A,S)..CBU¥200201511-201812

main71587-47010iZVW5#..(A,S)..CBU¥200201511-201812

main71587-47010iZVW5#..(A,S)..CBU¥200201511-201812

main71587-47010iZVW5#..(A,S)..CBU¥200201511-201812

main71587-47010iZVW5#..(A,S)..CBU¥200201511-201812

71751HANGER, SEAT COVER

main71751-47050iZVW5#..A..CBU¥530201812

main71751-47050iZVW5#..(A,S)..CBU¥530201511-201812

main71751-47050iZVW5#..(A,S)..CBU¥530201511-201812

main71751-47050iZVW5#..(A,S)..CBU¥530201511-201812

main71751-47050iZVW5#..(A,S)..CBU¥530201511-201812

main71751-47050iZVW5#..S..CBU¥530201812

main71751-47050iZVW5#..S..CBU¥530201812

main71751-47050iZVW5#..S..CBU¥530201812

main71751-47050iZVW5#..S..CBU¥530201812

main71751-47050iZVW5#..S..CBU¥530201812

71759BHOOK, FRONT SEATBACK

main71759-50040iZVW5#..(A,S)..CBU¥130201511-201812

main71759-50040iZVW5#..(A,S)..CBU¥130201511-201812

main71759-50040iZVW5#..(A,S)..CBU¥130201511-201812

main71759-50040iZVW5#..(A,S)..CBU¥130201511-201812

main71759-50040iZVW5#..(A,S)..CBU¥130201511-201812

main71759-52050iZVW5#..CBU¥130201812

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C0iZVW5#..(A,S)..CBU201511-201610

BLACK,TRIM1#,2#

sub71811-47140¥3,700

main71811-47140-C1iZVW5#..S..CBU201610-201812

BLACK,TRIM1#,2#

sub71811-47140¥3,700

main71811-47150-C0iZVW51..E201511-201610

BLACK,TRIM1#,2#

sub71811-47150¥3,890

main71811-47150-C1iZVW51..E201610-201812

BLACK,TRIM2#

sub71811-47150¥3,890

main71811-47150-C1iZVW51..E201812

BLACK,TRIM1#,2#

sub71811-47150¥3,890

main71811-47160-C0iZVW51,55..PREM201511-201610

BLACK,TRIM1#,2#

sub71811-47160¥4,100

main71811-47160-C1iZVW5#..(A,PREM)..CBU201812

BLACK,TRIM1#,2#

sub71811-47160¥4,100

main71811-47160-C1iZVW51,55..PREM201610-201812

BLACK,TRIM0#,1#,2#

sub71811-47160¥4,100

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-33010iZVW51,55..PREM¥3,040201703-201812

main7181A-33010iZVW5#..(A,PREM)..CBU¥3,040201812

main7181A-47010iZVW5#..(A,E,S)..CBU¥1,220201511-201812

main7181A-47020iZVW51,55..PREM¥2,910201511-201703

71824BRACKET, FRONT SEAT SIDE, NO.1 RH

main72713-47010iZVW51,55..PREM¥450201511-201812

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C0iZVW5#..(A,PREM,S)..CBU201511-201610

BLACK,TRIM1#,2#

sub71861-47070¥1,090

main71861-47070-C1iZVW51,55..PREM201610-201812

BLACK,TRIM0#,1#,2#

sub71861-47070¥1,090

main71861-47070-C1iZVW5#..(A,S)..CBU201610-201812

BLACK,TRIM1#,2#

sub71861-47070¥1,090

main71861-47080-C0iZVW51..E201511-201610

BLACK,TRIM1#,2#

sub71861-47080¥1,760

main71861-47080-C1iZVW51..E201610-201812

BLACK,TRIM2#

sub71861-47080¥1,760

main71861-47080-C1iZVW51..E201812

BLACK,TRIM1#,2#

sub71861-47080¥1,760

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-47010-C0iZVW51,55..PREM201511-201610

BLACK,TRIM1#,2#

main71867-47010-C1iZVW5#..(A,PREM)..CBU201812

BLACK,TRIM1#,2#

main71867-47010-C1iZVW51,55..PREM201610-201812

BLACK,TRIM0#,1#,2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iZVW5#..(A,PREM,S)..CBU¥740201511-201812

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-47090iZVW5#..(A,PREM)..CBU¥570201511-201812

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iZVW5#..(A,PREM,S)..CBU¥920201511-201812

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C0iZVW5#..(A,PREM,S)..CBU201511-201610

BLACK,TRIM1#,2#

sub71875-47040¥1,860

main71875-47040-C1iZVW5#..(A,S)..CBU201610-201812

BLACK,TRIM1#,2#

sub71875-47040¥1,860

main71875-47040-C1iZVW5#..(A,S)..CBU201610-201812

BLACK,TRIM0#,1#,2#

sub71875-47040¥1,860

main71875-47060-C0iZVW51..E201511-201610

BLACK,TRIM1#,2#

sub71875-47060¥1,860

main71875-47060-C1iZVW51..E201812

BLACK,TRIM1#,2#

sub71875-47060¥1,860

main71875-47060-C1iZVW51..E201610-201812

BLACK,TRIM2#

sub71875-47060¥1,860

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C0iZVW5#..(A,PREM,S)..CBU201511-201610

BLACK,TRIM1#,2#

sub71875-47070¥1,760

main71875-47070-C1iZVW5#..(A,S)..CBU201610-201812

BLACK,TRIM0#,1#,2#

sub71875-47070¥1,760

main71875-47070-C1iZVW51,55..PREM201610-201812

BLACK,TRIM1#,2#

sub71875-47070¥1,760

main71875-47080-C0iZVW51..E201511-201610

BLACK,TRIM1#,2#

sub71875-47080¥1,860

main71875-47080-C1iZVW51..E201812

BLACK,TRIM1#,2#

sub71875-47080¥1,860

main71875-47080-C1iZVW51..E201610-201812

BLACK,TRIM2#

sub71875-47080¥1,860

71910AHEADREST ASSY, FRONT SEAT

main71910-47350-C2iZVW51..E201511-201610

BLACK,TRIM2#

sub71910-47520¥22,900

main71910-47360-B2iZVW5#..(A,S)..CBU201511-201610

COOL GRAY,TRIM1#

sub71910-47530¥22,900

main71910-47360-B2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-B2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-B2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-B2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-C2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-C2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-C2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-C2iZVW5#..(A,S)..CBU201511-201610

sub71910-47530¥22,900

main71910-47360-C2iZVW5#..(A,S)..CBU201511-201610

BLACK,TRIM2#

sub71910-47530¥22,900

main71910-47390-B2iZVW51,55..PREM201511-201610

COOL GRAY,TRIM10

sub71910-47550¥31,100

main71910-47390-B3iZVW51,55..PREM201511-201610

COOL GRAY/BLUE,TRIM11

sub71910-47550¥31,100

main71910-47390-C2iZVW51,55..PREM201511-201610

BLACK,TRIM20

sub71910-47550¥31,100

main71910-47390-C3iZVW51,55..PREM201511-201610

BLACK/BLUE,TRIM21

sub71910-47550¥31,100

main71910-47520-C0iZVW51..E201611-201812

BLACK,TRIM2#

main71910-47530-B0iZVW5#..(A,S)..CBU201611-201812

COOL GRAY,TRIM1#

main71910-47530-B0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-B0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-B0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-B0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

COOL GRAY/TURQUOISE,TRIM1#

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-B5iZVW5#..S..CBU201812-202106

main71910-47530-C0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-C0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-C0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-C0iZVW5#..(A,S)..CBU201611-201812

main71910-47530-C0iZVW5#..(A,S)..CBU201611-201812

BLACK,TRIM2#

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47530-C8iZVW5#..S..CBU201812

BLACK/DK.GRAY,TRIM2#

main71910-47530-C8iZVW5#..S..CBU201812

main71910-47540-21iZVW5#..PREM201812

BLACK/DK.GRAY,TRIM20

sub71910-47540¥19,000

main71910-47540-21iZVW51..PREM201809-201812

BLACK/DK.GRAY,TRIM2#

sub71910-47540¥19,000

main71910-47540-22iZVW5#..PREM201812

BLACK/BLUE,TRIM21

sub71910-47540¥19,000

main71910-47540-B6iZVW5#..PREM201812-202106

COOL GRAY/TURQUOISE,TRIM10

sub71910-47540¥19,000

main71910-47540-B7iZVW5#..(A,S)..CBU201812-202106

COOL GRAY,TRIM11

sub71910-47540¥19,000

main71910-47540-B7iZVW5#..(A,S)..CBU201812-202106

sub71910-47540¥19,000

main71910-47550-B0iZVW51,55..PREM201611-201809

COOL GRAY,TRIM10

sub71910-47540¥19,000

main71910-47550-B1iZVW51,55..PREM201611-201809

COOL GRAY/BLUE,TRIM11

sub71910-47540¥19,000

main71910-47550-C0iZVW51,55..PREM201611-201808

BLACK,TRIM20

sub71910-47540¥19,000

main71910-47550-C1iZVW51,55..PREM201611-201809

BLACK/BLUE,TRIM21

sub71910-47540¥19,000

main71910-47590-20iZVW5#..S..CBU201812

BLACK/DK.GRAY,TRIM2#

main71910-47590-B6iZVW5#..S..CBU201812-202106

COOL GRAY/TURQUOISE,TRIM1#

main71910-47600-C4iZVW51..E201812

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B0iZVW5#..(A,S)..CBU201812-202106

main71930-47050-B0iZVW5#..(A,S)..CBU201812-202106

main71930-47050-B0iZVW5#..(A,S)..CBU201812-202106

main71930-47050-B0iZVW5#..(A,S)..CBU201511-202106

main71930-47050-B0iZVW5#..(A,S)..CBU201812-202106

main71930-47050-B0iZVW5#..(A,S)..CBU201511-202106

main71930-47050-B0iZVW5#..PREM201812-202106

main71930-47050-B0iZVW5#..PREM201511-202106

main71930-47050-B0iZVW5#..PREM201812-202106

main71930-47050-B0iZVW5#..PREM201812-202106

main71930-47050-B0iZVW51,55..PREM201511-201812

main71930-47050-B0iZVW51,55..PREM201511-201812

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C0iZVW5#..(A,S)..CBU201511-201610

main71930-47050-C5iZVW5#..S..CBU202106

main71930-47050-C5iZVW5#..S..CBU202106

main71930-47050-C5iZVW5#..S..CBU202106

main71930-47050-C5iZVW5#..S..CBU202106

main71930-47050-C5iZVW5#..S..CBU202106

main71930-47050-C5iZVW5#..S..CBU202106

main71930-47050-C5iZVW5#..A..CBU201812

main71930-47050-C5iZVW5#..A..CBU201812-202106

main71930-47050-C5iZVW5#..A..CBU202106

main71930-47050-C5iZVW51..E201812

main71930-47050-C5iZVW5#..(A,S)..CBU201812-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201610-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201610-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201812-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201812-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201812-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201812-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201610-202106

main71930-47050-C5iZVW5#..S..CBU201610-202106

main71930-47050-C5iZVW5#..(A,S)..CBU201610-201812

main71930-47050-C5iZVW5#..(A,S)..CBU201610-201812

main71930-47050-C5iZVW5#..(A,S)..CBU201610-201812

main71931-47030-B0iZVW5#..(A,S)..CBU201511-202106

main71931-47030-B0iZVW5#..(A,S)..CBU201511-202106

main71931-47030-B0iZVW5#..(A,S)..CBU201511-201812

main71931-47030-B0iZVW5#..(A,S)..CBU201511-201812

main71931-47030-B0iZVW5#..(A,S)..CBU201511-202106

main71931-47030-B0iZVW5#..S..CBU201812-202106

main71931-47030-B0iZVW5#..S..CBU201812-202106

main71931-47030-B0iZVW5#..S..CBU201812-202106

main71931-47030-B0iZVW5#..S..CBU201812-202106

main71931-47030-B0iZVW5#..S..CBU201812-202106

main71931-47030-B0iZVW5#..S..CBU201812-202106

main71931-47030-B0iZVW5#..A..CBU201812-202106

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C0iZVW5#..(A,S)..CBU201511-201610

main71931-47030-C4iZVW5#..S..CBU201610-202106

main71931-47030-C4iZVW51,55..PREM201610-202106

main71931-47030-C4iZVW51,55..PREM201610-201812

main71931-47030-C4iZVW51,55..PREM201610-201812

main71931-47030-C4iZVW51,55..PREM201610-201812

main71931-47030-C4iZVW51,55..PREM201610-202106

main71931-47030-C4iZVW51,55..PREM201610-202106

main71931-47030-C4iZVW5#..S..CBU201812-202106

main71931-47030-C4iZVW5#..S..CBU201812-202106

main71931-47030-C4iZVW5#..S..CBU201812-202106

main71931-47030-C4iZVW5#..S..CBU201812-202106

main71931-47030-C4iZVW5#..S..CBU201812-202106

main71931-47030-C4iZVW5#..S..CBU201812-202106

main71931-47030-C4iZVW5#..CBU201812

main71931-47030-C4iZVW5#..CBU201812

main71931-47030-C4iZVW5#..S..CBU202106

main71931-47030-C4iZVW5#..S..CBU202106

main71931-47030-C4iZVW5#..S..CBU202106

main71931-47030-C4iZVW5#..S..CBU202106

main71931-47030-C4iZVW5#..S..CBU202106

main71931-47030-C4iZVW5#..S..CBU202106

main71931-47030-C4iZVW5#..S..CBU202106

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-33640iZVW5#..(A,PREM)..CBU¥68,000201812

main72010-33640iZVW51,55..PREM¥68,000201703-201812

main72010-47360iZVW5#..(A,S)..CBU¥31,700201511-201905

main72010-47361iZVW5#..S..CBU¥23,900201906

main72010-47380iZVW51..E¥21,100201511-201811

main72010-47381iZVW51..E¥19,200201812

main72010-47400iZVW51,55..PREM¥89,800201511-201703

72106BRAIL SUB-ASSY, SEAT TRACK, UPPER RH

main72106-33070iZVW50,55..(A,S)..CBU¥29,300201511-201812

main72106-33070iZVW50,55..(A,S)..CBU¥29,300201511-201812

main72106-33070iZVW50,55..(A,S)..CBU¥29,300201511-201812

main72106-33070iZVW50,55..(A,S)..CBU¥29,300201511-201812

main72106-33070iZVW50,55..(A,S)..CBU¥29,300201511-201812

main72106-33070iZVW5#..(A,PREM)..CBU¥29,300201812

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47060iZVW5#..CBU¥320201511-201812

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-47010iZVW5#..(E,S)..CBU¥450201803-201812

main72125-47010iZVW5#..(A,E,S)..CBU¥450201511-201803

main72125-47020iZVW51,55..PREM¥160201511-201812

main72125-47020iZVW5#..(A,E,S)..CBU¥160201511-201803

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-47060iZVW5#..CBU¥320201511-201812

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iZVW5#..CBU¥430201511-201812

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iZVW5#..CBU¥460201511-201812

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iZVW5#..(A,E,S)..CBU¥160201511-201812

main72265-47020iZVW51,55..PREM¥160201511-201812

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-11020iZVW51,55..PREM¥22,400201805-201812

main72750-33140iZVW5#..A..CBU¥20,300201812

main72750-33150iZVW5#..PREM¥20,300201812

main72750-47020iZVW51,55..PREM¥26,900201511-201804

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47080iZVW5#..CBU¥22,100201511-201812

79197HOOK, SEATBACK COVER

main79197-47010iZVW5#..S..CBU¥70201812

main79197-47010iZVW5#..S..CBU¥70201812

main79197-47010iZVW5#..A..CBU¥70201511-201812

main79197-47010iZVW5#..A..CBU¥70201812

main79197-47010iZVW5#..A..CBU¥70201511-201812

main79197-47010iZVW5#..A..CBU¥70201812

main79197-47010iZVW5#..A..CBU¥70201812

main79197-47010iZVW5#..A..CBU¥70201812

main79197-47010iZVW5#..(A,S)..CBU¥70201511-201812

main79197-47010iZVW5#..(A,S)..CBU¥70201511-201812

79968BCLIP

main90467-07215iZVW51,55..PREM¥80201511-201812

79977GFELT, FRONT SEATBACK, RH

main79977-33030iZVW51,55..PREM¥1,080201805-201812

8202

8401

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-47020iZVW51,55..PREM¥13,600201511-201812

main85801-47050iZVW5#..(A,PREM)..CBU¥13,600201812

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-47010iZVW51,55..PREM¥13,600201511-201812

85862CBLOWER, SEAT CUSHION CLIMATE CONTROL, RH

main85801-42040iZVW5#..PREM¥15,700201812

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-30040iZVW5#..PREM¥8,900201812

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-33010iZVW5#..PREM¥4,330201812

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-47170iZVW51,55..PREM¥11,900201511-201812

main87510-47220iZVW5#..PREM¥8,200201812

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-47040iZVW51,55..PREM¥11,900201511-201812

main87530-47060iZVW5#..PREM¥8,200201812

9011910601

main90119-10601¥90

9014810007

main90148-10007¥60

9155380514

main91553-80514¥60

9356054012

main93560-54012¥60

9415180800

main94151-80800¥80

9418560600

main94185-60600¥70

50 parts on this diagram · 10 diagrams in section
