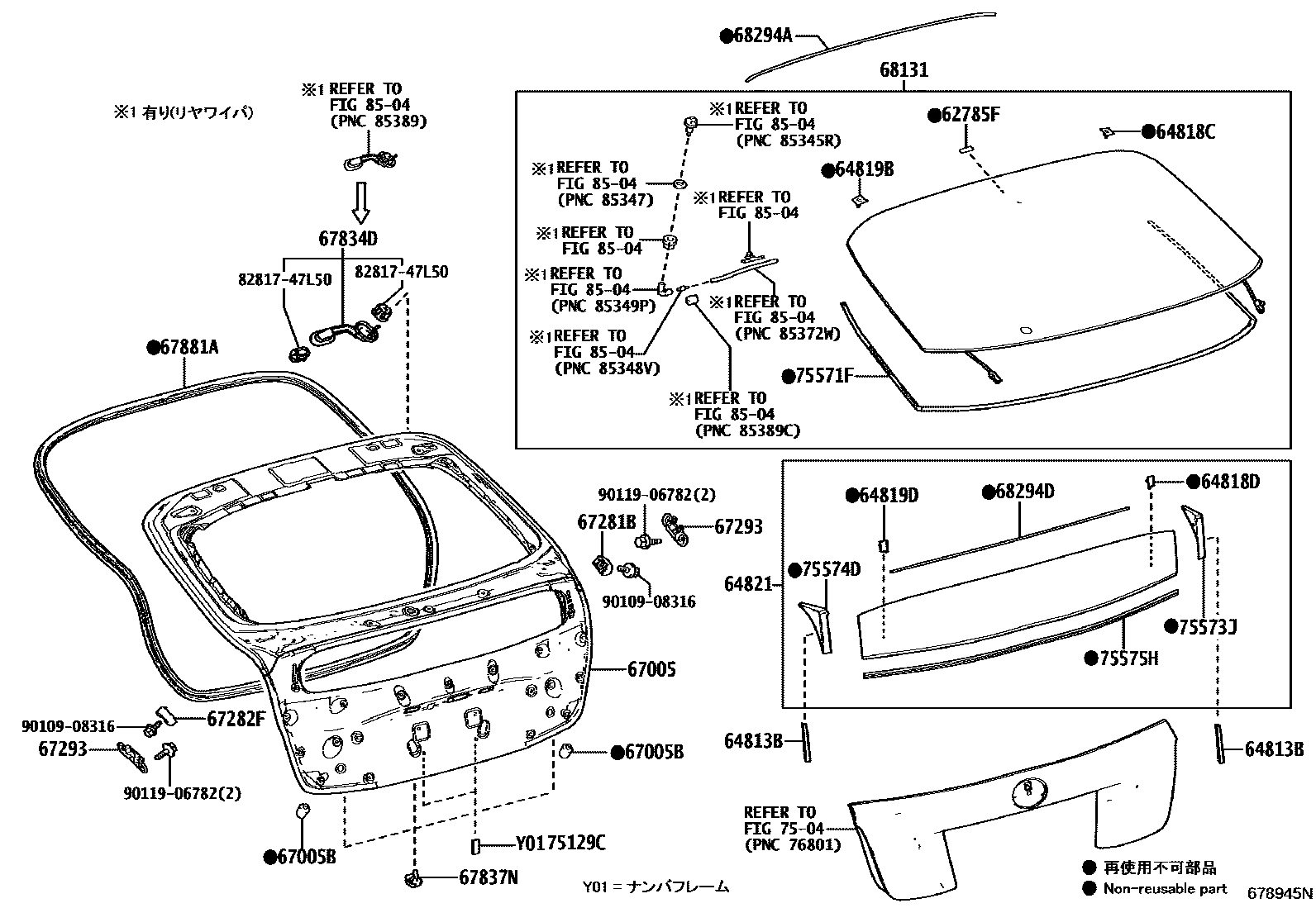

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64818CSPACER, BACK WINDOW GLASS, NO.1
64818DSPACER, BACK WINDOW GLASS, NO.3
64819BSPACER, BACK WINDOW GLASS, NO.2
64819DSPACER, BACK WINDOW GLASS, NO.4
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67834DGROMMET, BACK DOOR SERVICE HOLE COVER
67837NSEAL, BACK DOOR DUST PROOF
68131GLASS, BACK DOOR
68294ADAM, BACK DOOR GLASS ADHESIVE
68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2
7504
75129CCUSHION, REAR LICENCE PLATE
75573JMOULDING, BACK WINDOW, OUTSIDE RH NO.2
75574DMOULDING, BACK WINDOW, OUTSIDE LH NO.2
8504
8281747L50PROTECTOR, WIRING HARNESS, NO.1
main82817-47L50
9010908316
main90109-08316
9011906782
main90119-06782
28 parts on this diagram · 2 diagrams in section
