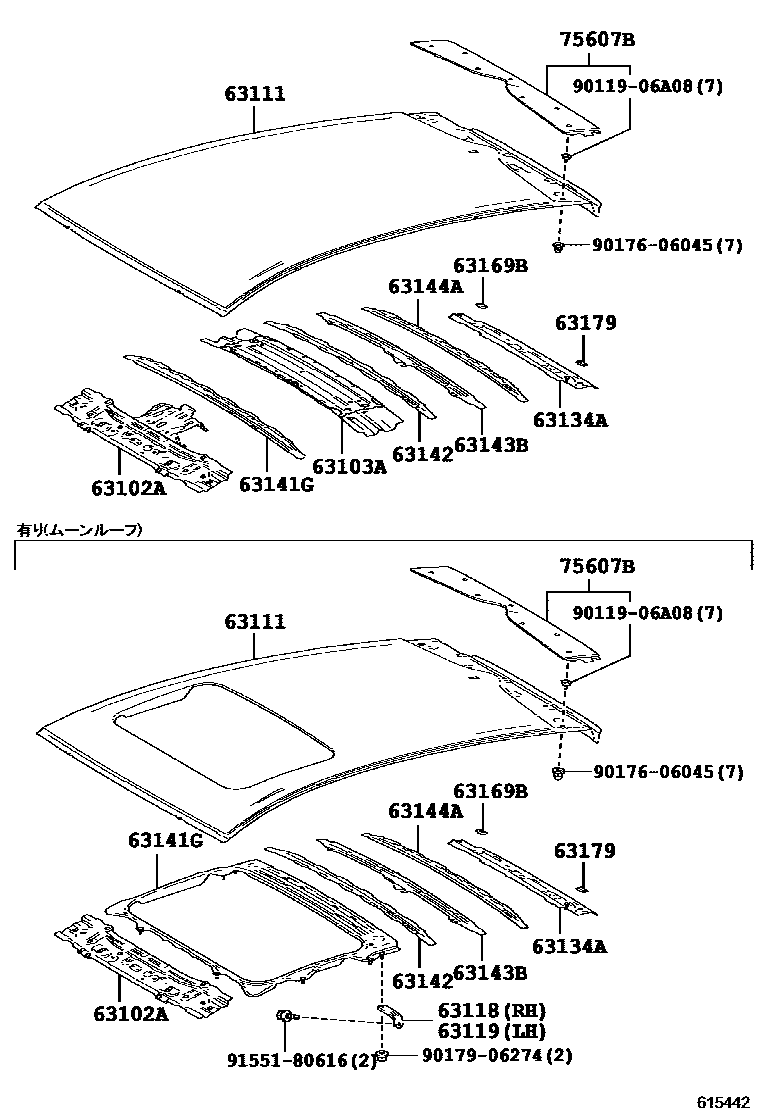

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47902iZVW5#..CBU201511-201812

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47040iZVW5#..CBU201511-202106

sub63103-47050

main63103-47050iZVW5#..CBU202007-202101

63111PANEL, ROOF

main63111-47060iZVW5#..CBU201511-201812

63118SUPPORT, ROOF PANEL, RH

main63118-47020

63119SUPPORT, ROOF PANEL, LH

main63118-47020

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-47040iZVW5#..CBU201511-201812

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-47040iZVW5#..CBU201511-201812

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-47050iZVW5#..CBU201511-201812

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-47050iZVW5#..CBU201511-201812

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63177-47010iZVW5#..CBU201511-201812

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iZVW5#..CBU201511-201812

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iZVW5#..CBU201511-201812

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-47010iZVW5#..CBU201511-201812

9011906A08

main90119-06A08

9017606045

main90176-06045

9017906274

main90179-06274

9155180616

main91551-80616

17 parts on this diagram · 2 diagrams in section
