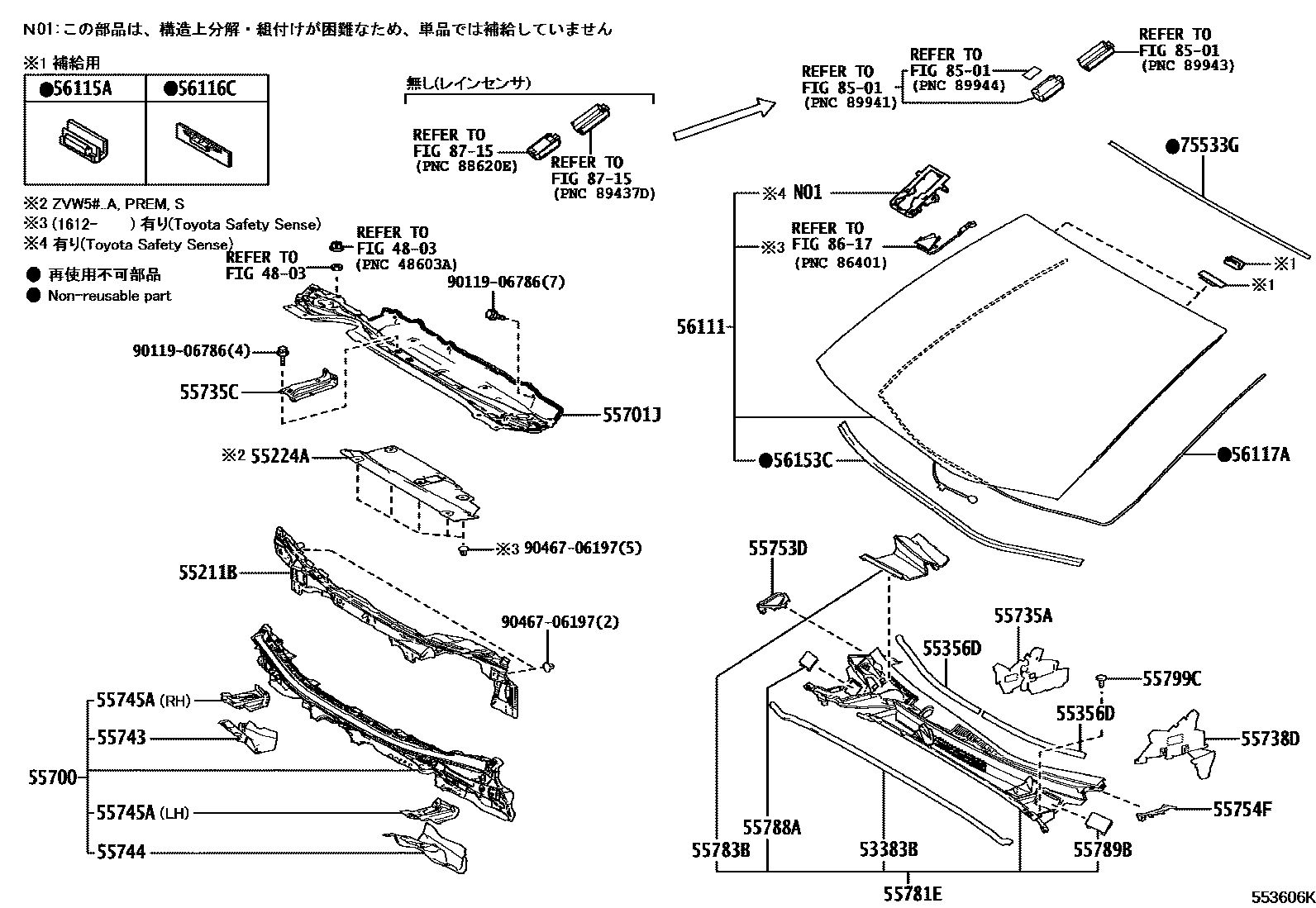

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

4803

53383BSEAL, HOOD TO COWL TOP

main53383-47150iZVW5#..CBU¥740201511-201812

55211BSILENCER, FRONT PANEL

main55211-47090iZVW5#..CBU¥2,540201511-201812

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-47040iZVW5#..(A,PREM,S)..CBU¥3,590201511-201812

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-47110iZVW5#..CBU¥600201511-201812

55700PANEL ASSY, FRONT

main55700-47240iZVW5#..CBU¥19,200201511-201812

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-47070iZVW5#..CBU¥10,900201511-201812

55735APLATE, WATER GUARD, LH

main55734-47090iZVW5#..CBU¥760201511-201812

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-47030iZVW5#..CBU¥1,600201511-201812

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-47030iZVW5#..CBU¥720201511-201812

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-47030iZVW5#..CBU¥1,460201511-201812

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main55744-47020iZVW5#..CBU¥1,460201511-201812

55745AREINFORCEMENT, COWL TOP, INNER

main55745-47030iZVW5#..CBU¥1,510201511-201812

main55746-47030iZVW5#..CBU¥1,510201511-201812

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-47090iZVW5#..CBU¥500201511-201812

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-47070iZVW5#..CBU¥500201511-201812

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-47230iZVW5#..CBU¥12,900201511-201705

sub55708-47260¥10,700

main55708-47260iZVW5#..CBU¥10,700201705-201812

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-47130iZVW5#..CBU¥2,920201511-201705

main55783-47140iZVW5#..CBU¥2,430201705-201812

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-47150iZVW5#..CBU¥370201511-201812

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-47070iZVW5#..CBU¥500201511-201812

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iZVW5#..CBU¥120201511-201812

56111GLASS, WINDSHIELD

main56101-4E941iZVW51..E¥129,000201511-201803

main56101-4E943iZVW50,55..S..CBU¥129,000201511-201803

main56101-4E947iZVW51,55..(A,PREM)..CBU¥215,000201511-201612

main56101-4E987iZVW51,55..(A,PREM)..CBU¥188,000201612-201803

main56101-4F965iZVW51..E¥124,000201803-201812

main56101-4F967iZVW50,55..S..CBU¥122,000201803-201812

main56101-4F969iZVW5#..S..CBU¥149,000201812-201907

main56101-4F971iZVW51,55..(A,PREM)..CBU¥182,000201803-201812

main56101-4F971iZVW5#..(A,PREM)..CBU¥182,000201812-201907

main56101-4F977iZVW51..E¥149,000201812-201907

main56103-47904iZVW5#..(A,PREM)..CBU¥165,000202106

main56103-47912iZVW5#..(A,PREM)..CBU¥145,000202007-202106

main56103-47914iZVW5#..S..CBU¥150,000201907-202007

main56103-47927iZVW5#..(A,PREM)..CBU¥183,000201907-202007

main56103-47935iZVW51..E¥150,000201907-202007

main56103-47942iZVW51..E¥113,000202007-202106

main56103-47952iZVW5#..S..CBU¥134,000202106

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iZVW5#..CBU¥130201511-201812

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZVW5#..CBU¥120201511-201812

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iZVW5#..CBU¥1,480201511-201812

main56117-64010iZVW5#..CBU¥1,480201511-201812

main56117-64010iZVW5#..CBU¥1,480201511-201812

main56117-64010iZVW5#..CBU¥1,480201511-201812

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-47020iZVW5#..CBU¥4,730201511-201812

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-47070iZVW5#..CBU¥1,540201511-201812

8501

8617

8715

9011906786

main90119-06786¥90

9046706197

main90467-06197¥120

31 parts on this diagram · 2 diagrams in section
