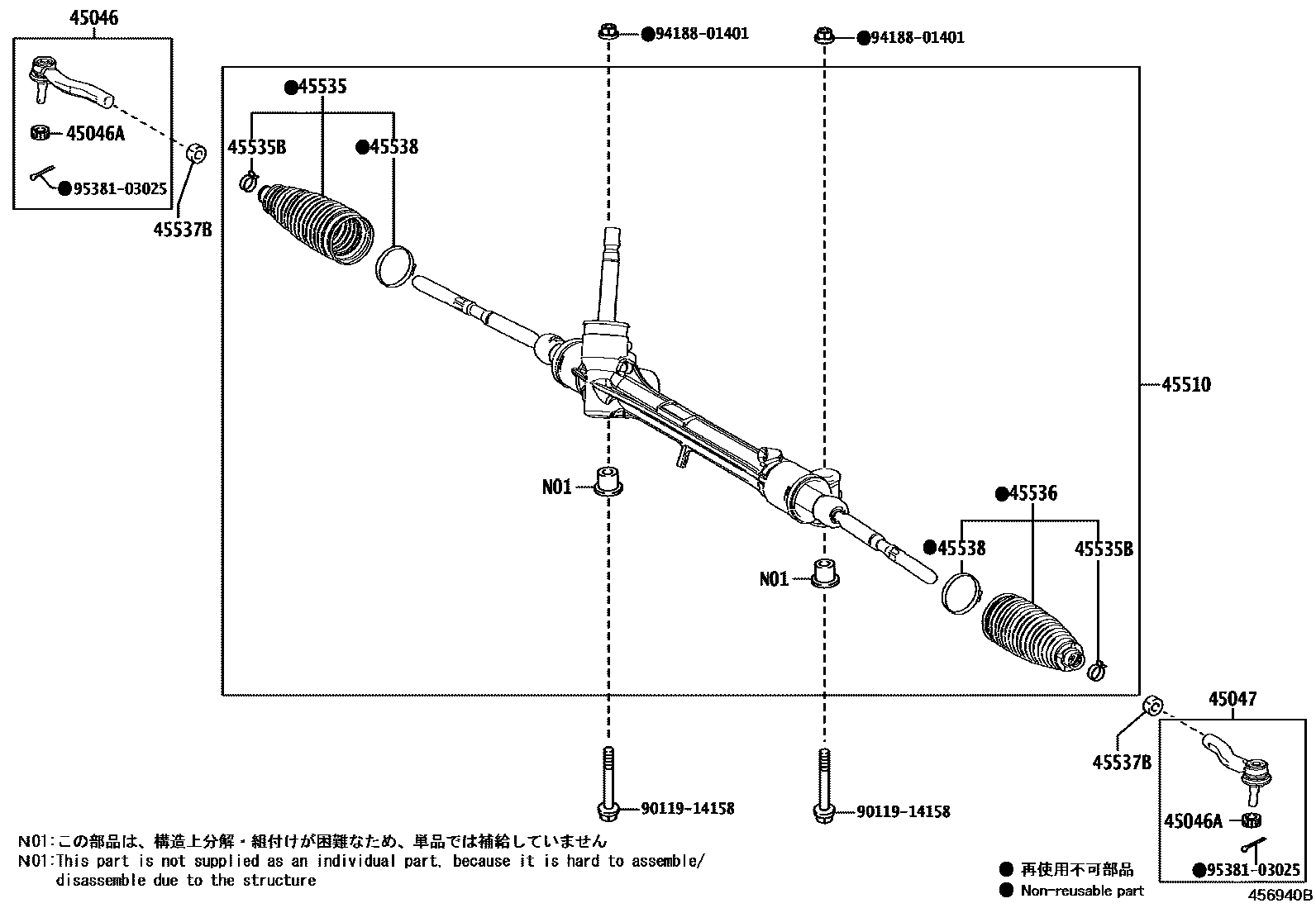

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49255iZVW5#..CBU201511-201812

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZVW5#..CBU201511-201812

45047END SUB-ASSY, TIE ROD, LH

main45047-49195iZVW5#..CBU201511-201812

45510GEAR ASSY, STEERING

main45510-47140iZVW5#..CBU201511-201812

main45510-47150iZVW5#..(A,PREM,S)..CBU201812

main45510-47150iZVW5#..(A,PREM,S)..CBU201511-201812

main45510-47150iZVW50,55..S..CBU201711-201812

45535BOOT, STEERING RACK, NO.1

main45535-59075iZVW5#..CBU201511-201812

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iZVW5#..CBU201511-201812

45536BOOT, STEERING RACK, NO.2

main45535-59075iZVW5#..CBU201511-201812

45537BNUT, RACK END LOCK

main90178-16001iZVW5#..CBU201511-201812

45538RETAINER, STEERING RACK BOOT

main45538-48020iZVW5#..CBU201511-201812

9011914158

main90119-14158

9418801401

main94188-01401

9538103025

main95381-03025

12 parts on this diagram · 1 diagram in section
