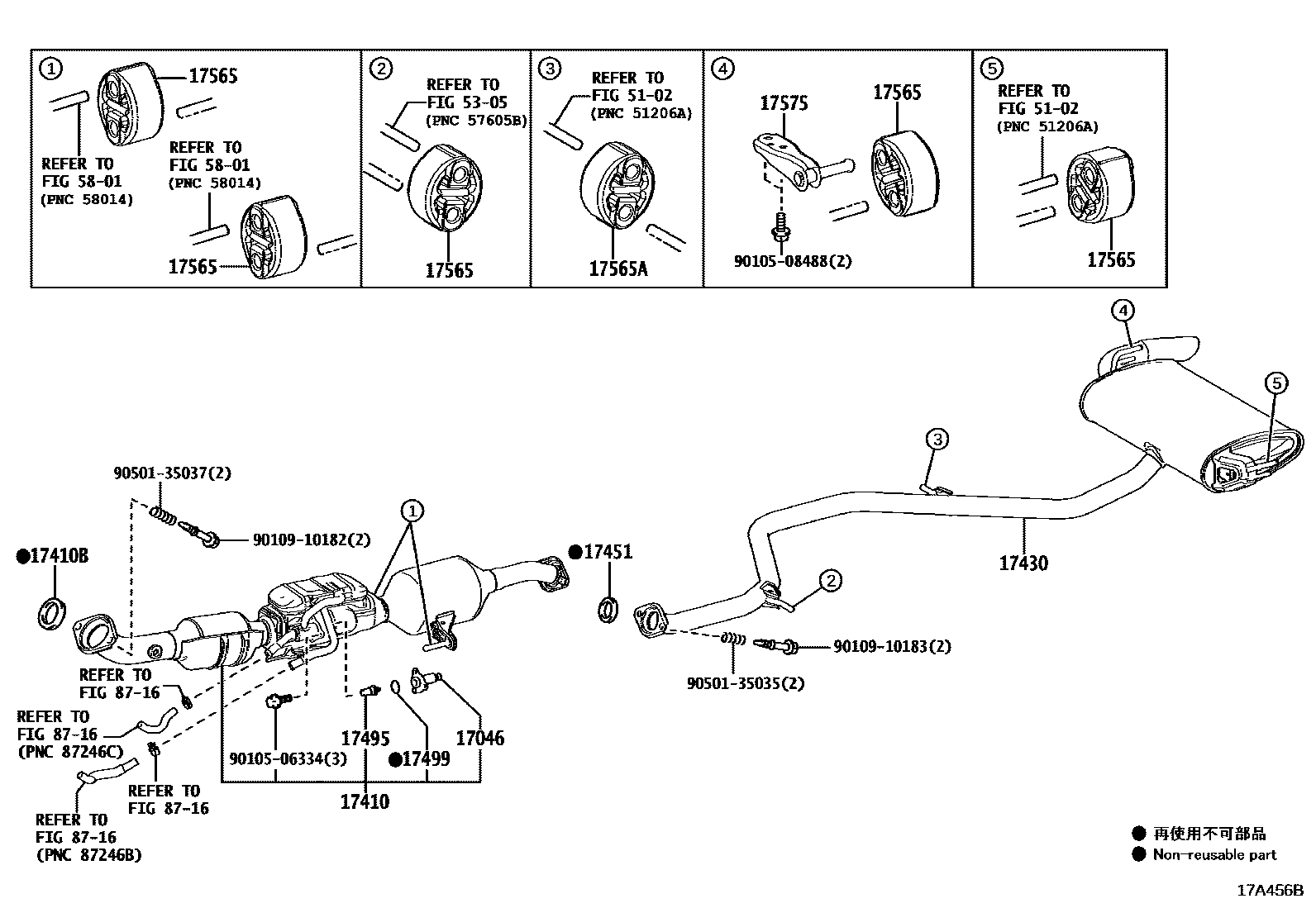

EXHAUST PIPE
17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17410BGASKET, EXHAUST PIPE
sub17451-28041
17430PIPE ASSY, EXHAUST, TAIL
sub17430-37740
sub17430-37750
sub17430-37741
sub17430-37A80
sub17430-37751
sub17430-37752
sub17430-37B00
17451GASKET, EXHAUST PIPE
sub17451-23043
17495ACTUATOR, EXHAUST PIPE GAS CONTROL
17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102
5305
5801
8716
9010506334
main90105-06334
9010508488
main90105-08488
9010910182
main90109-10182
9010910183
main90109-10183
9050135035
main90501-35035
9050135037
main90501-35037
20 parts on this diagram · 3 diagrams in section
