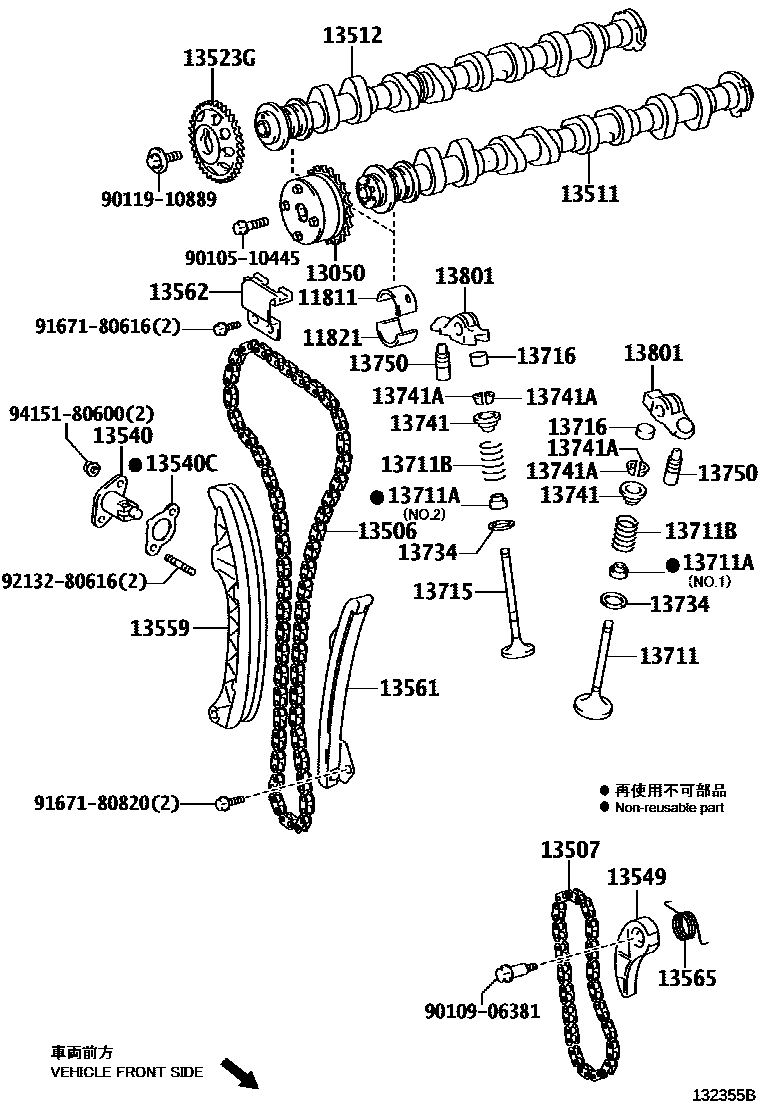

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13523GSPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13565SPRING, CHAIN DAMPER
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010510445
main90105-10445
9010906381
main90109-06381
9011910889
main90119-10889
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
32 parts on this diagram · 1 diagram in section
