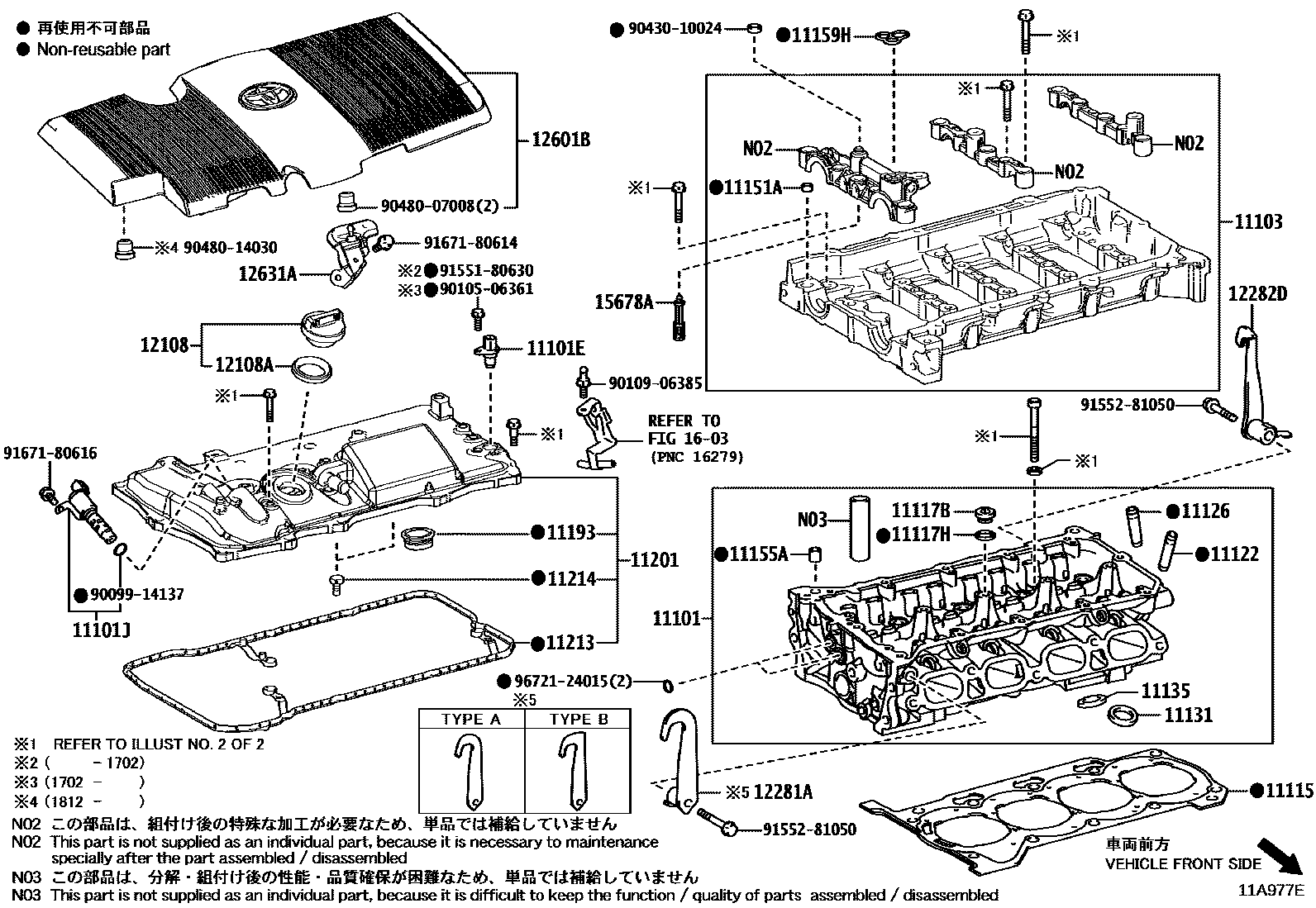

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11103HOUSING SUB-ASSY, CAMSHAFT
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
15678AFILTER, OIL CONTROL VALVE
1603
9009914137
main90099-14137
9010506361
main90105-06361
9010906385
main90109-06385
9043010024
main90430-10024
9048007008
main90480-07008
9048014030
main90480-14030
9155180630
main91551-80630
9155281050
main91552-81050
9167180614
main91671-80614
9167180616
main91671-80616
9672124015
main96721-24015
37 parts on this diagram · 2 diagrams in section
