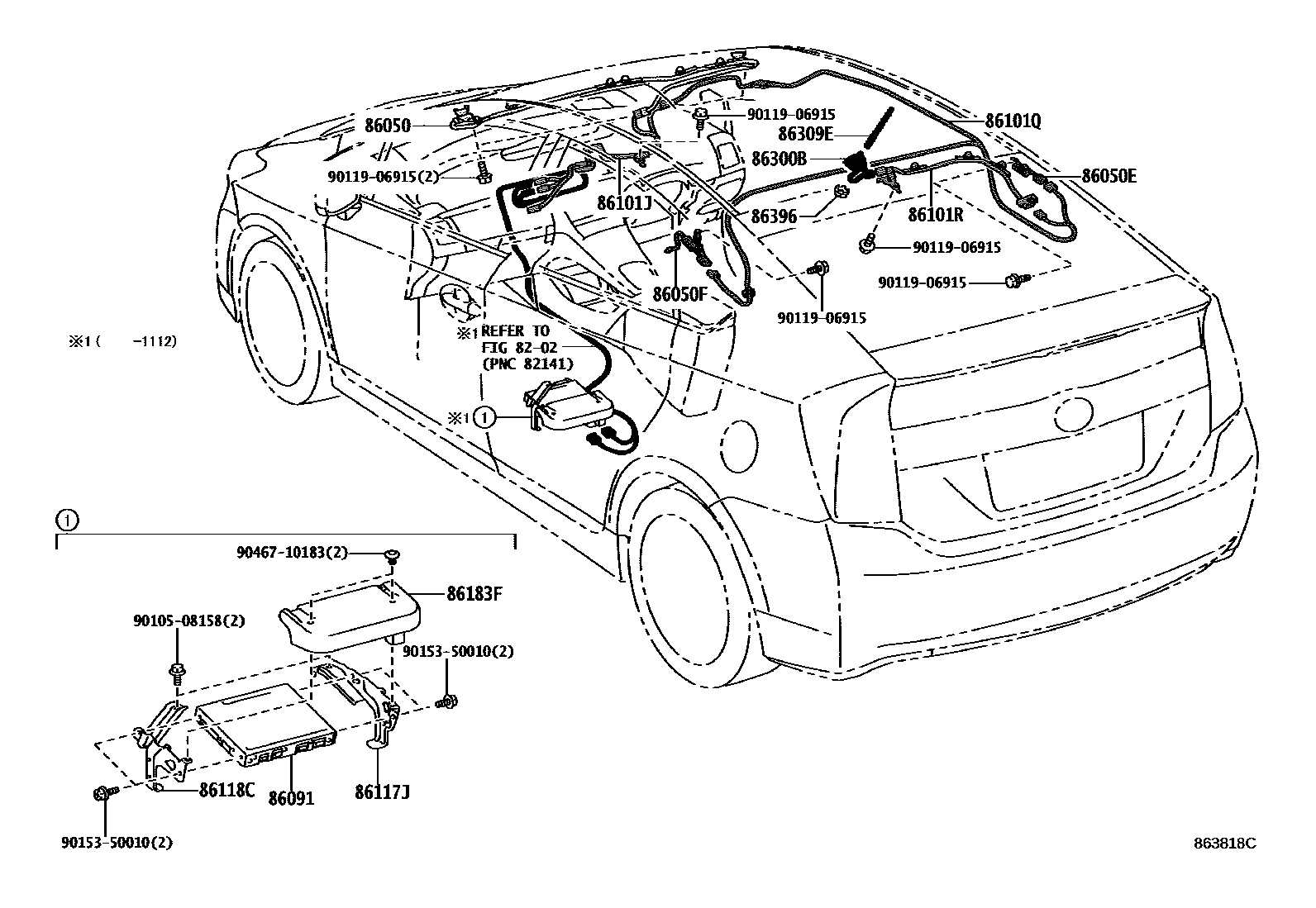

ANTENNA

8202

86050ANTENNA ASSY, TELEVISION

main86050-47020iZVW30..G..CBU201112

main86050-47050iZVW30..G..CBU200904-201112

86050EANTENNA ASSY, TELEVISION

main86050-47030iZVW30..(G,S)..CBU201112

main86050-47060iZVW30..G..CBU200904-201112

86050FANTENNA ASSY, TELEVISION

main86050-47040iZVW30..(G,S)..CBU201112

main86050-47070iZVW30..G..CBU200904-201112

86091PARTS SET, DIGITAL TELEVISION

main86091-30020iZVW30..G..CBU200904-201112

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47150iZVW30..CBU200904-201112

main86101-47840iZVW30..CBU201112

main86101-47170iZVW30..G..CBU200904-201112

main86101-47210iZVW30..(G,S)..CBU201112

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-47200iZVW30..CBU200904-201112

main86101-47850iZVW30..CBU201112

main86101-47260iZVW30..G..CBU200904-201112

main86101-47870iZVW30..(G,S)..CBU201112

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-47320iZVW30..CBU200904-201112

main86101-47860iZVW30..CBU201112

86117JBRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-47020iZVW30..G..CBU200904-201112

86118CBRACKET, MULTI-DISPLAY CONTROLLER, B

main86118-47020iZVW30..G..CBU200904-201112

86183FCOVER, AUDIO AMPLIFIER

main86183-47030iZVW30..G..CBU200904-201112

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-47050iZVW30..CBU200904-201011

main86300-47051iZVW30..CBU201012-201112

main86300-47110iZVW30..CBU201112-201511

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-47010iZVW30..CBU200904-201112

main86309-47060iZVW30..CBU201112-201511

86396NUT, ANTENNA

main86396-30050iZVW30..CBU200904-200908

main86396-47010iZVW30..CBU200909-201112

9010508158

main90105-08158

9011906915

main90119-06915

9015350010

main90153-50010

9046710183

main90467-10183

18 parts on this diagram · 1 diagram in section
