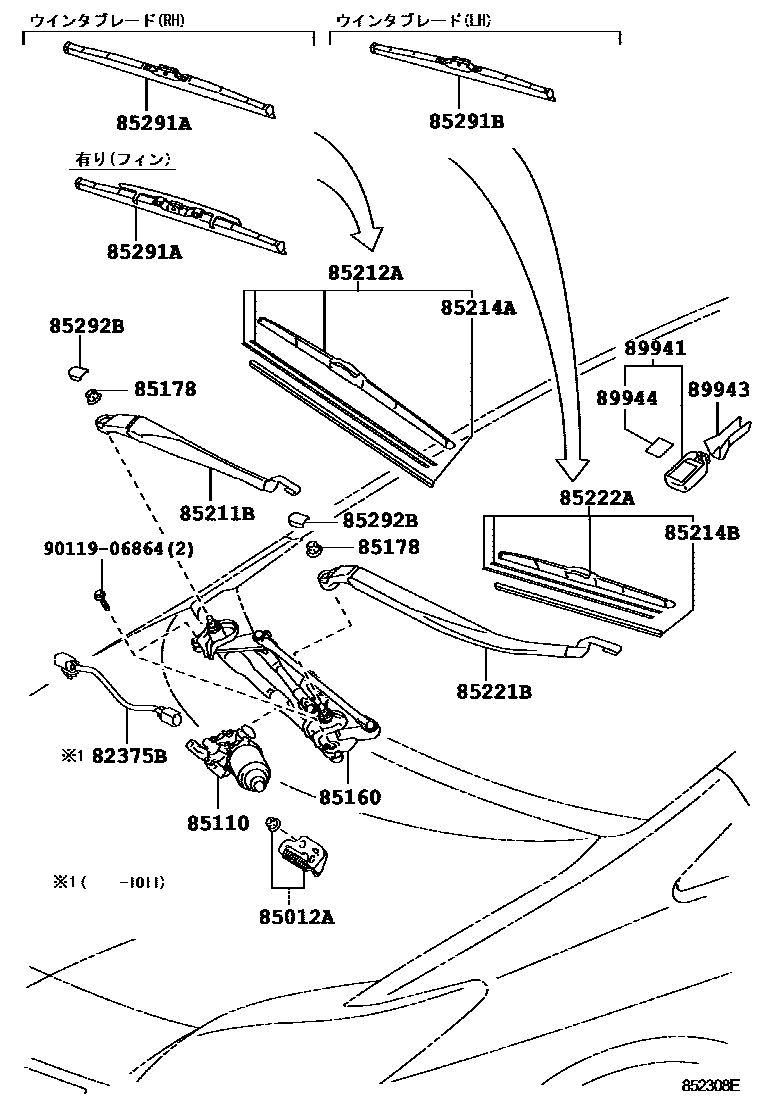

WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-47010iZVW30..CBU200904-201011

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZVW30..CBU201112

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47110supersedes 85110-47100iZVW30..CBU200904-201003

main85110-47200supersedes 85110-47190iZVW30..CBU201003-201112

85160LINK ASSY, WINDSHIELD WIPER

main85150-47120supersedes 85150-47110iZVW30..CBU200904-201011

main85150-47121supersedes 85150-47111iZVW30..CBU201011-201112

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iZVW30..CBU200904-201112

main90182-10006×2iZVW30..CBU201207

85211BARM, FRONT WIPER, RH

main85211-47090iZVW30..CBU200904-201112

85212ABLADE, FR WIPER, RH

main85212-68050iZVW30..CBU200904-201112

85214ARUBBER, WIPER, RH

main85214-68020iZVW30..CBU200904-201112

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-28090iZVW30..CBU200904-201112

85221BARM, FRONT WIPER, LH

main85221-47080iZVW30..CBU200904-201112

85222ABLADE, FR WIPER, LH

main85222-28180iZVW30..CBU200904-201112

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-47040iZVW30..CBU200904-201112

main85291-47050iZVW30..CBU200904-201112

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080iZVW30..CBU200904-201112

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZVW30..CBU200904-201112

89941SENSOR, RAIN

main89941-42010iZVW30..G..CBU201112

89943COVER, RAIN SENSOR

main89943-47010iZVW30..G..CBU201112

89944TAPE, RAIN SENSOR

main89944-42010iZVW30..G..CBU201112

9011906864

main90119-06864

18 parts on this diagram · 1 diagram in section
