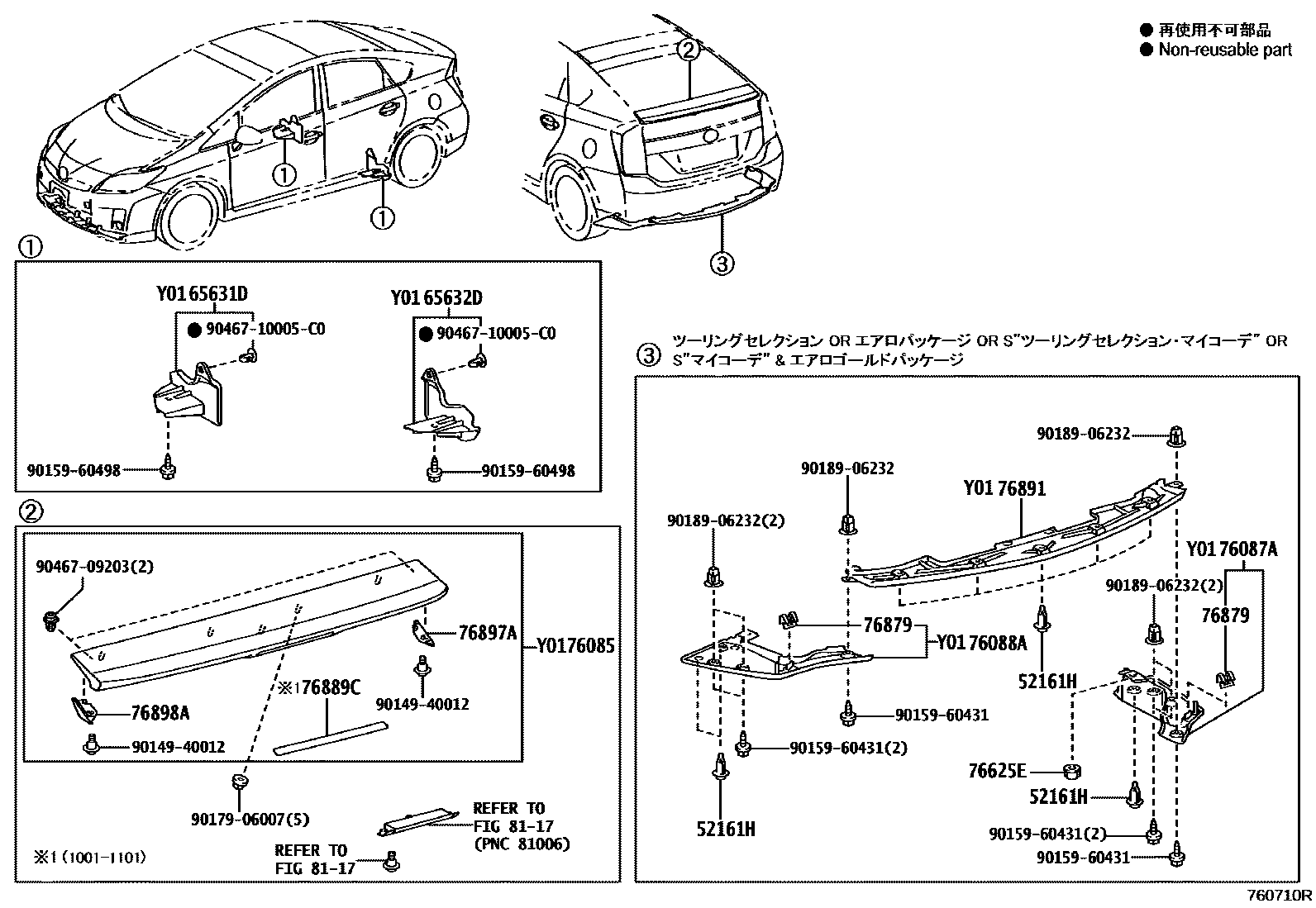

MUDGUARD & SPOILER

52161HPIECE, REAR BUMPER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47041iZVW30..CBU200904-201112

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47041iZVW30..CBU200904-201112

76085SPOILER SUB-ASSY, REAR

main76085-47905iZVW30..CBU200904-200909

sub76085-47907

main76085-47907iZVW30..CBU200910-201101

main76085-47910iZVW30..CBU201101-201112

76087ASPOILER SUB-ASSY, REAR SIDE

76088ASPOILER SUB-ASSY, REAR SIDE

76625ECLIP

76879CLIP, REAR SPOILER, NO.1

main76879-44010

76889CADHESIVE, REAR SPOILER

main76889-47020iZVW30..CBU201001-201101

76891SPOILER, REAR NO.1

main76891-47020

76897ASPOILER,REAR SIDE RH

main76897-47020iZVW30..CBU200904-201112

76898ASPOILER,REAR SIDE LH

main76898-47020iZVW30..CBU200904-201112

8117

9014940012

main90149-40012

9015960431

main90159-60431

9015960498

main90159-60498

9017906007

main90179-06007

9018906232

main90189-06232

9046709203

main90467-09203

9046710005C0

main90467-10005C0

20 parts on this diagram · 1 diagram in section
