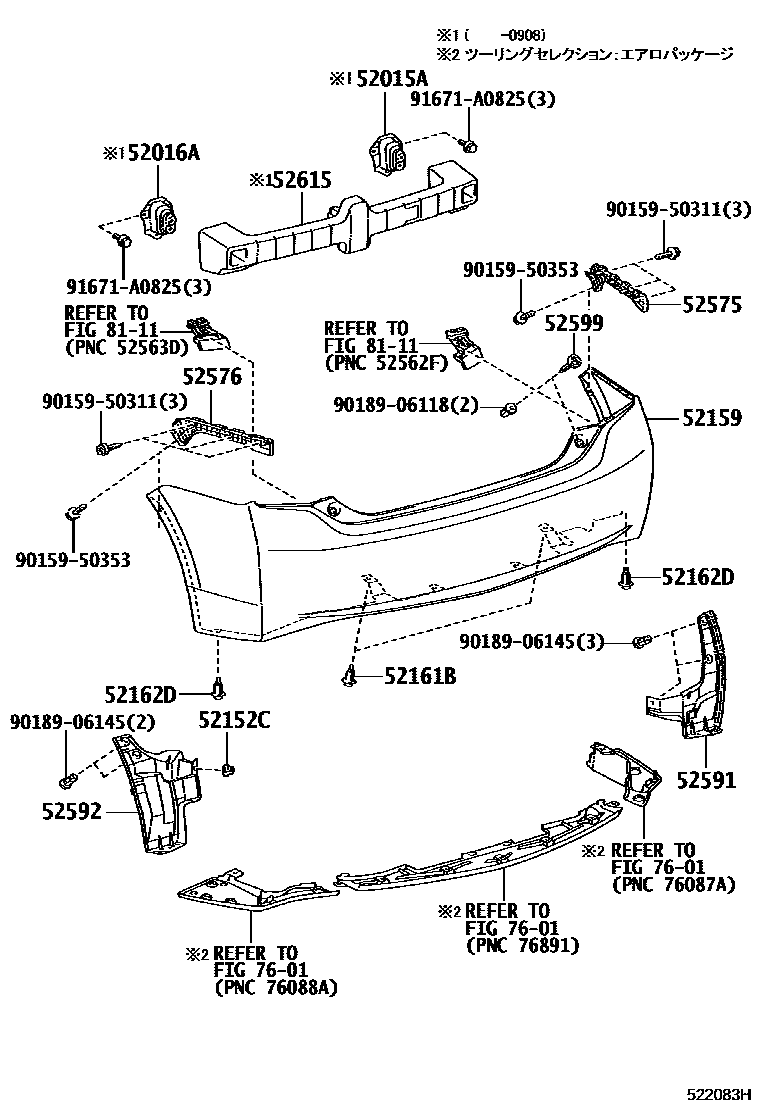

REAR BUMPER & BUMPER STAY

0001 1 0002 1G'S

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47030iZVW30..CBU200904-200908

main52015-47040iZVW30..S..CBU201112

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-47030iZVW30..CBU200904-200908

main52016-47020iZVW30..S..CBU201112

52152CCLIP, REAR BUMPER SIDE

main90467-06121iZVW30..CBU200904-201008

main90467-06206-C0iZVW30..CBU201112-201511

BLACK

52159COVER, REAR BUMPER

main52159-47050-A0iZVW30..CBU201407-201511

SUPER WHITE 2,040

sub52159-47906

main52159-47050-A1iZVW30..CBU200904-201112

WHITE PEARL CS.,070

sub52159-47906

main52159-47050-B0iZVW30..CBU200904-201112

SILVER ME.,1F7

sub52159-47906

main52159-47050-C0iZVW30..CBU201112-201407

BLACK,202

sub52159-47906

main52159-47050-D0iZVW30..CBU200904-201112

RED M.M.,3R3

sub52159-47906

main52159-47050-D1iZVW30..CBU201407-201511

BORDEAUX M.M,3R9

sub52159-47906

main52159-47050-H0iZVW30..CBU200904-201112

AQUA BLUE ME.,783

sub52159-47906

main52159-47050-H1iZVW30..CBU201112-201407

FROSTY GREEN MC.,781

sub52159-47906

main52159-47050-J0iZVW30..CBU200904-201112

DK.BLUE MC.,8T5

sub52159-47906

main52159-47050-J1iZVW30..CBU200904-201112

ICEBERG SILVER M.M.,8V0

sub52159-47906

main52159-47050-K1iZVW30..CBU201112-201407

LT.PURPLE M.M.,9AE

sub52159-47906

main52159-47180-A1iZVW30..CBU201408

sub52159-47906

main52159-47060-A0iZVW30..(G,S)..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-A1iZVW30..G..CBU200904-201112

sub52159-47250

sub52159-47916

main52159-47060-B0iZVW30..G..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-B3supersedes 52159-47050-B1iZVW30..(G,S)..CBU201011-201112

sub52159-47250

sub52159-47916

main52159-47060-B4supersedes 52159-47050-B2iZVW30..(G,S)..CBU201108-201112

sub52159-47250

sub52159-47916

main52159-47060-C0iZVW30..G..CBU201112-201407

sub52159-47250

sub52159-47916

main52159-47060-D0iZVW30..G..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-D2iZVW30..(G,S)..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-E1supersedes 52159-47050-E1iZVW30..S..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-H0iZVW30..(G,S)..CBU200904-201112

sub52159-47250

sub52159-47916

main52159-47060-H1iZVW30..(G,S)..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-J0iZVW30..(G,S)..CBU200904-201112

sub52159-47250

sub52159-47916

main52159-47060-J1iZVW30..(G,S)..CBU200904-201112

sub52159-47250

sub52159-47916

main52159-47060-J5supersedes 52159-47050-J4iZVW30..G..CBU201108-201112

sub52159-47250

sub52159-47916

main52159-47060-J7supersedes 52159-47050-J6iZVW30..S..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-K0supersedes 52159-47050-K0iZVW30..(G,S)..CBU201011-201112

sub52159-47250

sub52159-47916

main52159-47060-K1iZVW30..(G,S)..CBU201407-201511

sub52159-47250

sub52159-47916

main52159-47060-K2supersedes 52159-47050-K2iZVW30..S..CBU201210-201407

sub52159-47250

sub52159-47916

main52159-47090-A0iZVW30..S..CBU201112-201511

sub52159-47961

main52159-47090-A1iZVW30..S..CBU201112-201511

sub52159-47961

main52159-47090-B0iZVW30..S..CBU201112-201511

sub52159-47961

main52159-47090-C0iZVW30..S..CBU201112-201511

sub52159-47961

main52159-47090-D0iZVW30..S..CBU201112-201511

sub52159-47961

main52159-47090-D1iZVW30..S..CBU201112-201511

sub52159-47961

main52159-47190-A1iZVW30..G..CBU201408

sub52159-47916

52161BPIECE, REAR BUMPER

main52161-16010×2iZVW30..CBU201112

52162DPIECE, REAR BUMPER

main52161-16010×2iZVW30..CBU200904-201112

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47020iZVW30..CBU200904-201112

main52575-47021iZVW30..CBU201403

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47020iZVW30..CBU201112-201402

main52576-47021iZVW30..CBU201403

52591SEAL, REAR BUMPER SIDE, RH

main52591-47021iZVW30..CBU201112

52592SEAL, REAR BUMPER SIDE, LH

main52592-47021iZVW30..CBU200904-201112

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iZVW30..CBU200904-201112

52615ABSORBER, REAR BUMPER ENERGY

main52615-47040iZVW30..CBU200904-200908

7601

8111

9015950311

main90159-50311

9015950353

main90159-50353

9018906118

main90189-06118

9018906145

main90189-06145

91671A0825

main91671-A0825

19 parts on this diagram · 2 diagrams in section
