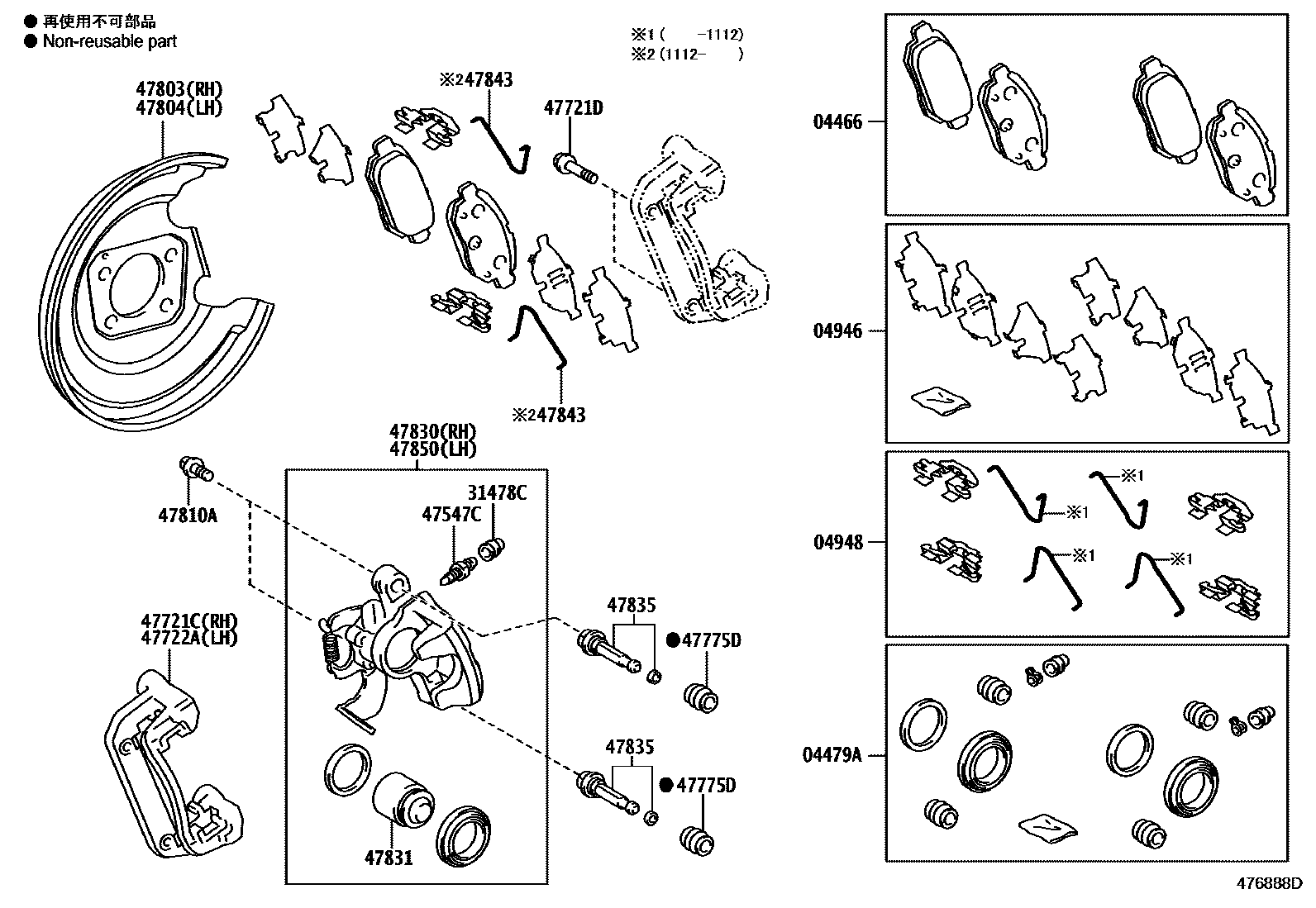

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47020iZVW30..CBU200904-201009

main04466-47030iZVW30..CBU201009-201105

sub04466-76010

main04466-47060iZVW30..CBU201106-201111

main04466-47061iZVW30..CBU201112-201207

sub04466-47080

main04466-47100iZVW30..CBU201207

sub04466-47101

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZVW30..CBU200904-201112

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12090iZVW30..CBU200904-200911

main04946-47070iZVW30..CBU200911-201112

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iZVW30..CBU201112-201511

main04948-47010iZVW30..CBU200904-201112

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iZVW30..CBU200904-201112

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iZVW30..CBU200904-201112

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iZVW30..CBU200904-201112

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404×4iZVW30..CBU201112

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iZVW30..CBU200904-201112

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iZVW30..CBU200904-201112

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12071iZVW30..CBU200904-201112

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12071iZVW30..CBU200904-201112

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iZVW30..CBU200904-201112

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12151iZVW30..CBU200904-201112

47831PISTON, REAR DISC BRAKE

main47831-52050×2iZVW30..CBU200904-201112

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150×4iZVW30..CBU200904-201112

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-47040×4iZVW30..CBU201112-201511

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12151iZVW30..CBU200904-201112

18 parts on this diagram · 1 diagram in section
