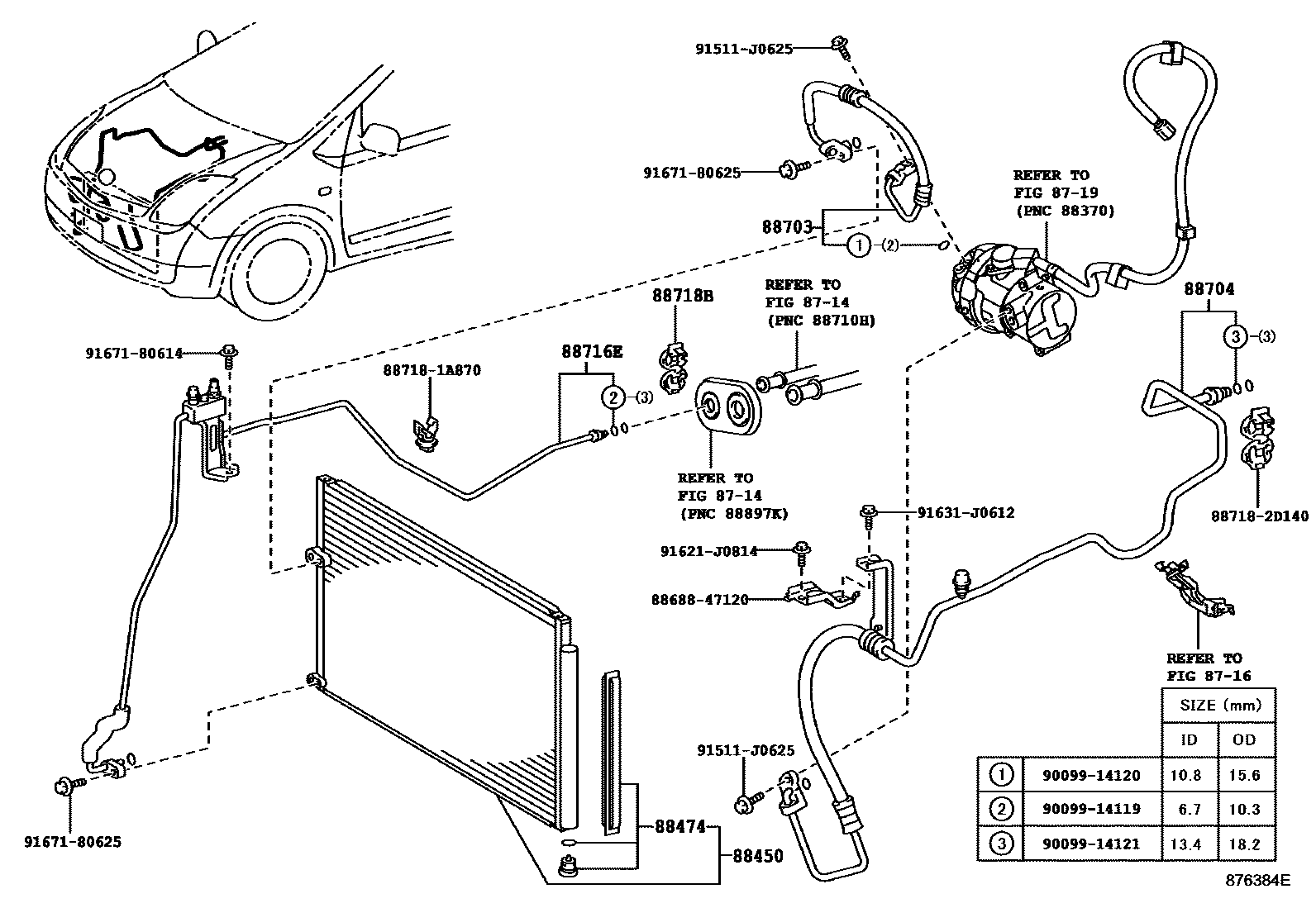

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8716

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-47020iNHW20200308-200511

88474DRYER, COOLER

main88474-17010iNHW20200308-200511

main88474-47020iNHW20200511-201112

88703HOSE SUB-ASSY, DISCHARGE

main88703-47030iNHW20200308-200511

88704HOSE SUB-ASSY, SUCTION

main88704-47030iNHW20200308-200511

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88706-47070iNHW20200308-200511

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-2D150iNHW20200308-200511

8868847120BRACKET, COOLER DIAPHRAGM

main88688-47120

887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A870

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

91511J0625

main91511-J0625

91621J0814

main91621-J0814

91631J0612

main91631-J0612

9167180614

main91671-80614

9167180625

main91671-80625

20 parts on this diagram · 1 diagram in section
