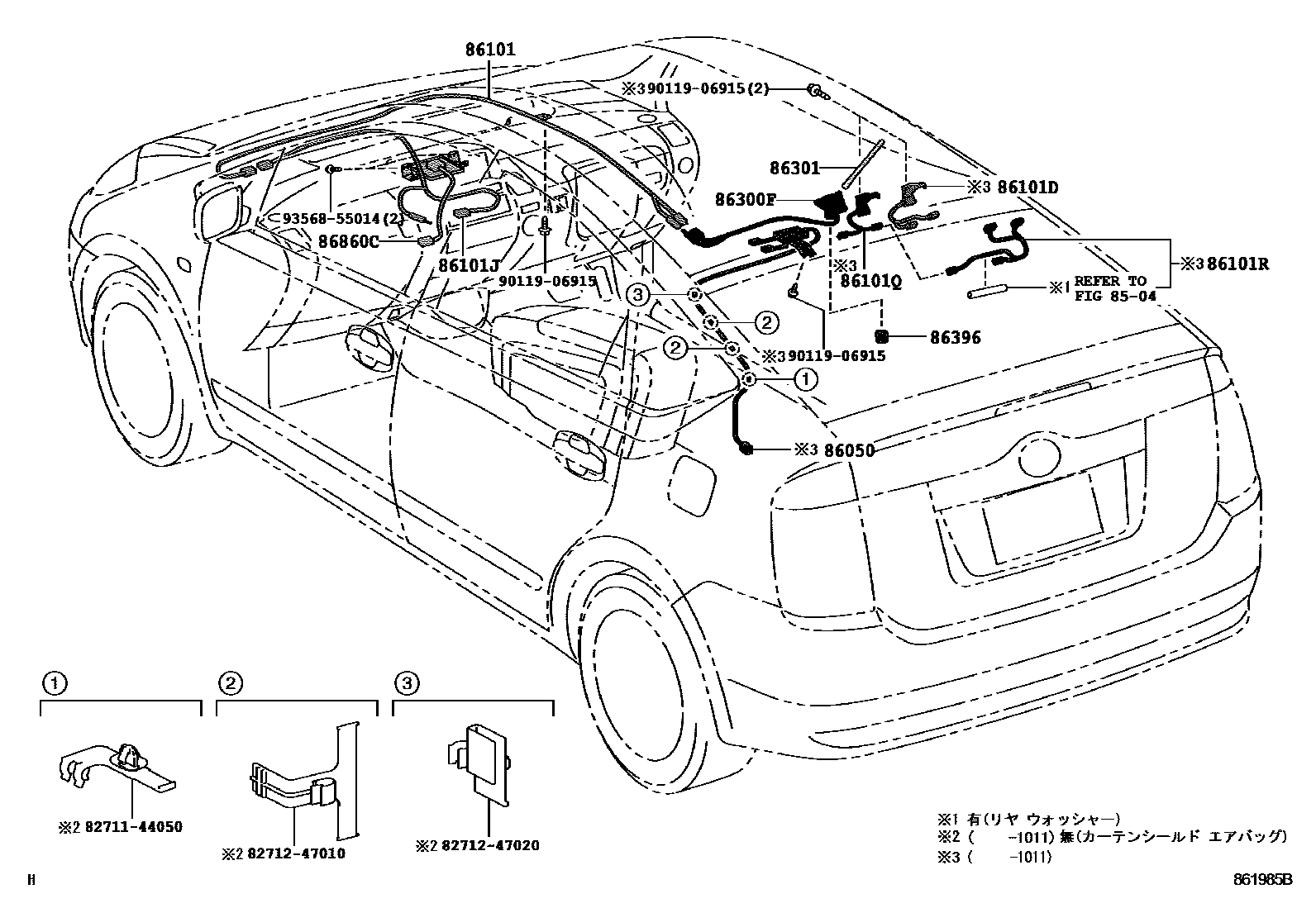

ANTENNA

8504

86050ANTENNA ASSY, TELEVISION

main86050-47010

86101CORD SUB-ASSY, ANTENNA

main86101-47090iNHW20200308-200511

86101DCORD SUB-ASSY, ANTENNA, NO.3

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47100iNHW20200308-200511

sub86101-47110

main86101-47110iNHW20200511

86101QCORD SUB-ASSY, ANTENNA, NO.4

86101RCORD SUB-ASSY, ANTENNA, NO.5

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-47020iNHW20200308-200911

main86300-47100iNHW20200911

86301POLE SUB-ASSY, ANTENNA

main86309-20310iNHW20200308-200911

main86309-42070iNHW20200911

86396NUT, ANTENNA

main86396-20040iNHW20200308-200905

main86396-30050iNHW20200906-200911

main86396-47010iNHW20200911

86860CANTENNA ASSY, NAVIGATION

8271144050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44050

8271247010CLAMP, WIRING HARNESS

main82712-47010

8271247020CLAMP, WIRING HARNESS

main82712-47020

9011906915

main90119-06915

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
