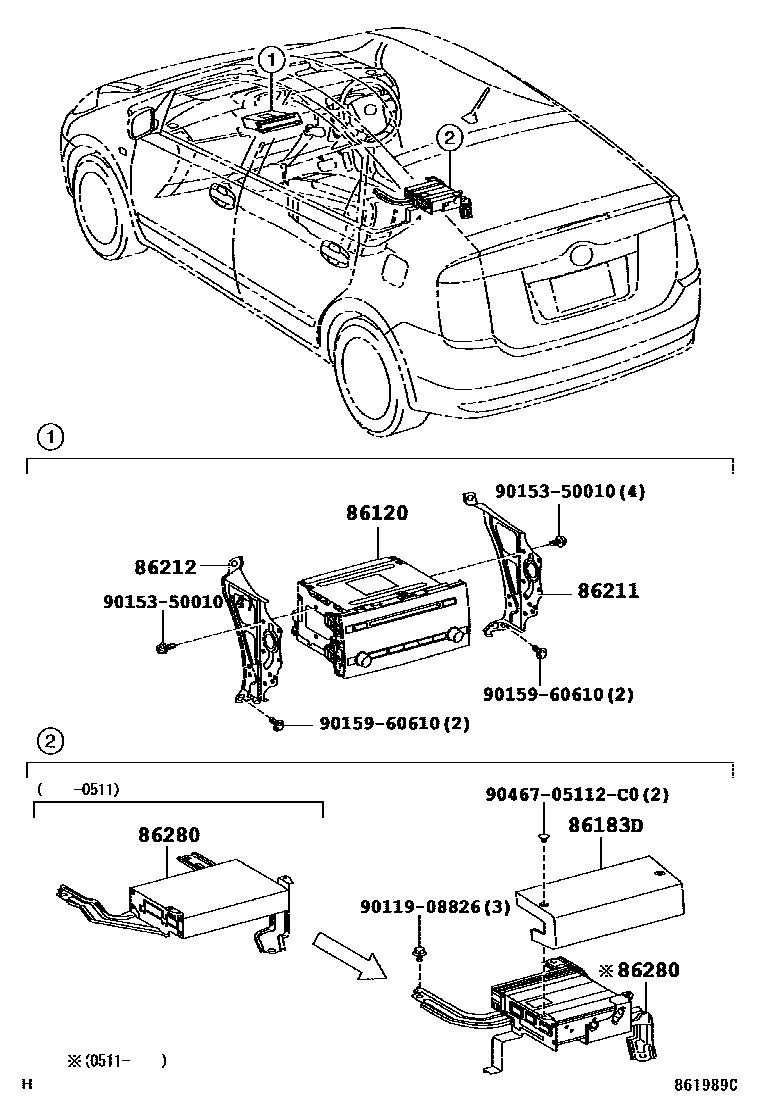

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������- & ��������-

86120RECEIVER ASSY, RADIO

main86120-47060iNHW20200308-200511

main86120-47070iNHW20200308-200511

main86120-47080iNHW20..G200308-200511

main86120-47130iNHW20200308-200511

main86120-47140iNHW20200308-200511

main86120-47150iNHW20..G200308-200511

main86120-47180iNHW20201011

main86120-47180iNHW20..S200511-201011

main86120-47180iNHW20..G200511-200903

main86120-47190iNHW20..G200511-200903

main86120-47250iNHW20..S200511

main86120-47260iNHW20..G200511-200903

86183DCOVER, AUDIO AMPLIFIER

main86183-47010iNHW20..G200308-200511

main86183-47020iNHW20..G200511-200903

86211BRACKET, RADIO, NO.1

main86211-47040iNHW20200308-200511

86212BRACKET, RADIO, NO.2

main86212-47040iNHW20200308-200511

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W240iNHW20..G200308-200511

main86280-0W460iNHW20..G200511-200903

9011908826

main90119-08826

9015350010

main90153-50010

9015960610

main90159-60610

9046705112C0

main90467-05112C0

9 parts on this diagram · 3 diagrams in section
