ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNHW20..G200511-200903

89661COMPUTER, ENGINE CONTROL

main89661-47060iNHW20200308-200407

main89661-47090iNHW20200408-200511

main89661-47130iNHW20200511-200702

main89661-47150iNHW20..G200702-200903

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-47030iNHW20..G200511-200903

main89667-47040iNHW20200308-200407

main89667-47050iNHW20..S200511

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47030iNHW20200308-200511

main89668-47040iNHW20..G200511-200903

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47030iNHW20..G200511-200903

9011906144

main90119-06144

9017906115

main90179-06115

9043012005

main90430-12005

9331915010

main93319-15010

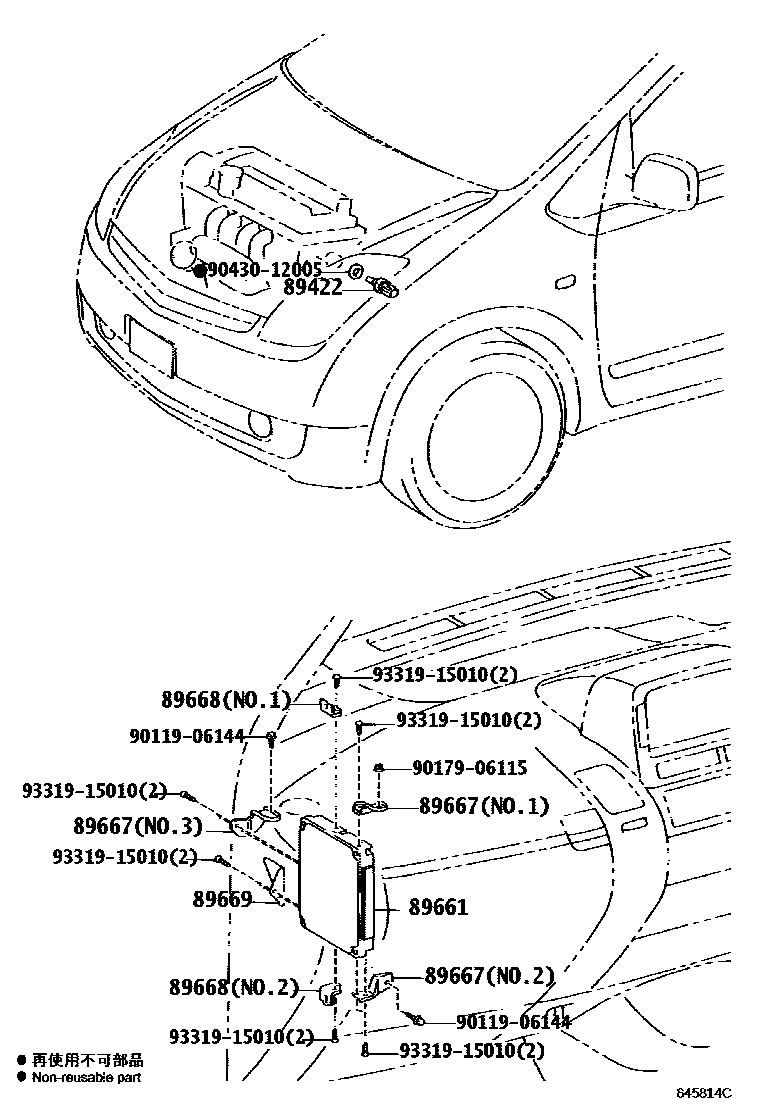

9 parts on this diagram · 1 diagram in section
