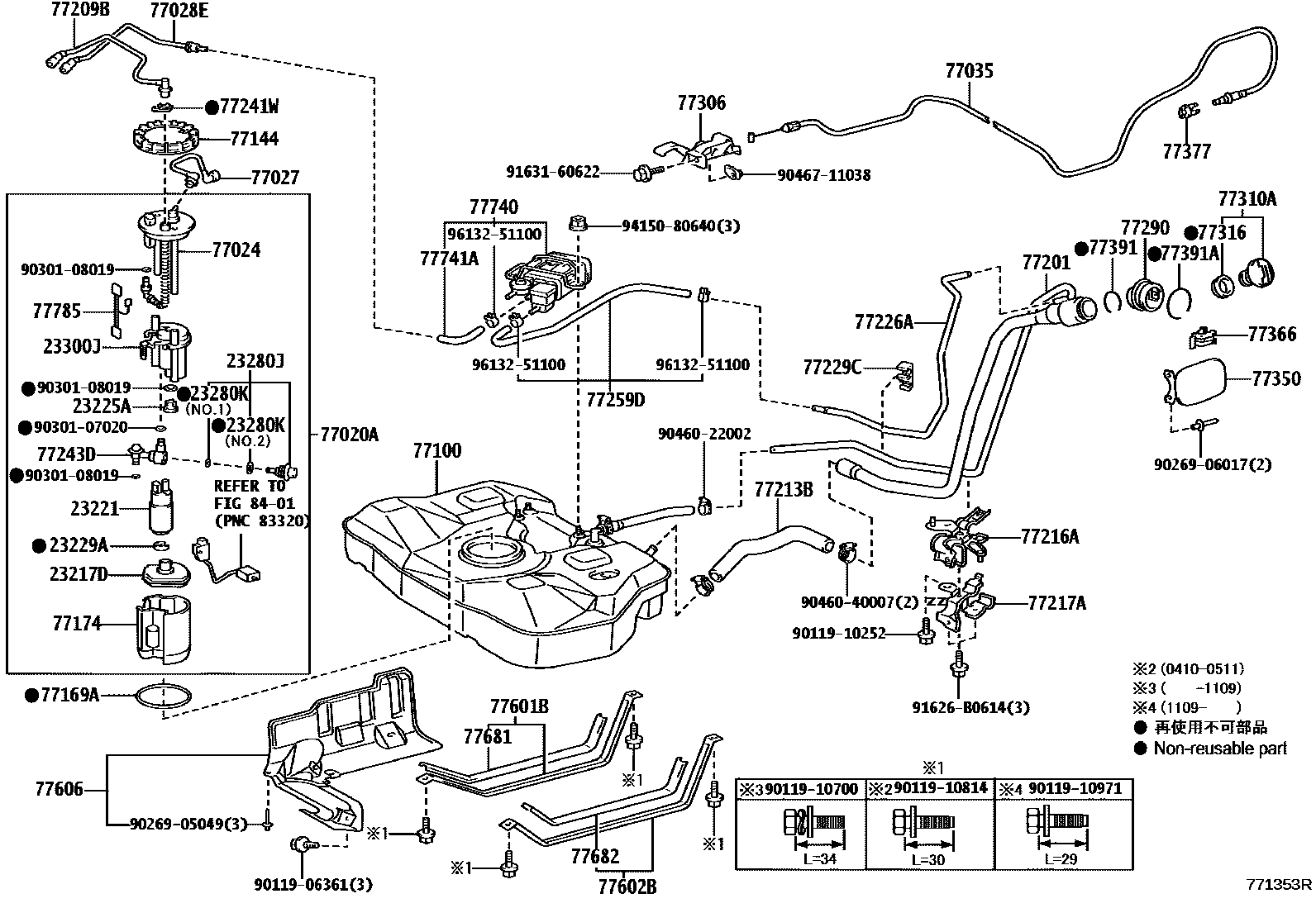

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
sub23221-21170
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77028ETUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77243DJOINT, FUEL TUBE, NO.1
77259DHOSE, FUEL, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77740CANISTER ASSY, CHARCOAL
77741AHOSE, FUEL, (FOR VAPOR FEED)
77785HARNESS, FUEL PUMP
sub77785-48011
8401
9011906361
main90119-06361
9011910252
main90119-10252
9011910700
main90119-10700
9011910814
main90119-10814
9011910971
main90119-10971
9026905049
main90269-05049
9026906017
main90269-06017
9030107020
main90301-07020
9030108019
main90301-08019
9046022002
main90460-22002
9046040007
main90460-40007
9046711038
main90467-11038
91626B0614
main91626-B0614
9163160622
main91631-60622
9415080640
main94150-80640
9613251100
main96132-51100
60 parts on this diagram · 2 diagrams in section
