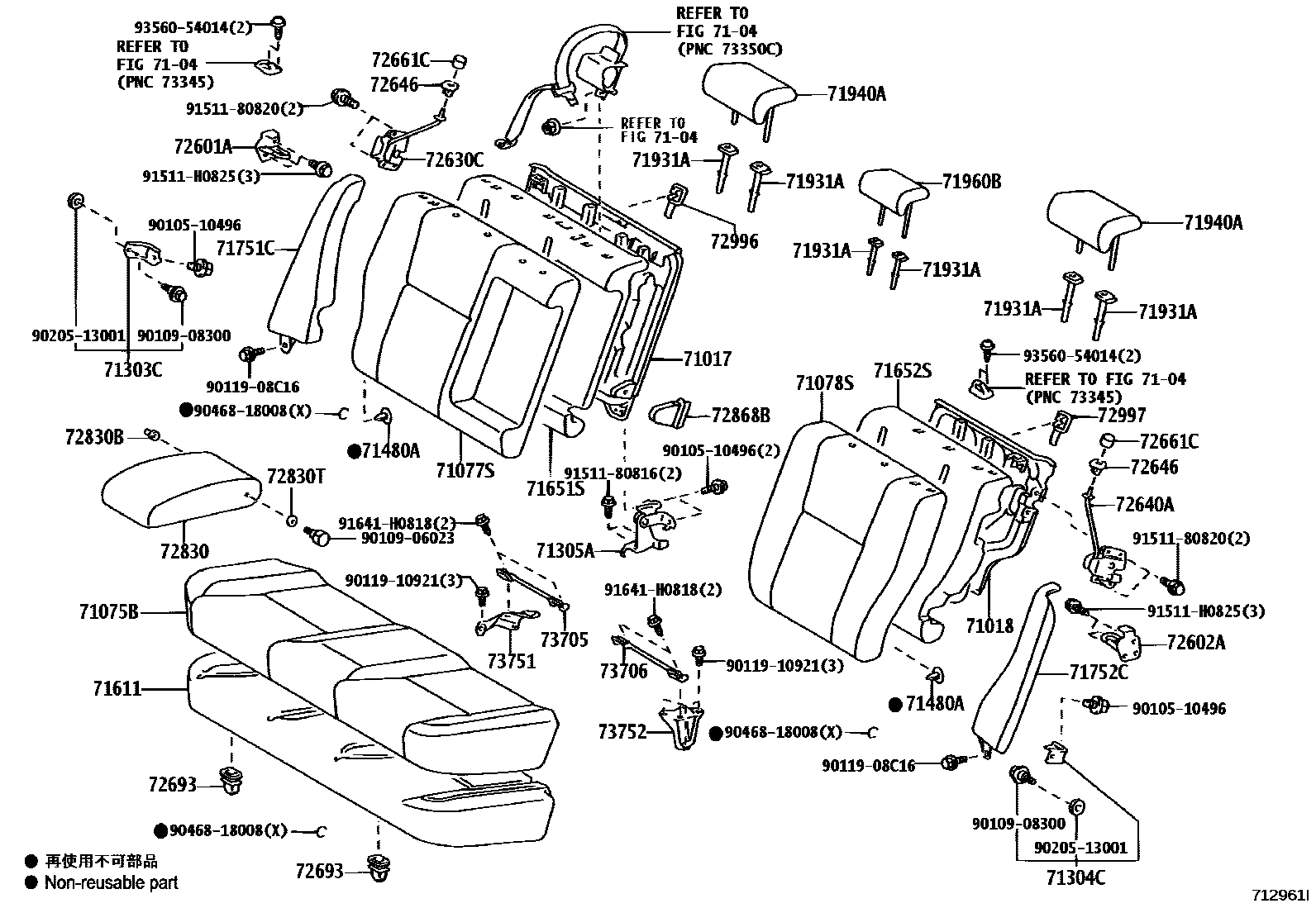

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47070supersedes 71017-47070iNHW20..S200511-200903

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47040supersedes 71018-47040iNHW20..S200511-200903

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47100-B0iNHW20..S200511-200903

sub71075-47101

main71075-47100-E1iNHW20..S200511-200903

sub71075-47101

main71075-47090-B0iNHW20200408-200511

sub71075-47091

main71075-47110-B2supersedes 71075-47120-B2iNHW20..G200511-200903

sub71075-47112

main71075-47110-E1supersedes 71075-47120-E0iNHW20..G200511-200903

sub71075-47112

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47150-B0iNHW20..S200511-200903

sub71077-47151

main71077-47150-E1iNHW20..S200511-200903

sub71077-47151

main71077-47140-B0iNHW20200408-200511

main71077-47180-B2supersedes 71077-47210-B2iNHW20..G200511-200903

sub71077-47182

main71077-47180-E1supersedes 71077-47210-E0iNHW20..G200511-200903

sub71077-47182

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47090-B0iNHW20..S200511-200903

sub71078-47091

main71078-47090-E1iNHW20..S200511-200903

GREGE,TRIM4#

sub71078-47091

main71078-47080-B0iNHW20200408-200511

main71078-47110-B2supersedes 71078-47130-B2iNHW20..G200511-200903

sub71078-47112

main71078-47110-E1supersedes 71078-47130-E0iNHW20..G200511-200903

sub71078-47112

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47010iNHW20200511

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47010iNHW20200308-200511

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47020iNHW20200308-200511

71480ACLIP (FOR REAR SEATBACK)

main90467-11021×18iNHW20..S200511-200903

sub90467-11068

71611PAD, REAR SEAT CUSHION

main71503-47030iNHW20200308-200511

main71503-47040iNHW20200906-201112

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47040iNHW20..S200511-200903

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47040iNHW20..G200511

71751CFRAME, REAR SIDE SEATBACK, RH

main71751-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main71751-47020-E0iNHW20200308-200511

MD.NEUTRAL BONE,TRIM0#

main71751-47021-B4iNHW20..S200511-201112

MD.GRAY,TRIM1#

main71751-47021-E2iNHW20..S200511-200903

main71751-47030-B0iNHW20200408-200511

sub71751-47031

main71751-47030-B1iNHW20200408-200511

sub71751-47031

main71751-47030-E0iNHW20200408-200511

sub71751-47031

main71751-47040-B2supersedes 71751-47030-B3iNHW20..G200511-200903

main71751-47040-E2supersedes 71751-47030-E1iNHW20..G200511-200903

71752CFRAME, REAR SIDE SEATBACK, LH

main71752-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main71752-47020-E0iNHW20200308-200511

MD.NEUTRAL BONE,TRIM0#

main71752-47021-B4iNHW20..S200511-201112

MD.GRAY,TRIM1#

main71752-47021-E2iNHW20..S200511-200903

main71752-47030-B0iNHW20200408-200511

sub71752-47031

main71752-47030-B1iNHW20200408-200511

sub71752-47031

main71752-47030-E0iNHW20200408-200511

sub71752-47031

main71752-47040-B2supersedes 71752-47030-B3iNHW20..G200511-200903

main71752-47040-E2supersedes 71752-47030-E1iNHW20..G200511-200903

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-E1×2iNHW20200511-200706

sub71930-44020

main71930-52030-B7×2iNHW20200906-201112

main71930-52030-E0×2iNHW20200707-200903

main71931-42020-B6×2supersedes 71930-42020-B6iNHW20200906-201112

main71931-42020-E1×2iNHW20200511-200903

main71956-47010-B8iNHW20..S200511-200903

sub71956-02040

main71956-47010-E2iNHW20200511-200903

sub71956-02040

main71970-47010-B7supersedes 71970-47010-B7iNHW20..S200511-200903

sub71970-02040

main71970-47010-E2iNHW20200511-200903

sub71970-02040

71940AHEADREST ASSY, REAR SEAT

main71940-47090-B0×2iNHW20200906-201112

MD.GRAY,TRIM1#

sub71940-47091

main71940-47090-E1×2iNHW20..S200511-200903

GREGE,TRIM4#

sub71940-47091

main71940-47080-B0×2iNHW20200408-200511

main71940-47100-B2×2supersedes 71940-47110-B2iNHW20..G200511-200903

sub71940-47102

main71940-47100-E1×2supersedes 71940-47110-E0iNHW20..G200511-200903

sub71940-47102

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47040-B0iNHW20..S200511-200903

sub71960-47041

main71960-47040-E0iNHW20..S200511-200903

GREGE,TRIM4#

sub71960-47041

main71960-47030-B0iNHW20200408-200511

sub71960-47060

main71960-47050-B2supersedes 71960-47060-B2iNHW20..G200511-200903

sub71960-47052

main71960-47050-E1supersedes 71960-47060-E0iNHW20..G200511-200903

sub71960-47052

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47020iNHW20200308-200511

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47010iNHW20200511

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47020supersedes 72630-47020iNHW20..S200511-200903

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47020supersedes 72640-47020iNHW20..S200511-200903

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33020-B7×2supersedes 72646-33020-B7iNHW20..S200511-200903

MD.GRAY,TRIM1#

main72646-33020-E2×2iNHW20200511-200903

GREGE,TRIM4#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-B7×2supersedes 72661-13030-B7iNHW20..S200511-200903

MD.GRAY,TRIM1#

main72661-13030-E2×2iNHW20200511-200903

GREGE,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNHW20200511

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47050-B0iNHW20..S200511-200903

main72830-47050-E0iNHW20..S200511-200903

main72830-47040-B0iNHW20200408-200511

main72830-47060-B2supersedes 72830-47070-B2iNHW20..G200511-200903

main72830-47060-E1supersedes 72830-47070-E0iNHW20..G200511-200903

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010iNHW20..S200511-200903

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020iNHW20200906

72868BCOVER, CENTER ARMREST HINGE

main72868-47010-B0supersedes 72868-47010-B0iNHW20..S200511-200903

MD.GRAY,TRIM1#

main72868-47010-E0iNHW20200511-200903

GREGE,TRIM4#

72996COVER, REAR SEATBACK, RH

main72996-60110-B0supersedes 72996-60110-B0iNHW20..S200511-200903

MD.GRAY,TRIM1#

main72996-60110-E2iNHW20200511-200903

GREGE,TRIM4#

72997COVER, REAR SEATBACK, LH

main72996-60110-B0supersedes 72996-60110-B0iNHW20200906-201112

MD.GRAY,TRIM1#

main72996-60110-E2iNHW20200511-200903

GREGE,TRIM4#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47010iNHW20200308-200511

main73705-47030iNHW20200511

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47010iNHW20200308-200511

main73706-47030iNHW20200511

73751BRACKET, CRS ANCHOR, RH

main73751-47010iNHW20200308-200511

73752BRACKET, CRS ANCHOR, LH

main73752-47010iNHW20200511

9010510496

main90105-10496

9010906023

main90109-06023

9010908300

main90109-08300

9011908C16

main90119-08C16

9011910921

main90119-10921

9020513001

main90205-13001

9046818008

main90468-18008

9151180816

main91511-80816

9151180820

main91511-80820

91511H0825

main91511-H0825

91641H0818

main91641-H0818

9356054014

main93560-54014

47 parts on this diagram · 1 diagram in section
