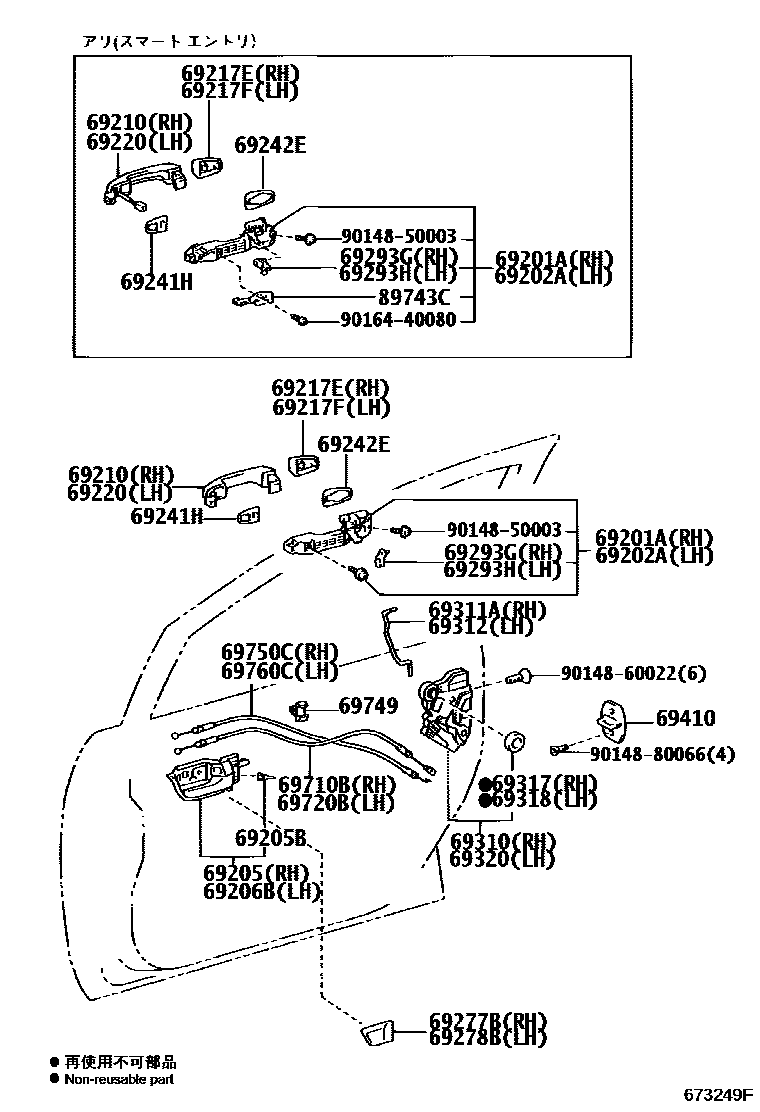

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,18,19
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BRONZE M.M.,4S2
LT.GREEN ME.,6U0
BLUE MC.,8M6
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
BLUE MC.,8M6
BLUE M.M.,8S2
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
sub69217-42010
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,062
WHITE PEARL CS.,070
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
BLUE MC.,8M6
BLUE M.M.,8S2
SILVER ME.,1F7
LT.GREEN ME.,6U0
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BRONZE M.M.,4S2
LT.GREEN ME.,6U0
BLUE MC.,8M6
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
BLACK,202
DK. RED M.M.,3Q3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
BLUE MC.,8M6
BLUE M.M.,8S2
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM0#,18,19
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM0#,18,19
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69317SEAL, FRONT DOOR LOCK HOLE, RH
69318SEAL, FRONT DOOR LOCK HOLE, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016440080
main90164-40080
32 parts on this diagram · 1 diagram in section
