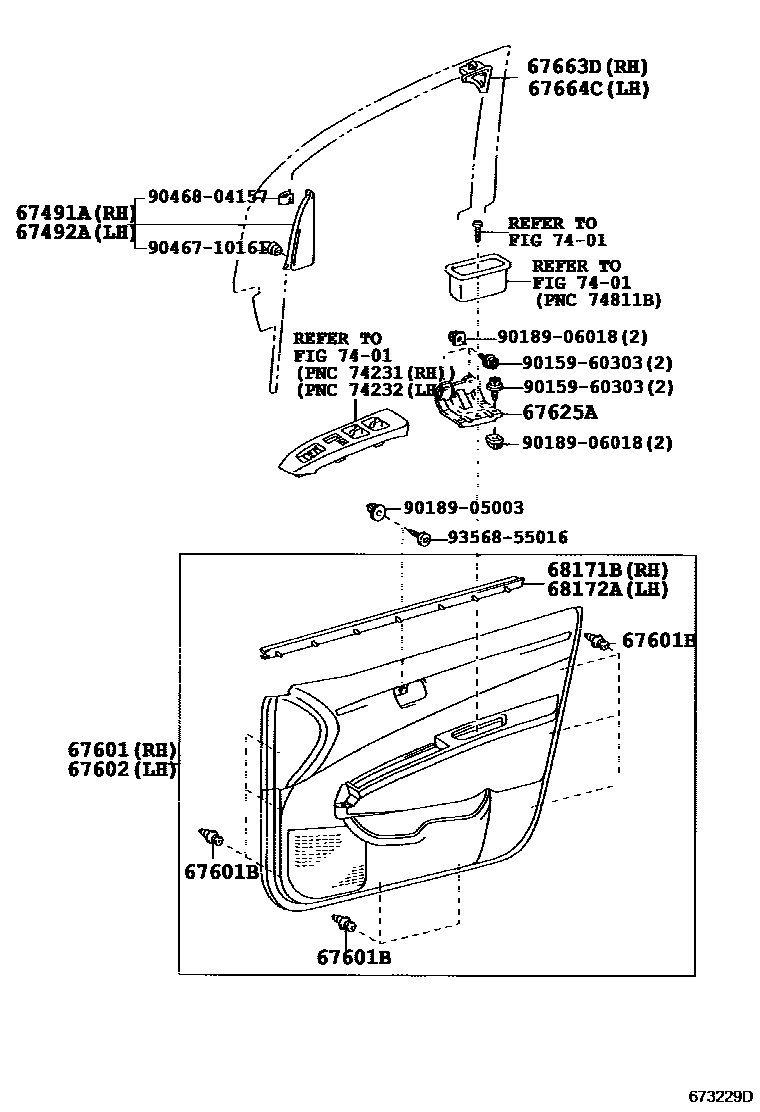

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67625ABRACKET, FRONT DOOR TRIM, NO.1
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
7401
9015960303
main90159-60303
9018905003
main90189-05003
9018906018
main90189-06018
9046710161
main90467-10161
9046804157
main90468-04157
9356855016
main93568-55016
17 parts on this diagram · 2 diagrams in section
