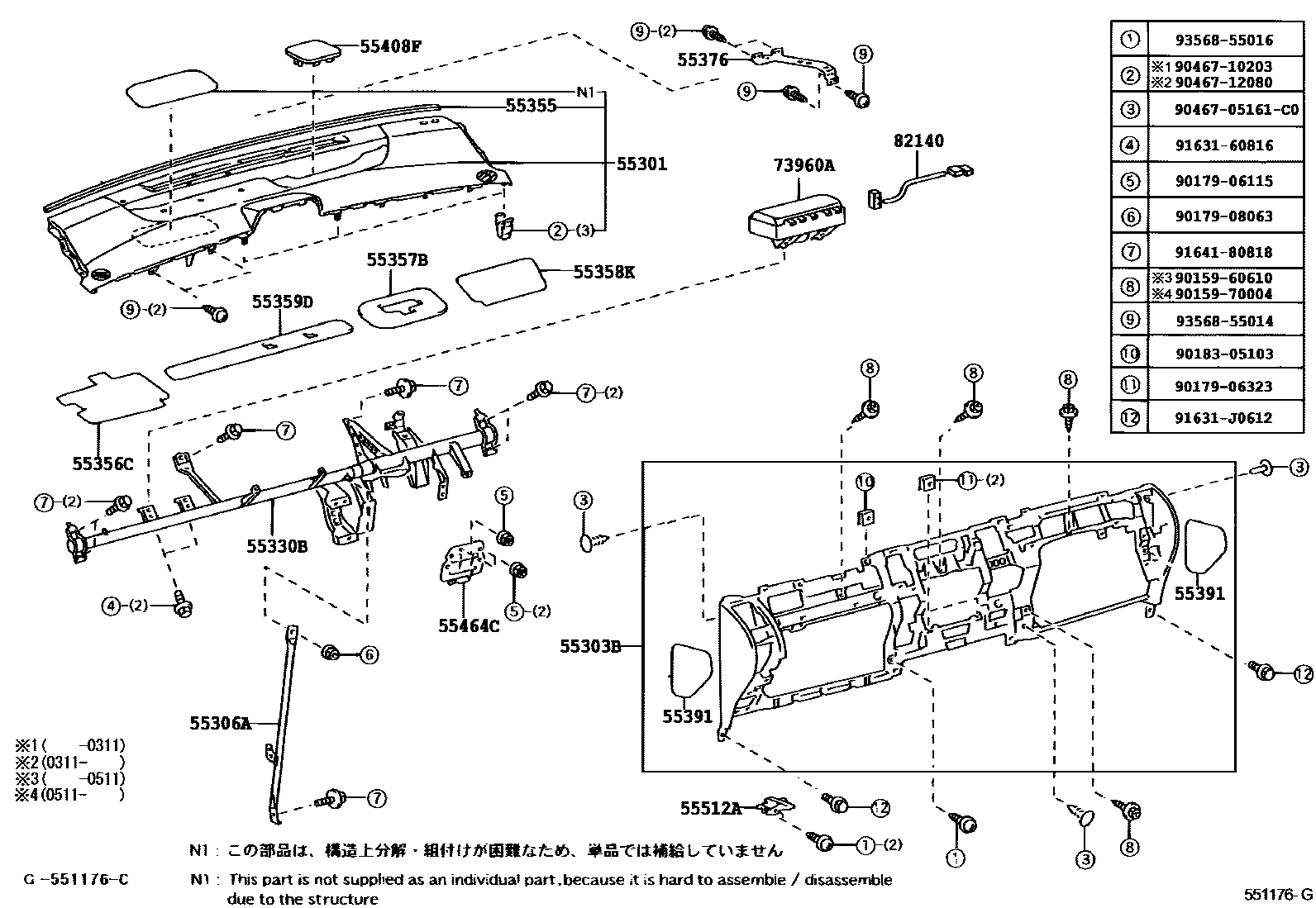

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47010-C0iNHW20200511-201112

BLACK,TRIM1#,4#

main55300-47020-C0iNHW20..G200511-200903

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47010iNHW20200511

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47030iNHW20200308-200511

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47030iNHW20200308-200502

main55330-47031iNHW20200503-200511

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-68010iNHW20200308-200511

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47020iNHW20200308-200511

main55356-47040iNHW20200705

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-47020iNHW20200308-200511

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47030iNHW20200308-200511

main55358-47060iNHW20200705

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-47010iNHW20200308-200511

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-47010iNHW20200308-200511

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-47010×2iNHW20200308-200511

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-47010-C0iNHW20..G200308-200511

55464CINSERT, INSTRUMENT PANEL LOWER PAD, RH

main55464-47010iNHW20200511

55512APLATE, GLOVE COMPARTMENT

main55512-47010iNHW20200511

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47020iNHW20200308-200511

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47020iNHW20200308-200511

9015960610

main90159-60610

9015970004

main90159-70004

9017906115

main90179-06115

9017906323

main90179-06323

9017908063

main90179-08063

9018305103

main90183-05103

9046705161C0

main90467-05161C0

9046710203

main90467-10203

9046712080

main90467-12080

9163160816

main91631-60816

91631J0612

main91631-J0612

9164180818

main91641-80818

9356855014

main93568-55014

9356855016

main93568-55016

30 parts on this diagram · 5 diagrams in section
