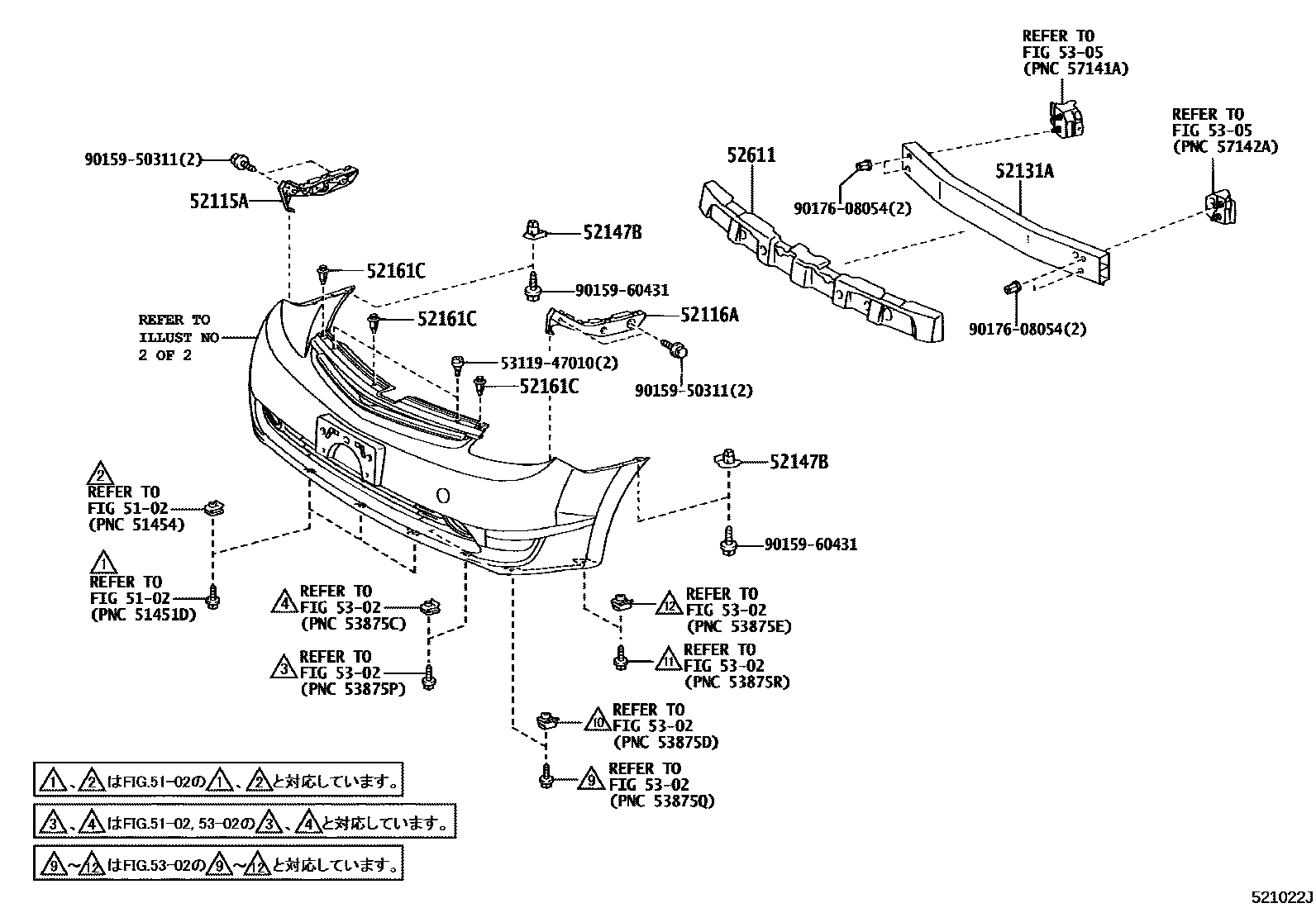

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47010iNHW20200308-200511

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47010iNHW20200308-200511

52131AREINFORCEMENT, FRONT BUMPER

main52131-47050iNHW20200308-201112

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-21010iNHW20200308-200511

52161CPIECE, FRONT BUMPER

main52161-16010iNHW20200308-200511

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47020iNHW20200308-200511

5302

5305

5311947010SUPPORT, RADIATOR GRILLE, SIDE

main53119-47010

9015950311

main90159-50311

9015960431

main90159-60431

9017608054

main90176-08054

13 parts on this diagram · 2 diagrams in section
