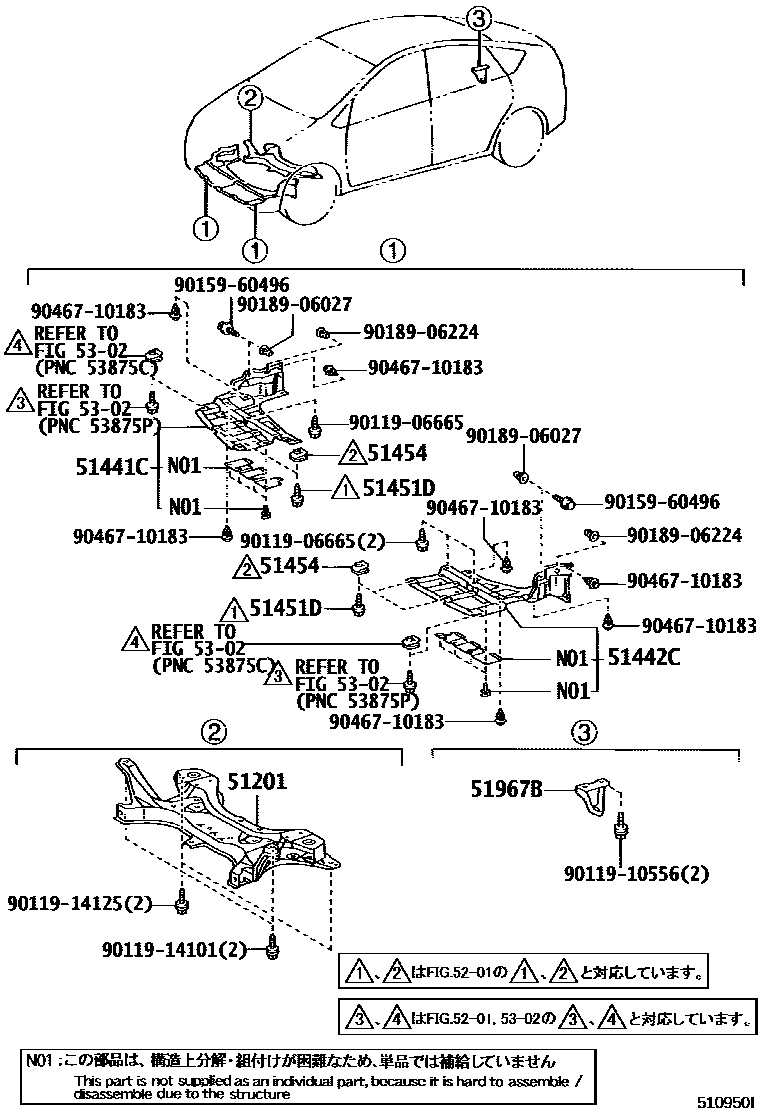

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1��� ����-���-

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47030iNHW20200308-200511

51441CCOVER, ENGINE UNDER, RH

main51408-47010iNHW20200308-200511

main51408-47011iNHW20200511-200512

main51408-47012iNHW20200601

51442CCOVER, ENGINE UNDER, LH

main51409-47010iNHW20200308-200511

main51409-47011iNHW20200511-200512

main51409-47012iNHW20200601

51451DSCREW, NO.1

main90159-60215×3iNHW20200308-200511

51454CLIP

main90467-05114×3iNHW20200308-200511

51967BHOOK, TRANSPORT, REAR RH

main51967-10100iNHW20200308-200511

5302

9011906665

main90119-06665

9011910556

main90119-10556

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

9018906224

main90189-06224

9046710183

main90467-10183

15 parts on this diagram · 2 diagrams in section
