CRANKSHAFT & PISTON

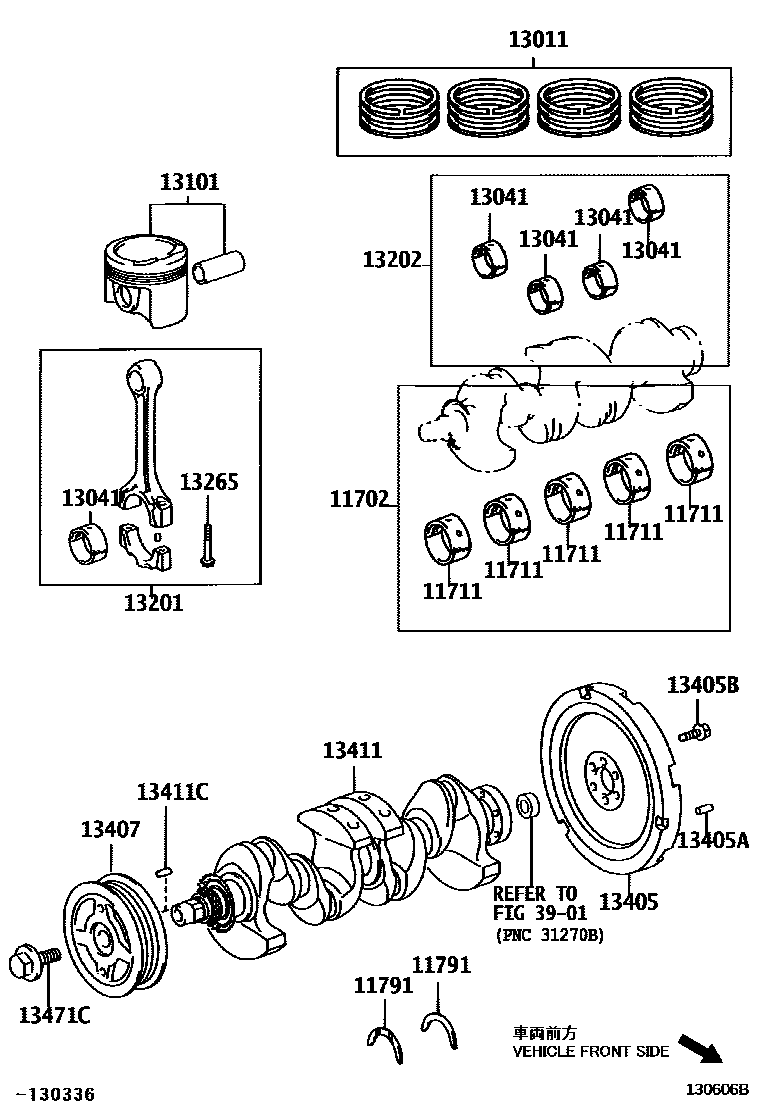

Parts diagram

11702BEARING SET, CRANKSHAFT

main11704-21031i200408-200903

main11704-21040i200308-200408

11711BEARING, CRANKSHAFT

main11701-21031-01i200408-200903

main11701-21031-02i200408-200903

main11701-21031-03i200408-200903

main11701-21031-04i200408-200903

main11701-21040-01i200308-200408

main11701-21040-02i200308-200408

main11701-21040-03i200308-200408

main11701-21040-04i200308-200408

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020i200308-200903

main11791-37010i200408-200511

main11792-21010i200308-200403

main11792-22020i200403-200903

main11793-21010i200308-200403

main11793-22020i200403-200903

13011RING SET, PISTON

main13011-21100i200308-200903

13041BEARING, CONNECTING ROD

main13041-21022-01i200408-200903

main13041-21022-02i200408-200903

main13041-21022-03i200408-200903

main13041-21030-01i200308-200309

main13041-21030-02i200308-200309

main13041-21030-03i200308-200309

main13041-21031-01i200309-200408

main13041-21031-02i200309-200408

main13041-21031-03i200309-200408

13101PISTON SUB-ASSY, W/PIN

main13101-21110i200308-200903

13201ROD SUB-ASSY, CONNECTING

main13201-29095i200308-200403

main13201-29425i200403-200408

main13201-29735i200408-200903

13202BEARING SET, CONNECTING ROD

main13204-21022i200408-200903

main13204-21030i200308-200309

main13204-21031i200309-200408

13265BOLT, CONNECTING ROD

main13265-21020i200308-200903

13405FLYWHEEL SUB-ASSY

main13451-21070i200308-200903

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i200308-200903

13405BBOLT, FLYWHEEL SETTING

main90913-01024i200308-200903

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21040i200308-200903

13411CRANKSHAFT

main13401-21040i200308-200903

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i200308-200903

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i200308-200903

3901

17 parts on this diagram · 1 diagram in section
