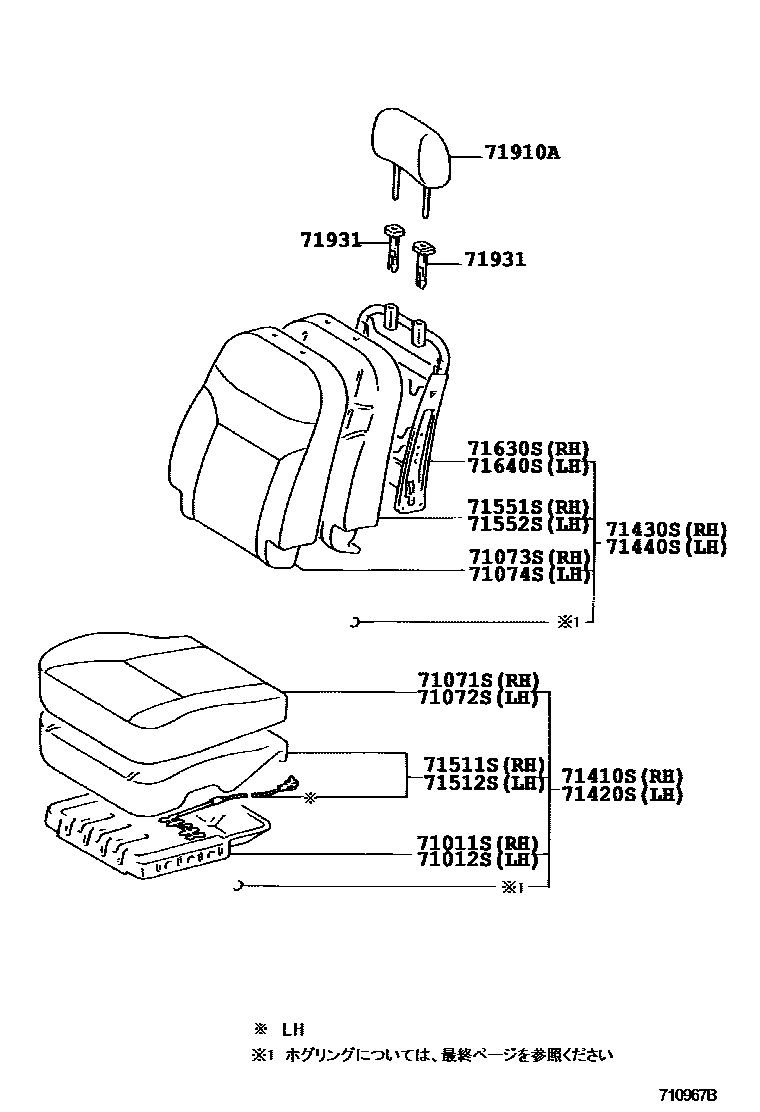

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-47010iNHW10199712-200005

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-47010iNHW10199712-200005

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47010-B0iNHW10199712-200005

main71071-47010-B1iNHW10199712-200005

main71071-47020-B0iNHW10199811-200005

main71071-47030-B1iNHW11..G200005-200208

AMETHYST,TRIM9#

main71071-47040-B0iNHW11..S200005

LT. AMETHYST,TRIM9#

main71071-47080-B0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71071-47080-B0iNHW11..G200208

AMETHYST,TRIM9#

main71071-47080-B0iNHW11..S200012-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-47050-B1iNHW11..G200005-200208

AMETHYST,TRIM9#

main71071-47090-B0iNHW11..S200012-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

main71071-47090-B0iNHW11..G200208

AMETHYST,TRIM9#

main71071-47090-B0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71072-47010-B0iNHW10199712-200005

main71072-47010-B1iNHW10199712-200005

main71072-47020-B0iNHW10199811-200005

main71072-47060-B0iNHW11..S200005

LT. AMETHYST,TRIM9#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47020-B0iNHW10199712-200005

main71073-47020-B1iNHW10199712-200005

main71073-47030-B0iNHW10199811-200005

main71073-47040-B1iNHW11..G200005-200110

AMETHYST,TRIM9#

main71073-47041-B1iNHW11..G200110-200208

AMETHYST,TRIM9#

main71073-47050-B0iNHW11..S200005-200110

LT. AMETHYST,TRIM9#

main71073-47051-B0iNHW11..S200110

LT. AMETHYST,TRIM9#

main71073-47070-B0iNHW11..S200012-200110

PREMIUM 21 *(C),AMETHYST,TRIM95

main71073-47071-B0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71073-47071-B0iNHW11..S200110-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

main71073-47071-B0iNHW11..G200208

AMETHYST,TRIM9#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-47020-B0iNHW10199712-200005

main71073-47020-B1iNHW10199712-200005

main71073-47030-B0iNHW10199811-200005

main71073-47040-B1iNHW11..G200005-200110

AMETHYST,TRIM9#

main71073-47041-B1iNHW11..G200110-200208

AMETHYST,TRIM9#

main71073-47050-B0iNHW11..S200005-200110

LT. AMETHYST,TRIM9#

main71073-47051-B0iNHW11..S200110

LT. AMETHYST,TRIM9#

main71073-47070-B0iNHW11..S200012-200110

PREMIUM 21 *(C),AMETHYST,TRIM95

main71073-47071-B0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71073-47071-B0iNHW11..S200110-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

main71073-47071-B0iNHW11..G200208

AMETHYST,TRIM9#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-47010-B0iNHW10199712-200005

main71410-47010-B1iNHW10199712-200005

main71410-47020-B0iNHW10199811-200005

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-47010-B0iNHW10199712-200005

main71420-47010-B1iNHW10199712-200005

main71420-47020-B0iNHW10199811-200005

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-47020-B0iNHW10199712-200005

main71430-47020-B1iNHW10199712-200005

main71430-47030-B0iNHW10199811-200005

main71430-47040-K0iNHW11..G200005-200110

***,AMETHYST,TRIM9#

main71430-47041-K0iNHW11..G200110-200208

***,AMETHYST,TRIM9#

main71430-47050-K0iNHW11..S200005-200110

***,AMETHYST,TRIM9#

main71430-47051-K0iNHW11..S200110

***,AMETHYST,TRIM9#

main71430-47070-K0iNHW11..S200012-200110

PREMIUM 21 *(C),AMETHYST,TRIM95

main71430-47071-K0iNHW11..S200110-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

main71430-47071-K0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71430-47071-K0iNHW11..G200208

***,AMETHYST,TRIM9#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-47020-B0iNHW10199712-200005

main71430-47020-B1iNHW10199712-200005

main71430-47030-B0iNHW10199811-200005

main71430-47040-K0iNHW11..G200005-200110

***,AMETHYST,TRIM9#

main71430-47041-K0iNHW11..G200110-200208

***,AMETHYST,TRIM9#

main71430-47050-K0iNHW11..S200005-200110

***,AMETHYST,TRIM9#

main71430-47051-K0iNHW11..S200110

***,AMETHYST,TRIM9#

main71430-47070-K0iNHW11..S200012-200110

PREMIUM 21 *(C),AMETHYST,TRIM95

main71430-47071-K0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71430-47071-K0iNHW11..S200110-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

main71430-47071-K0iNHW11..G200208

***,AMETHYST,TRIM9#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-47010iNHW10199712-200005

main71511-47020iNHW11200005

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-47010iNHW10199712-200005

main71052-47020iNHW11200005

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47020iNHW10199712-200005

main71551-47030iNHW11200005

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-47020iNHW10199712-200005

main71551-47030iNHW11200005

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-47010iNHW11200005-200110

main71630-47020iNHW10199712-200005

main71630-63030iNHW11200110

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-47010iNHW11200005-200110

main71630-47020iNHW10199712-200005

main71630-63030iNHW11200110

71910AHEADREST ASSY, FRONT SEAT

main71910-47010-B0iNHW10199901-200005

main71910-47010-B0iNHW10199712-200005

main71910-47010-K0iNHW10199712-200005

main71910-47010-K0iNHW10199901-200005

main71910-47020-B0iNHW11..S200201-200212

PREMIUM *(D),AMETHYST,TRIM95

main71910-47020-B0iNHW11..G200208

main71910-47020-B0iNHW10199811-200005

main71910-47020-B0iNHW11..S200012-200112

PREMIUM 21 *(C),AMETHYST,TRIM95

main71910-47030-B1iNHW11..G200005-200208

main71910-47040-B0iNHW11..S200005

71931SUPPORT, FRONT SEAT HEADREST

main71930-28040-B6iNHW10199712-199811

sub71930-60030

sub71930-28040

main71930-28040-B6iNHW10199901-200005

sub71930-60030

sub71930-28040

main71930-28040-B6iNHW10199811-200005

sub71930-60030

sub71930-28040

main71930-47010-B0iNHW11200005

sub71930-47010

sub71930-44020

main71931-28050-B6iNHW10199811-200005

sub71931-28050

main71931-28050-B6iNHW10199712-199811

sub71931-28050

main71931-28050-B6iNHW10199901-200005

sub71931-28050

main71931-47010-B0iNHW11200005

sub71931-47010

sub71931-42020
