FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-47010iNHW1#199712

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-47010iNHW1#199712

67495BCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-47010iNHW1#199712

67496BCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-47010iNHW1#199712

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-47010-B0iNHW10199712-200005

main67610-47010-B1iNHW10199712-200005

main67610-47020-B0iNHW10199811-200005

main67610-47030-K0iNHW11..G200005-200208

AMETHYST,TRIM9#

main67610-47050-K0iNHW11..S200005

AMETHYST,TRIM9#

main67610-47060-K0iNHW11..S200201-200212

PREMIUM *(D),LT.AMETHYST,TRIM95

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-P3×2iNHW11200005

LT. AMETHYST,TRIM9#

67601HRETAINER, DOOR TRIM, RH

main67771-12030iNHW10199712-199812

main67771-12050×8iNHW1#..G,N199712

main67771-32120iNHW1#199812

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-47010-B0iNHW10199712-200005

main67620-47010-B1iNHW10199712-200005

main67620-47020-B0iNHW10199811-200005

main67620-47030-K0iNHW11..G200005-200208

AMETHYST,TRIM9#

main67620-47050-K0iNHW11..S200005

AMETHYST,TRIM9#

main67620-47060-K0iNHW11..S200201-200212

PREMIUM *(D),LT.AMETHYST,TRIM95

67602ARETAINER, DOOR TRIM, LH

main67771-12030iNHW10199712-199812

main67771-12050×8iNHW1#199712

main67771-32120iNHW1#199812

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-44010×2iNHW10199712-200005

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-47010iNHW1#199712

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-47010iNHW1#199712

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9016460008

main90164-60008

9018906018

main90189-06018

9046709141

main90467-09141

9354054014

main93540-54014

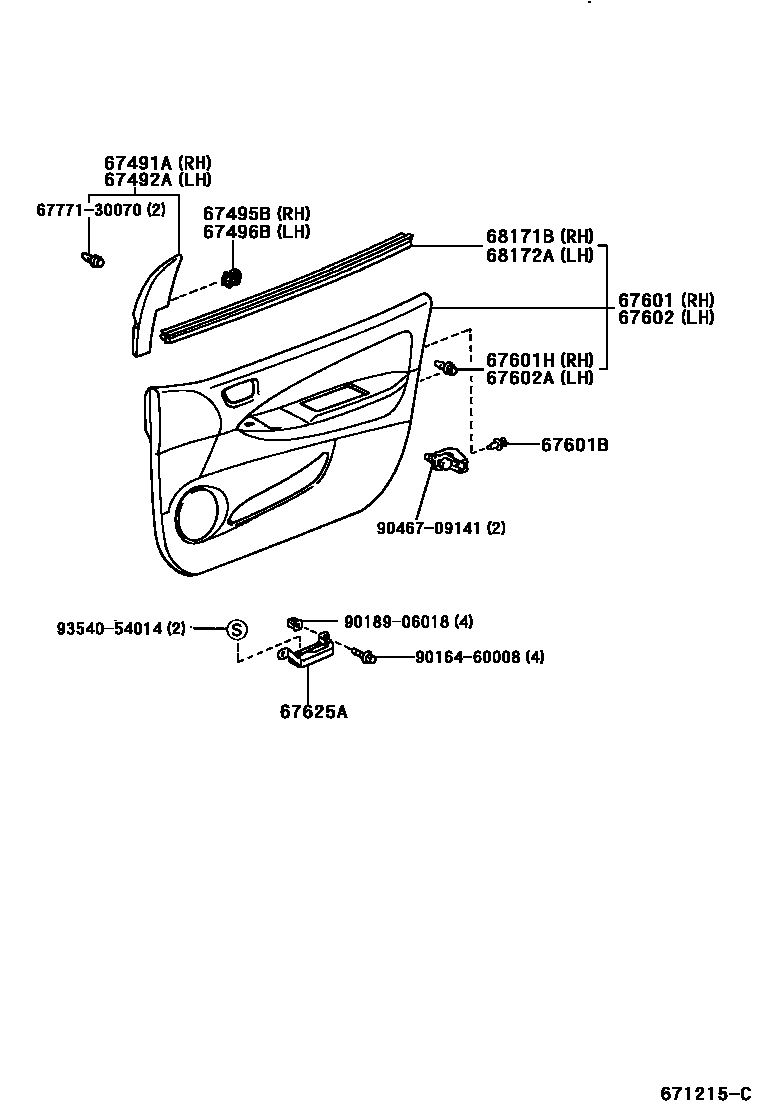

17 parts on this diagram · 3 diagrams in section
