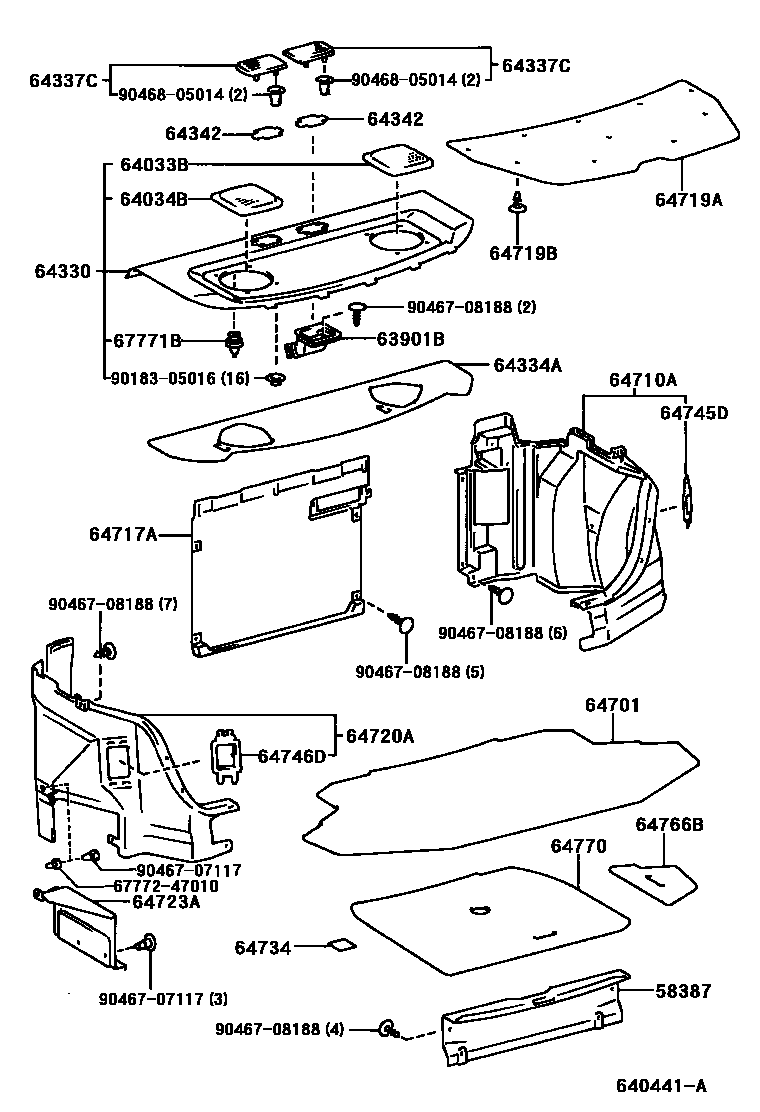

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
SHADOW GRAY,TRIM13,19
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
AMETHYST,TRIM13,19
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
AMETHYST,TRIM13,19
64330PANEL ASSY, PACKAGE TRAY TRIM
AMETHYST,TRIM13,19
AMETHYST,TRIM1#,13,19
AMETHYST,TRIM1#,13,19
AMETHYST,TRIM9#
64334APAD, PACKAGE TRAY TRIM
64337CGARNISH, PACKAGE TRAY TRIM
AMETHYST,TRIM13,19
AMETHYST,TRIM1#,13,19
AMETHYST,TRIM1#,13,19
64342COVER, PACKAGE TRAY TRIM, UNDER
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
SHADOW GRAY,TRIM13,19
SHADOW GRAY,TRIM9#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
SHADOW GRAY,TRIM13,19
SHADOW GRAY,TRIM9#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
SHADOW GRAY,TRIM9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
SHADOW GRAY,TRIM13,19
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
SHADOW GRAY,TRIM13,19
SHADOW GRAY,TRIM9#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
SHADOW GRAY,TRIM13,19
64734INSULATOR, LUGGAGE COMPARTMENT FLOOR, NO.2
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
SHADOW GRAY,TRIM13,19
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
SHADOW GRAY,TRIM13,19
64766BCOVER, QUARTER TRIM JACK
64770COVER ASSY, SPARE WHEEL
67771BRETAINER, PACKAGE TRAY TRIM
6777247010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-47010
9018305016
main90183-05016
9046707117
main90467-07117
9046708188
main90467-08188
9046805014
main90468-05014
26 parts on this diagram · 2 diagrams in section
