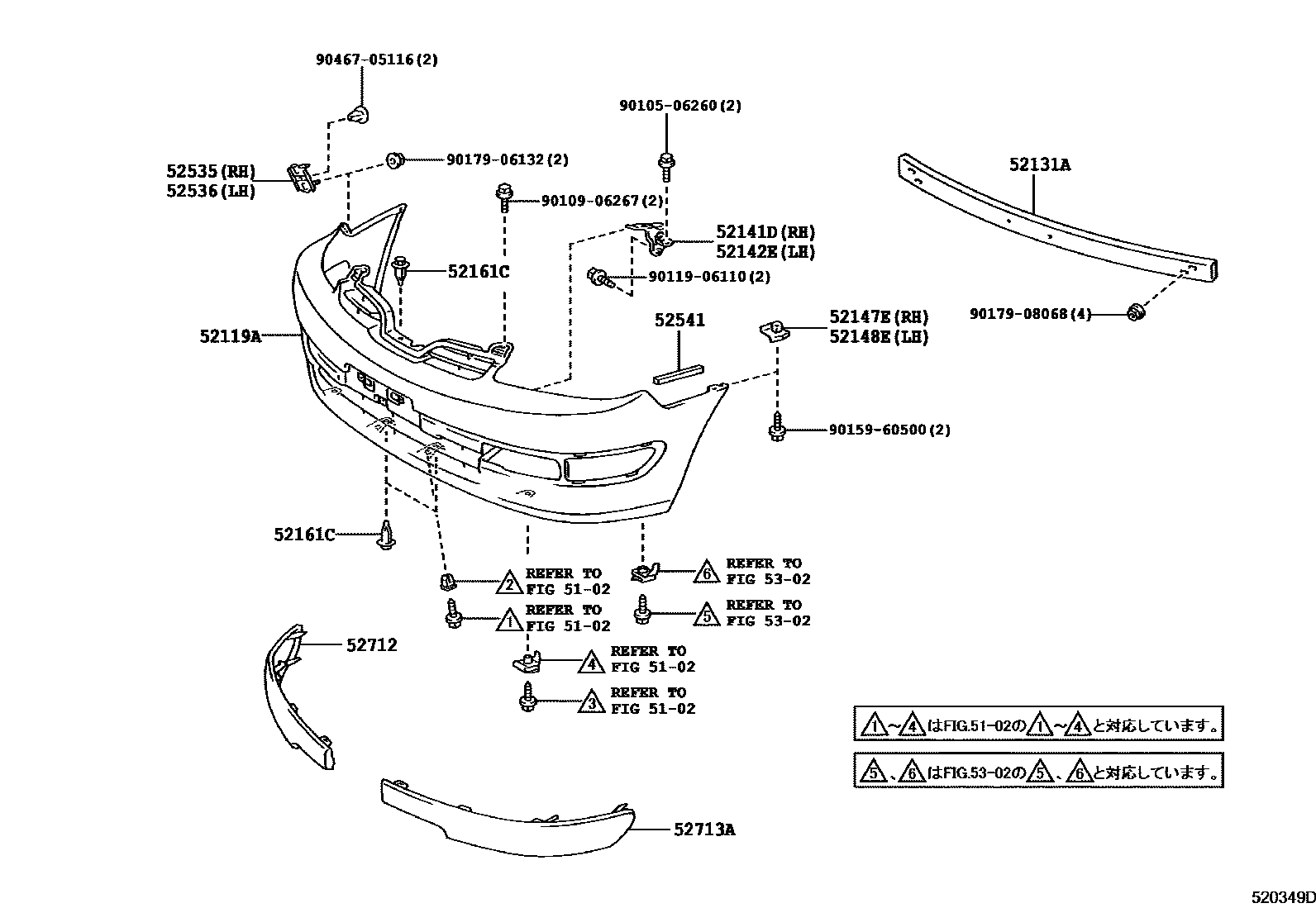

FRONT BUMPER & BUMPER STAY
5102
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52161CPIECE, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52712MOULDING, FRONT BUMPER SIDE, RH
GRAY,040 ,3L6 ,6P5 ,761 ,8L2 ,942
GRAY,040 ,057 ,3L6 ,6P5 ,761 ,8L2 ,942
GRAY,040 ,057 ,6P5 ,761 ,8L2 ,942
GRAY,040 ,057 ,199 ,6P5 ,761 ,8L2 ,942
52713AMOULDING, FRONT BUMPER SIDE, LH
GRAY,040 ,3L6 ,6P5 ,761 ,8L2 ,942
GRAY,040 ,057 ,3L6 ,6P5 ,761 ,8L2 ,942
GRAY,040 ,057 ,6P5 ,761 ,8L2 ,942
GRAY,040 ,057 ,199 ,6P5 ,761 ,8L2 ,942
5302
9010506260
main90105-06260
9010906267
main90109-06267
9011906110
main90119-06110
9015960500
main90159-60500
9017906132
main90179-06132
9017908068
main90179-08068
9046705116
main90467-05116
21 parts on this diagram · 2 diagrams in section
