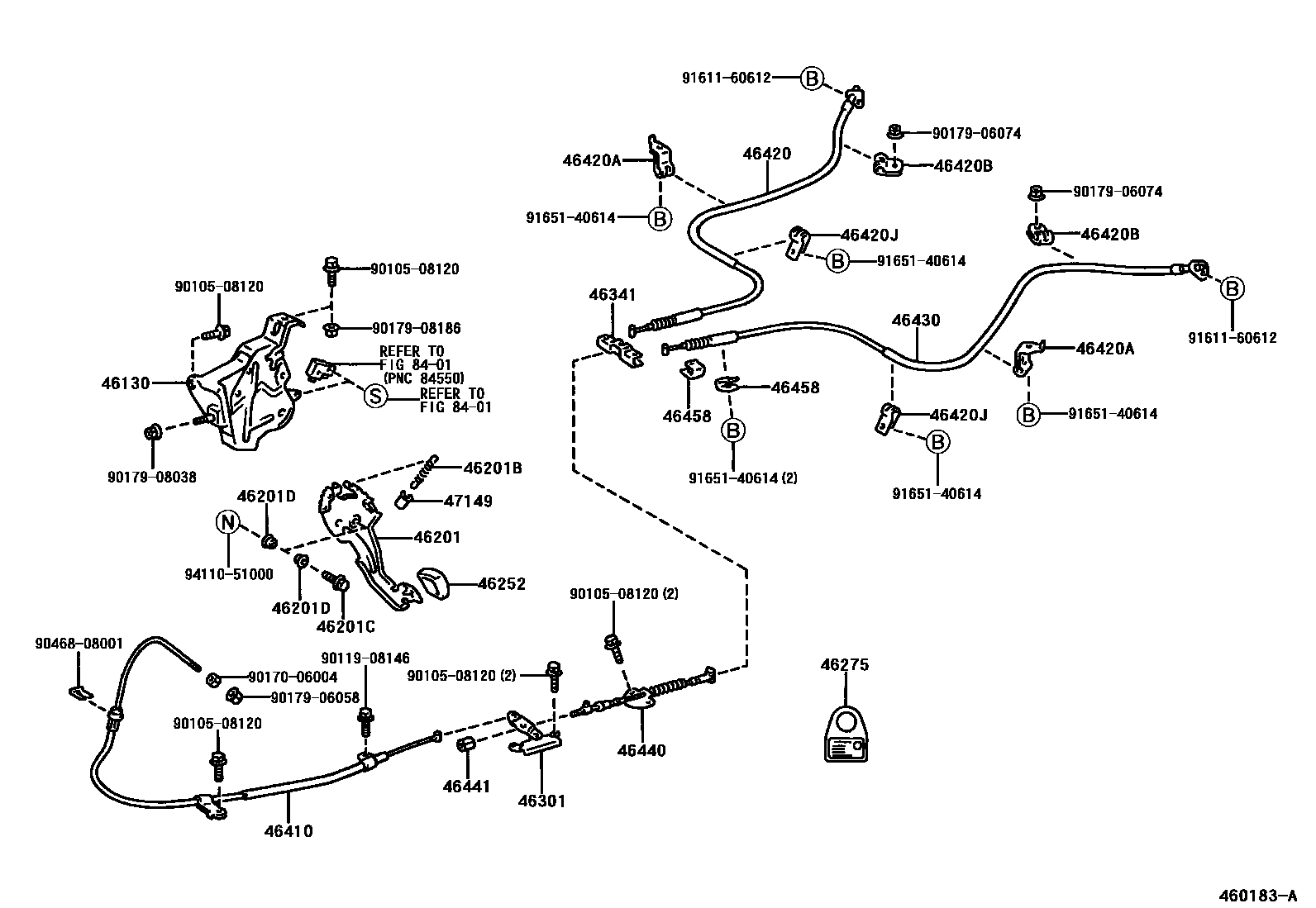

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1��(����������-�)

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-47010iNHW1#199712

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-47010iNHW1#199712

46201BSPRING, TENSION

main90506-19005iNHW1#199712

46201CSHAFT, PEDAL

main90109-10033iNHW1#199712

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022×2iNHW1#199712

46252PAD, PARKING PEDAL

main46252-33010iNHW1#199712

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-47010iNHW1#199712

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-47010iNHW1#199712

46341EQUALIZER, PARKING BRAKE

main46341-12020iNHW1#199712

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47010iNHW1#199712

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47010iNHW10199712-200005

main46420-47020iNHW11200005

main46420-47040iNHW11200108

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B40×2iNHW1#199712

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B41×2iNHW10199712-200005

main90949-01C47×2iNHW11200005

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01B42×2iNHW10199712-200005

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47010iNHW10199712-200005

main46430-47020iNHW11200005

main46430-47040iNHW11200108

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-47010iNHW1#199712

46441NUT, WIRE ADJUSTING, NO.1

main46441-47010×2iNHW1#199712

sub46441-47020

46458RETAINER, CABLE

main46458-28010×2iNHW1#199712

47149DAMPER, RETURN SPRING

main47149-22010iNHW1#199712

8401

9010508120

main90105-08120

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9017906074

main90179-06074

9017908038

main90179-08038

9017908186

main90179-08186

9046808001

main90468-08001

9161160612

main91611-60612

9165140614

main91651-40614

9411051000

main94110-51000

31 parts on this diagram · 3 diagrams in section
