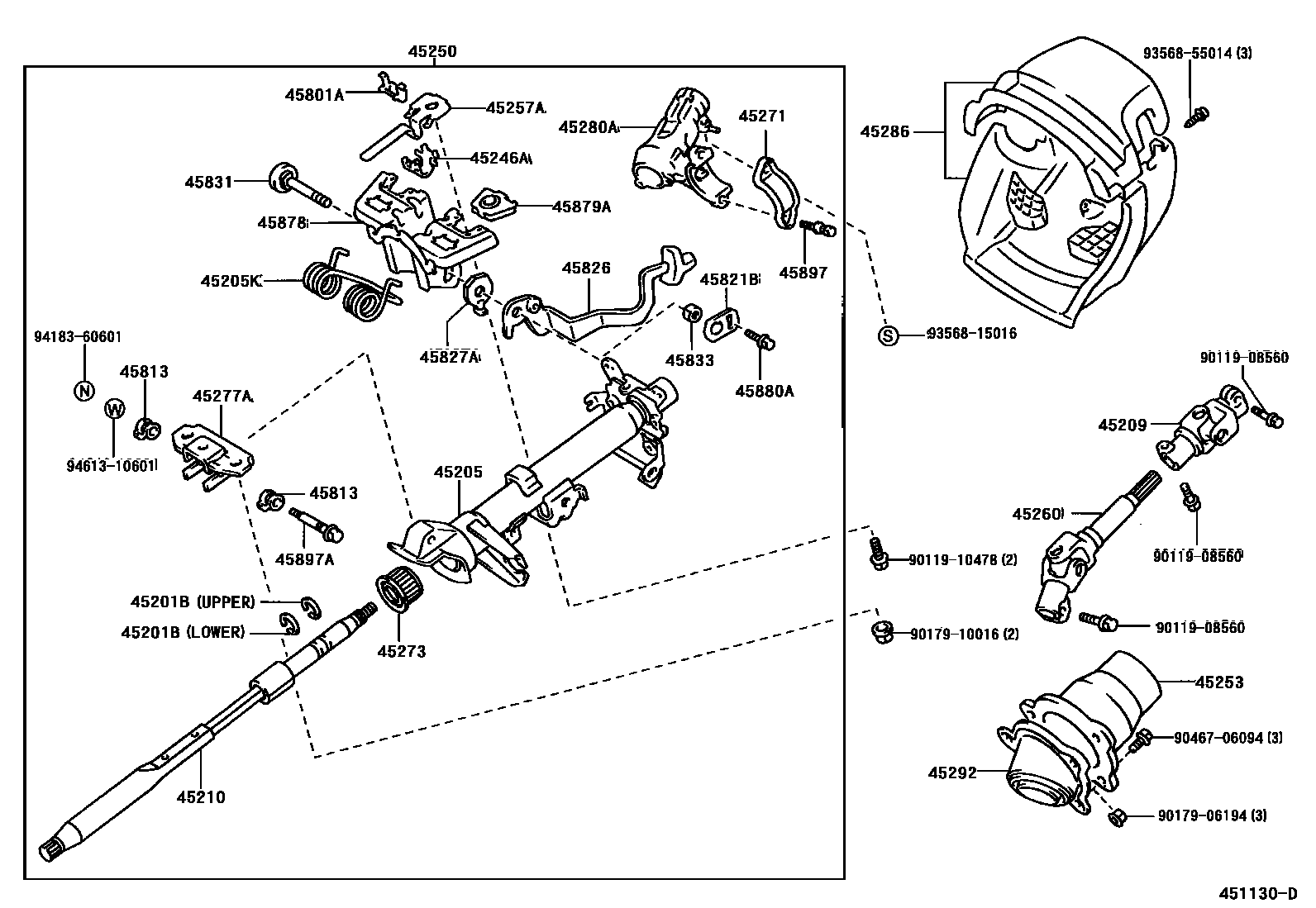

STEERING COLUMN & SHAFT

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNHW1#199712

main90520-17269iNHW1#199712

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-47010iNHW1#199712

45205KSPRING(FOR STEERING COLUMN TUBE)

main90949-03027iNHW1#199712

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-47010iNHW10199712-200005

main45209-47030iNHW11200005

45210SHAFT ASSY, STEERING MAIN

main45210-47010iNHW10199712-199908

main45210-47011iNHW1#199908

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-12110×2iNHW1#199712

45250COLUMN ASSY, STEERING

main45250-47010-B0iNHW10199712-200005

LT.AMETHYST,TRIM1#

45253COVER, STEERING COLUMN HOLE

main45253-47010iNHW10199712-200005

main45253-47020iNHW11200005

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070×2iNHW1#199712

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47010iNHW10199712-200005

main45260-47020iNHW11200005

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNHW1#199712

45273BUSH, STEERING MAIN SHAFT

main45273-12020iNHW1#199712

45277ASUPPORT, TILT STEERING

main45277-20110iNHW1#199712

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-28220iNHW10199712-199908

main45280-28221iNHW1#199908

45286COVER, STEERING COLUMN

main45286-47901-B0iNHW10199712-200005

LT.AMETHYST,TRIM1#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-47010iNHW1#199712

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010×2iNHW1#199712

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12010×2iNHW1#199712

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iNHW1#199712

45826LEVER, STEERING TILT

main45826-47010-B0iNHW10199712-200005

LT.AMETHYST,TRIM1#

45827ALEVER, STEERING TILT SUB

main45827-12030iNHW1#199712

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12020iNHW1#199712

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-12010iNHW1#199712

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-12220iNHW1#199712

45879ACAPSULE, BREAK AWAY

main45879-12050×2iNHW1#199712

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iNHW1#199712

45897BOLT, STEERING LOCK SET

main45897-12020×2iNHW1#199712

45897ABOLT, TILT STEERING PAWL SET

main45897-12040iNHW1#199712

9011908560

main90119-08560

9011910478

main90119-10478

9017906194

main90179-06194

9017910016

main90179-10016

9046706094

main90467-06094

9356815016

main93568-15016

9356855014

main93568-55014

9418360601

main94183-60601

9461310601

main94613-10601

37 parts on this diagram · 1 diagram in section
