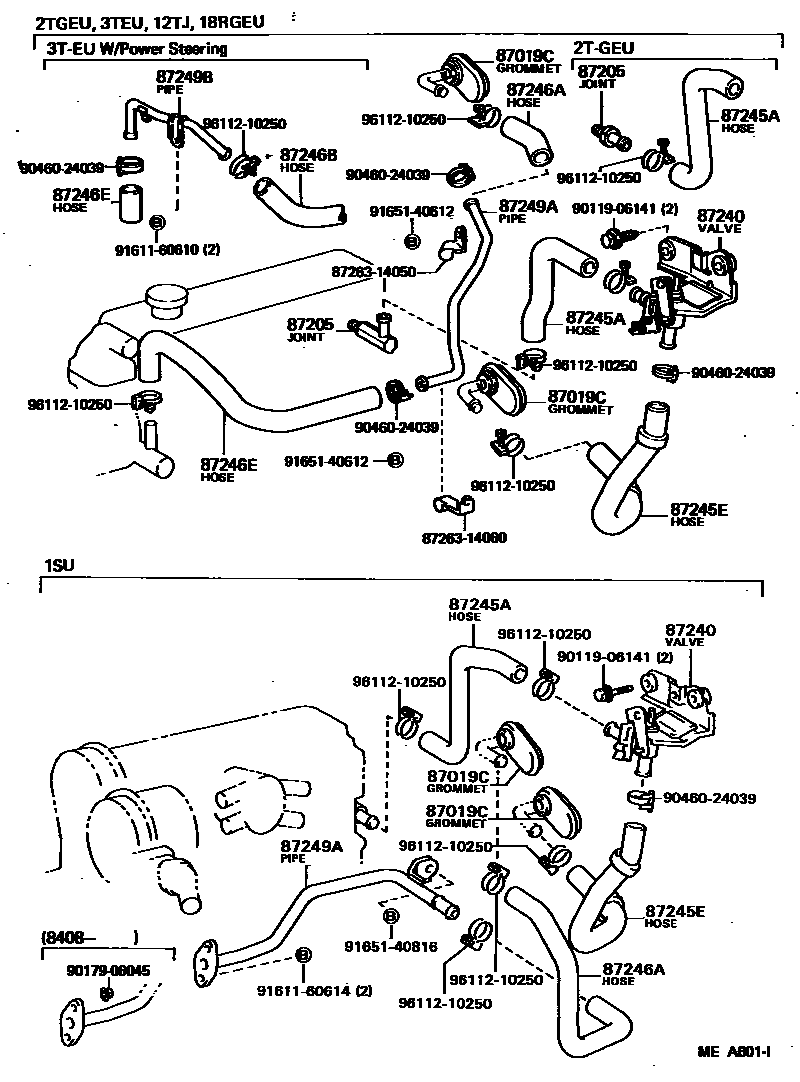

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1

87019CGROMMET, HEATER HOSE

main90480-01015iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-14010iTA61198109-198305

main87251-14040iTA63..GTT198210-198507

main87251-20100iTA63,67..DLX,SE,SG,ST,STD198109-198308

main90404-54004iRA63198109-198210

87240VALVE ASSY, HEATER WATER

main87240-14110iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main88670-14060iAA63,CA60,RA63,SA60,TA61,63198109-198804

W/*AAC

87245AHOSE, HEATER WATER, INLET A

main87245-12590iKA67198308-198804

main87245-14770iRA63,TA63,67..DLX,GT,SE,SG,ST,STD198109-198308

main87245-14780iTA61198109-198305

main87245-14800iSA60198109-198804

main87245-14820iAA60198109-198202

main87245-14821iAA60198202-198303

main87245-14840iCA6#198202-198804

main87245-1B110iTA63..GTT198210-198507

main87245-1B130iAA6#198303-198712

87245EHOSE, HEATER WATER, INLET E

main87245-14740iRA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main87245-14750iAA60198109-198712

main99552-30100iTA63..GTT;AA63,CA6#,KA67198202-198408

sub99556-30100

main99556-30055iAA63,CA67,KA67,TA63198408-198508

sub99556-30100

main99556-30100iCA67,KA67198508-198804

87246AHOSE, HEATER WATER, OUTLET A

main87245-14790iSA60198109-198304

main87245-14810iAA60198109-198712

main87245-1B040iCA6#,RA63,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main87245-1B100iKA67,TA63..DLX,GTT,SG,STD198210-198804

main87245-1B140iAA63198305-198507

main87245-20600iSA60198304-198804

87246BHOSE, HEATER WATER, OUTLET B

main99552-30500iTA63..SE,ST198109-198305

*H,L=360,W/POWER STEERING

sub99556-30500

87246EHOSE, HEATER WATER, OUTLET E

main87245-14700iTA63..SE,ST198109-198305

W/POWER STEERING

sub99552-30100

main87245-14830iCA6#198202-198804

main87245-1B050iTA63,67..DLX,SE,SG,ST,STD198109-198308

sub87245-32050

main87245-1B080iTA63..GTT198210-198507

main87245-1B160iKA67198308-198804

main99552-30500iTA61198109-198305

*H,L=440

sub99556-30500

main99552-30500iRA63198109-198210

sub99556-30500

87249APIPE, HEATER WATER OUTLET, A

main87208-14110iSA60198109-198304

main87208-14200iTA63..GTT198210-198507

main87208-14250iKA67198308-198804

main87208-14270iSA60198308-198804

main87208-16011iAA60198109-198211

main87208-20160iSA60198304-198308

main87248-14170iCA6#198109-198804

main87248-20240iCA6#198202-198303

sub87248-14170

87249BPIPE, HEATER WATER OUTLET, B

main87208-14190iTA63..SE,ST198109-198305

W/POWER STEERING

8726314050BRACKET, HEATER WATER PIPE, NO.1

main87263-14050

8726314060BRACKET, HEATER WATER PIPE, NO.1

main87263-14060

9011906141

main90119-06141

9017906045

main90179-06045

9046024039

main90460-24039

9161160610

main91611-60610

9161160614

main91611-60614

9165140612

main91651-40612

9165140816

main91651-40816

9611210250

main96112-10250

20 parts on this diagram · 5 diagrams in section
