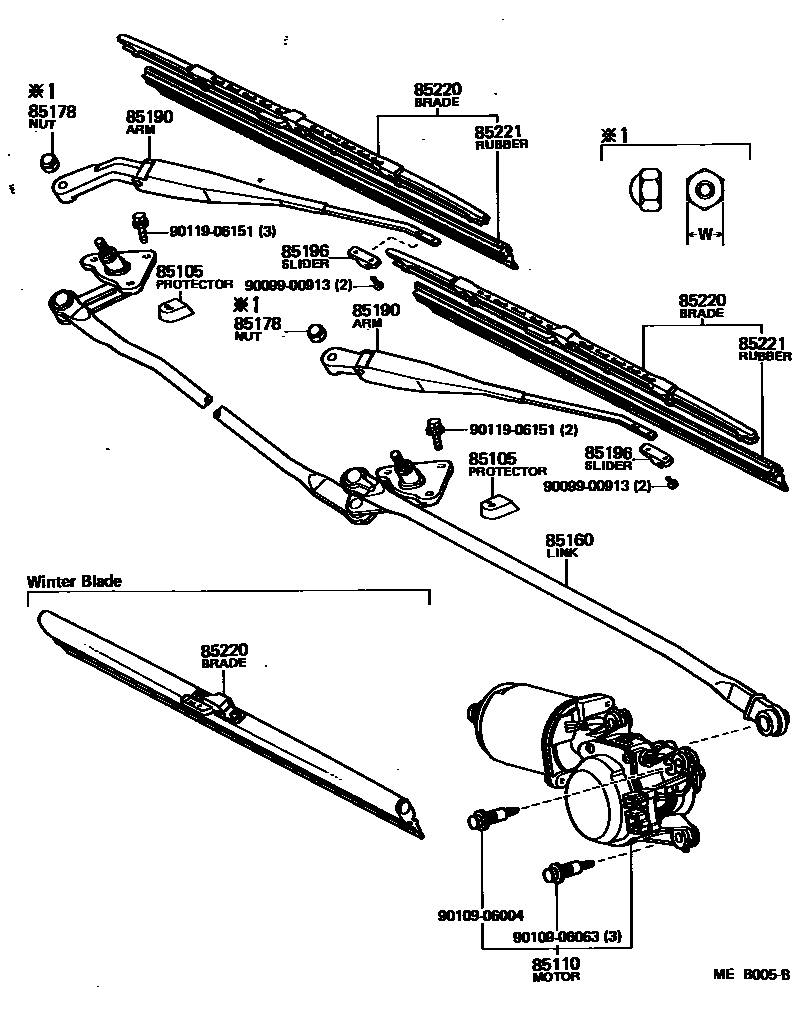

WINDSHIELD WIPER

85105PROTECTOR, WIPER

main85105-14010iCA60,SA60..SE198109-198507

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14190iCA60,SA60..SG,ST;AA6#,CA67,KA67,TA6#198109-198804

main85110-14200iCA60,SA60..SE198305-198507

main85110-14200iAA60,CA60,RA63,SA60,TA61,63..GT,SE198109-198305

W/RISE UP WIPER

85160LINK ASSY, WINDSHIELD WIPER

main85160-14220iAA60,CA6#,RA63,SA60,TA6#..SED,V,WG198109-198804

main85160-14300iAA60,RA63,SA60,TA61,63..CP198109-198305

sub85160-14220

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08013iAA60,RA63,SA60,TA6#..SED,V198109-198202

W=14

main90176-08029iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198506

W=12

main90176-08033iAA6#,CA67,KA67,SA60,TA63198506-198804

W=12

85190ARM ASSY, WINDSHIELD WIPER

main85190-14340iAA60,CA6#,RA63,SA60,TA6#..SED,V,WG198109-198301

RH

main85190-14341iAA60,CA60,SA60,TA61..SED..(GT,SE)198301-198405

RH

main85190-14420iAA60,RA63,SA60,TA61,63..CP198109-198301

RH

sub85190-14340

main85190-14450iAA60,RA63,TA61,63..CP..(GT,SE)198204-198301

RH,COLD SPEC

sub85190-20350

main85190-14450iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198204-198507

RH

sub85190-20350

main85190-14451iSA60..CP..SE198301-198507

RH

sub85190-14341

main85190-20350iAA60,CA60,RA63,SA60,TA61..SED..(GT,SE)198204-198301

RH,COLD SPEC

main85190-20350iAA60..SED..SE198204-198804

RH

main85210-14060iAA60,CA6#,SA60,TA63,67..(SED,V,WG)..(DLX,SG,ST,STD)198109-198204

LH

main85210-14150iAA60,CA60,RA63,SA60,TA61..SED..(GT,SE)198109-198301

LH

main85210-14151iAA60,CA60,SA60,TA61..SED..(GT,SE)198301-198405

LH

main85210-14160iAA60,SA60,TA63..CP..(SG,ST)198109-198204

LH

sub85210-14060

main85210-14170iAA60,RA63,TA61,63..CP..(GT,SE)198109-198301

LH

sub85210-14150

main85210-14171iSA60..CP..SE198301-198507

LH

sub85210-14151

main85210-14200iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198204-198507

LH

sub85210-20100

main85210-14200iAA60,RA63,TA61,63..CP..(GT,SE)198204-198301

LH,COLD SPEC

sub85210-20100

main85210-20100iAA60..SED..SE198204-198804

LH

main85210-20100iAA60,CA60,RA63,SA60,TA61..SED..(GT,SE)198204-198301

LH,COLD SPEC

85196SLIDER, WIPER ARM

main85196-14010iAA60,CA60,RA63,SA60,TA61,63..GT,SE198109-198301

RH

main85196-14020iAA60,CA60,RA63,SA60,TA61,63..GT,SE198109-198301

LH

main85196-14101iAA60,CA60,SA60,TA61,63..GT,SE198301-198507

LH

main85196-14361iAA60,CA60,SA60,TA61,63..GT,SE198301-198507

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620iAA60,CA67,KA67,SA60198606-198804

WINTER BLADE

sub85291-12010

main85220-14310iAA60,CA6#,RA63,SA60,TA6#198109-198301

RH

main85220-14360iAA60,CA60,RA63,SA60,TA61,63..GT,SE198109-198301

LH

main85220-16100iAA6#,CA6#,KA67,SA60,TA6#198301-198804

RH

sub85220-16180

main85220-16110iAA6#,CA6#,KA67,SA60,TA6#198301-198804

LH

sub85220-16130

main85220-20260iAA60,CA6#,SA60,TA63,67..DLX,GTT,SG,ST,STD198204-198301

LH

sub85220-16130

main85220-24040iCA67,KA67198109-198606

WINTER BLADE

sub85291-24010

main85220-30220iAA60,CA6#,SA60,TA63,67..DLX,GTT,SG,ST,STD198204-198301

RH

sub85220-30240

85221BLADE, WINDSHIELD WIPER

main85221-30080iAA6#,CA6#,RA63,SA60,TA6#198109-198308

sub85223-12690

main85221-30120iAA6#,CA6#,KA67,SA60,TA63198308-198804

sub85221-40040

9009900913

main90099-00913

9010906004

main90109-06004

9010906063

main90109-06063

9011906151

main90119-06151

12 parts on this diagram · 1 diagram in section
