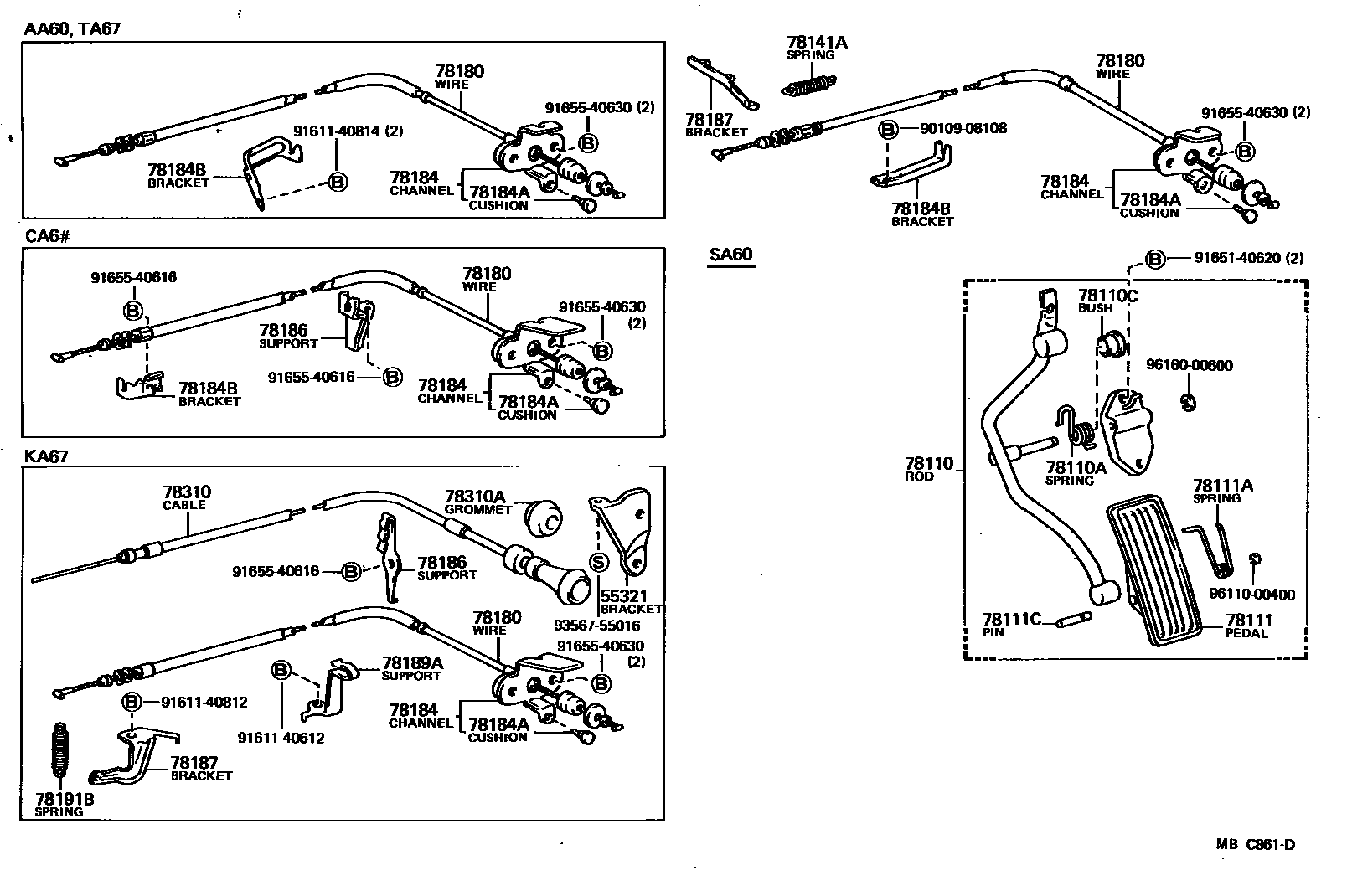

ACCELERATOR LINK

0001 1 0002 1

55321BRACKET, CHOKE WIRE

main55364-14010iKA67198308-198804

78110ROD ASSY, ACCELERATOR PEDAL

main78120-14240iSA60..4FC198109-198804

main78120-14250iTA63..4FC..GTT;AA63,RA63,TA61,63..GT,SE,ST198109-198507

main78120-14280iAA60,TA67..MTM198109-198804

main78120-14290iAA60,TA67..ATM198109-198804

main78120-14310iSA60..MTM198109-198203

main78120-14350iTA63..5F198210-198507

main78120-14380iCA6#,KA67..MTM198202-198804

main78120-14390iCA60,KA67..ATM198202-198804

main78120-14410iSA60..MTM198203-198804

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iCA60..4FC198109-198405

main90508-18033iAA60,KA67,SA60,TA67..ATM198109-198804

main90508-26036iAA60,SA60,TA67..MTM198109-198203

main90508-26048iTA63..5F198203-198804

main90508-26049iAA60,CA6#,KA67,TA67..MTM198202-198804

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-12023iAA60,CA6#,KA67,TA67..MTM198202-198804

78111PEDAL, ACCELERATOR

main78111-12100iAA60,CA6#,KA67,SA60,TA67198109-198804

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iAA60,CA6#,KA67,SA60,TA67198109-198804

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAA60,CA6#,KA67,SA60,TA67198109-198804

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-07001iSA60..4FC198109-198804

main90507-08003iSA60..MTM198109-198804

78180WIRE ASSY, ACCELERATOR

main78180-14240iTA63..5F..(SE,ST)198109-198305

main78180-14280iTA63..4FC..(SE,ST)198109-198305

main78180-14290iRA63198109-198203

sub78180-14291

sub78181-14060

sub90541-06008

main78180-14291iRA63198203-198210

main78180-14310iAA60198109-198804

main78180-14320iCA6#198202-198804

main78180-14330iTA67198109-198308

sub78180-14270

main78180-14340iTA61198109-198305

main78180-14380iSA60198109-198203

sub78180-14381

sub78181-14060

sub90541-06008

main78180-14381iSA60198203-198209

main78180-14382iSA60198209-198804

main78180-14560iTA63..GTT198210-198507

main78180-14630iAA63198305-198507

main78180-14650iKA67198411-198804

main78180-14660iKA67198308-198411

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-14060iCA6#,KA67,RA63,SA60,TA67198202-198804

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iCA6#,KA67,RA63,SA60,TA67198202-198804

78184BBRACKET, ACCELERATOR CONTROL CABLE

main21524-28010iTA63..5F..(SE,ST)198109-198305

main21524-88262iRA63,TA61198109-198305

main78024-14040iAA63198305-198507

main78184-12050iTA67198109-198308

main78184-14040iSA60198109-198209

main78184-14041iSA60198209-198804

main78184-14060iCA6#198202-198804

main78184-14110iTA63..GTT198210-198507

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-14020iCA6#198202-198207

sub78186-14021

main78186-14021iCA6#,KA67198207-198804

main78186-14051iTA63..GTT198210-198507

main78186-14080iAA63,RA63,TA61,63198208-198507

main78186-24010iRA63,TA61,63198109-198208

sub78186-14080

78187BRACKET, ACCELERATOR PULL BACK SPRING

main78187-12050iKA67198308-198804

main78187-14020iSA60198109-198804

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78186-12041iKA67198308-198804

78191BSPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)

main90507-12021iKA67198308-198804

78310CABLE ASSY, CHOKE

main78310-14260iKA67198308-198804

78310AGROMMET, CHOKE CABLE

main90480-13055iKA67198308-198804

9010908108

main90109-08108

9161140612

main91611-40612

9161140812

main91611-40812

9161140814

main91611-40814

9165140620

main91651-40620

9165540616

main91655-40616

9165540630

main91655-40630

9356755016

main93567-55016

9611000400

main96110-00400

9616000600

main96160-00600

28 parts on this diagram · 2 diagrams in section
