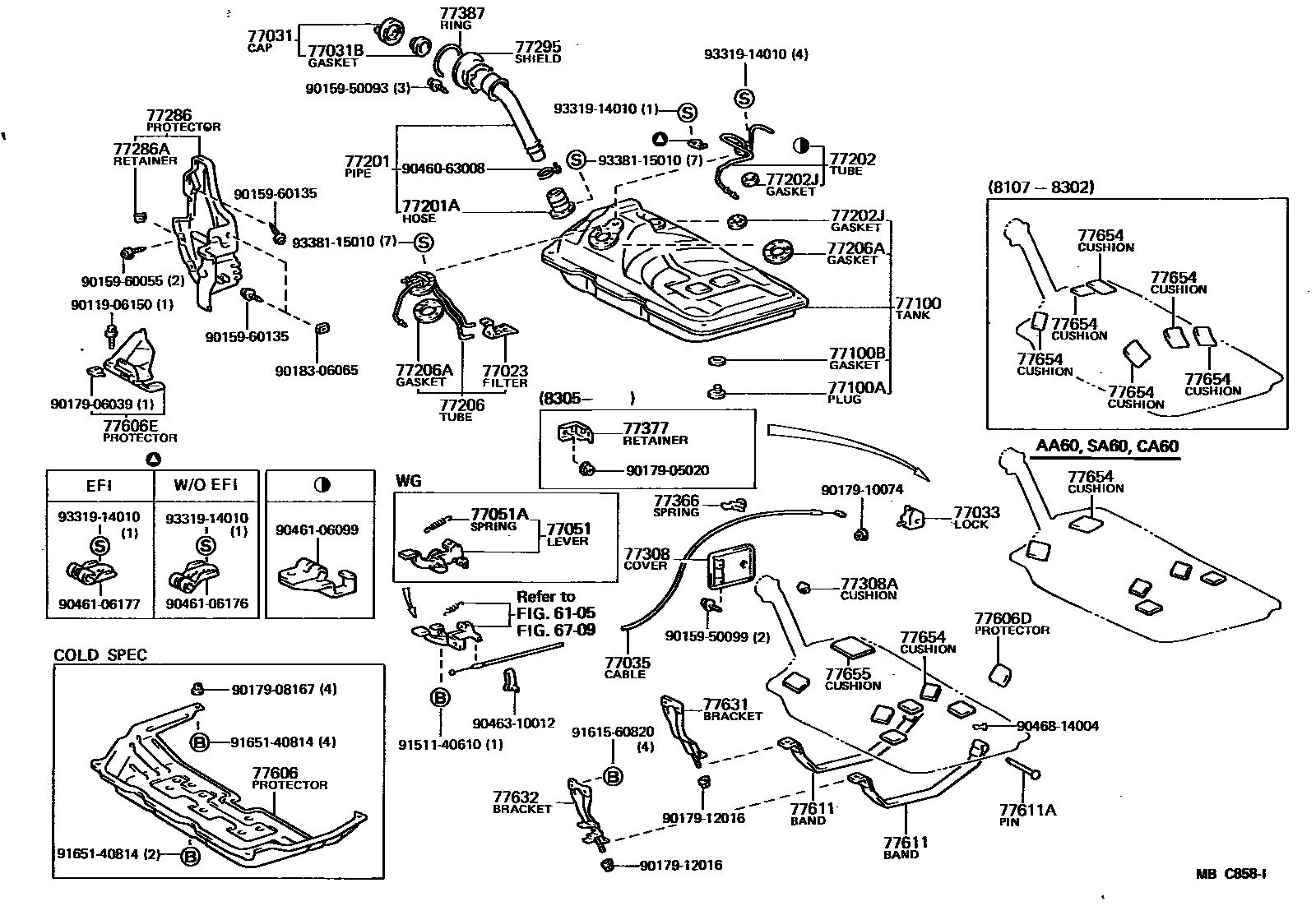

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

6105

6709

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAA60,KA67,SA60,TA67198109-198312

main77023-14030iAA60,KA67,SA60198312-198804

main77023-22040iCA6#198202-198312

main77023-30010iRA63,TA61,63198109-198305

main77023-32010iCA6#198312-198804

77031CAP ASSY, FUEL TANK

main77310-12100iAA60,CA6#,RA63,SA60,TA6#198109-198804

main77310-35061iCA6#198206-198804

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iAA6#,CA60,SA60,TA61,63..GT,GTT,SE,SG,ST198304-198804

sub77037-90K00

main77037-24010iAA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198109-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14110iAA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(GT,GTT,SE,SG,ST)198109-198804

sub77035-14090

main77035-14150iAA6#,RA63,SA60,TA61,63..CP198109-198507

77051LEVER SUB-ASSY, FUEL LID OPEN

main77306-14010iSA60..WG198202-198804

77051ASPRING, TENSION (FOR FUEL LID LEVER)

main90506-09004iSA60..WG198202-198804

77100TANK ASSY, FUEL

main77001-19085iCA60198202-198206

sub77001-29065

main77001-19095iAA60,SA60198109-198307

sub77001-19096

sub77012-14023

main77001-19096iAA60,SA60198307-198804

main77001-19105iAA63,RA63,TA61,63198109-198307

sub77001-19107

sub77012-14041

main77001-19107iAA63,TA63198307-198507

main77001-19125iTA67198109-198302

sub77001-19275

main77001-19135iCA67198202-198302

sub77001-19285

main77001-19275iKA67,TA67198302-198804

sub77001-19285

main77001-19285iCA67198302-198804

main77001-29065iCA60198206-198211

PLUG OD=24

sub77001-29066

main77001-29066iCA60198211-198302

PLUG ID=20

sub77001-29068

sub77012-14023

main77001-29067iCA60198302-198307

PLUG ID=20

sub77001-29066

main77001-29068iCA60198307-198405

PLUG ID=20

77100APLUG(FOR FUEL TANK)

main90105-12018iCA67,KA67,TA67198109-198804

main90341-20003iAA6#,CA60,SA60,TA61,63198211-198412

OD=20

sub90341-20004

main90341-20004iAA6#,SA60,TA63198412-198804

main90341-24036iAA60,CA60,RA63,SA60,TA61,63198109-198211

OD=24

77100BGASKET(FOR FUEL TANK)

main90430-12245iCA67,KA67,TA67198109-198804

main90430-20006iAA6#,CA60,SA60,TA61,63198211-198412

ID=20.4

main90430-20007iAA6#,SA60,TA63198412-198804

main90430-24047iAA60,CA60,RA63,SA60,TA61,63198109-198211

ID=24

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14200iAA60,CA60,SA60198109-198804

main77201-14220iAA63,RA63,TA61,63198109-198507

main77201-91258iCA67,KA67,TA67198109-198804

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77202TUBE SUB-ASSY, BREATHER

main77012-14022iAA60,CA60,SA60198109-198307

sub77012-14023

main77012-14023iAA60,CA60,SA60198307-198804

main77012-14040iRA63,TA61,63198109-198307

sub77012-14041

main77012-14041iAA63,TA63198307-198507

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14041iAA60,SA60198306-198804

main77203-14090iRA63,TA61,63198109-198207

main77203-14091iRA63,TA61,63198207-198305

main77203-14100iAA60,SA60198109-198306

main77203-14110iCA60198202-198405

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14010iRA63,TA61,63198109-198305

main77169-14020iAA60,CA60,SA60198109-198804

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14070iAA60,CA60,SA60198109-198804

main77277-14080iAA63,RA63,TA61,63198109-198507

77286ARETAINER, FUEL FILLER PIPE PROTECTOR

main90183-06002iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77295SHIELD, FUEL FILLER PIPE

main77034-14010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

main77291-12010iCA67,KA67,TA67198109-198804

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14040iAA60,CA60,RA63,SA60,TA61,63198109-198804

main77350-91C01iCA67,KA67,TA67198109-198804

main77350-91D01iAA6#,CA60,SA60,TA63..GT,GTT,SE,SG,ST198305-198804

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009iAA6#,CA60,RA63,SA60,TA61,63198109-198804

main90541-08003iCA67,KA67,TA67198109-198804

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iAA6#,CA60,SA60,TA63..GT,GTT,SE,SG,ST198305-198804

77387RING, FUEL INLET BOX

main77391-14020iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-14040iAA6#,CA60,RA63,SA60,TA61,63198109-198804

COLD SPEC

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14030iAA60,CA60,SA60198202-198804

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14080iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77611BAND, FUEL TANK

main77601-14050iAA6#,CA60,RA63,SA60,TA61,63198109-198804

COLD SPEC

main77601-14060iAA6#,CA60,RA63,SA60,TA61,63198109-198804

sub77601-14050

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAA6#,CA60,RA63,SA60,TA61,63198109-198804

77631BRACKET, FUEL TANK, NO.1

main77613-14021iAA60,SA60198109-198112

sub77613-14022

main77613-14022iAA60,CA60,SA60198112-198804

main77613-14040iAA63,RA63,TA61,63198109-198507

77632BRACKET, FUEL TANK, NO.2

main77614-14021iAA60,CA60,SA60198109-198804

main77614-14040iAA63,RA63,TA61,63198109-198507

77654CUSHION, FUEL TANK, NO.2

main77651-91C01iCA67,KA67,TA67198302-198804

70X70

main77652-14060iAA60,CA60,RA63,SA60,TA61,63198109-198302

120X70

main77652-14080iAA6#,CA60,SA60,TA63198302-198804

main77652-20010iAA60,CA60,RA63,SA60,TA61,63198109-198302

120X120

main77652-91602iCA67,KA67,TA67198109-198804

100X200

77655CUSHION, FUEL TANK, NO.3

main77652-14090iAA63,TA61,63198302-198507

main77653-91602iCA67,TA67198109-198302

100X450

main77653-91C01iCA67,KA67,TA67198302-198804

430X60

9011906150

main90119-06150

9015950093

main90159-50093

9015950099

main90159-50099

9015960055

main90159-60055

9015960135

main90159-60135

9017905020

main90179-05020

9017906039

main90179-06039

9017908167

main90179-08167

9017910074

main90179-10074

9017912016

main90179-12016

9018306065

main90183-06065

9046063008

main90460-63008

9046106099

main90461-06099

9046106176

main90461-06176

9046106177

main90461-06177

9046310012

main90463-10012

9046814004

main90468-14004

9151140610

main91511-40610

9161560820

main91615-60820

9165140814

main91651-40814

9331914010

main93319-14010

9338115010

main93381-15010

57 parts on this diagram · 8 diagrams in section
