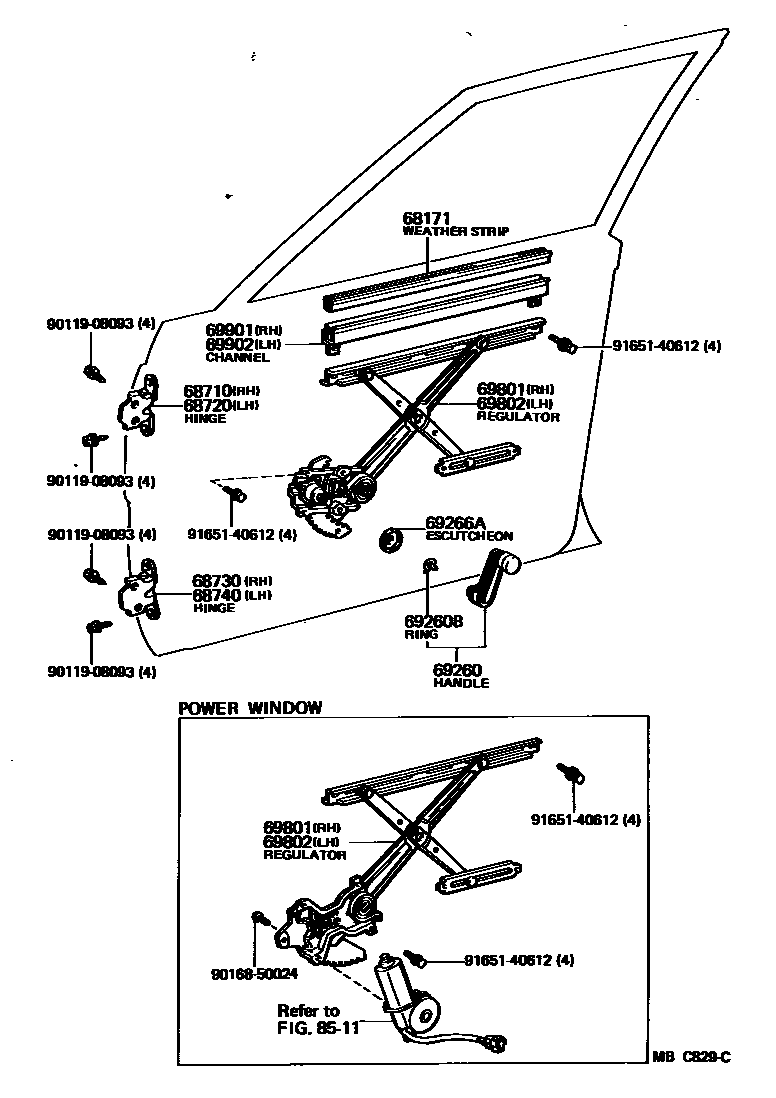

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

sub69971-22010

main69971-22010iAA6#,RA63,SA60,TA61,63..CP198109-198507

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub68710-60040

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub68720-60040

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

main68730-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

main68740-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-01iAA60,CA6#,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

sub69260-14020

sub69260-22030

main69260-14020-06iAA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-14iAA60,CA60..SE198109-198804

BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAA60,CA6#,RA63,SA60,TA6#198109-198804

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010-08iAA60,CA6#,RA63,SA60,TA6#198109-198804

NATURAL WHITE

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-14070iAA63,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE)198109-198507

W/*PW

main69801-14070iAA60,SA60..SED..SG198310-198712

MY ROAD

main69801-14090iAA63,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

W/*PW

main69810-14120iAA6#,CA6#,KA67,SA60,TA6#..(SED,V,WG)..(DLX,GT,GTT,SG,ST,STD)198109-198804

main69810-14160iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198109-198804

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-14070iAA63,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE)198109-198507

W/*PW

main69802-14070iAA60,SA60..SED..SG198310-198712

MY ROAD

main69802-14090iAA63,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

W/*PW

main69820-14110iAA6#,CA6#,KA67,SA60,TA6#..(SED,V,WG)..(DLX,GT,GTT,SG,ST,STD)198109-198804

main69820-14150iAA60..CP..SE198109-198507

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198206-198804

main69901-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

main69901-14070iAA60,CA6#,RA63,SA60,TA6#..SED,V,WG198109-198206

sub69901-12080

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198206-198804

main69901-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

main69901-14070iAA60,CA6#,RA63,SA60,TA6#..SED,V,WG198109-198206

sub69901-12080

8511

9011908093

main90119-08093

9016850024

main90168-50024

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
