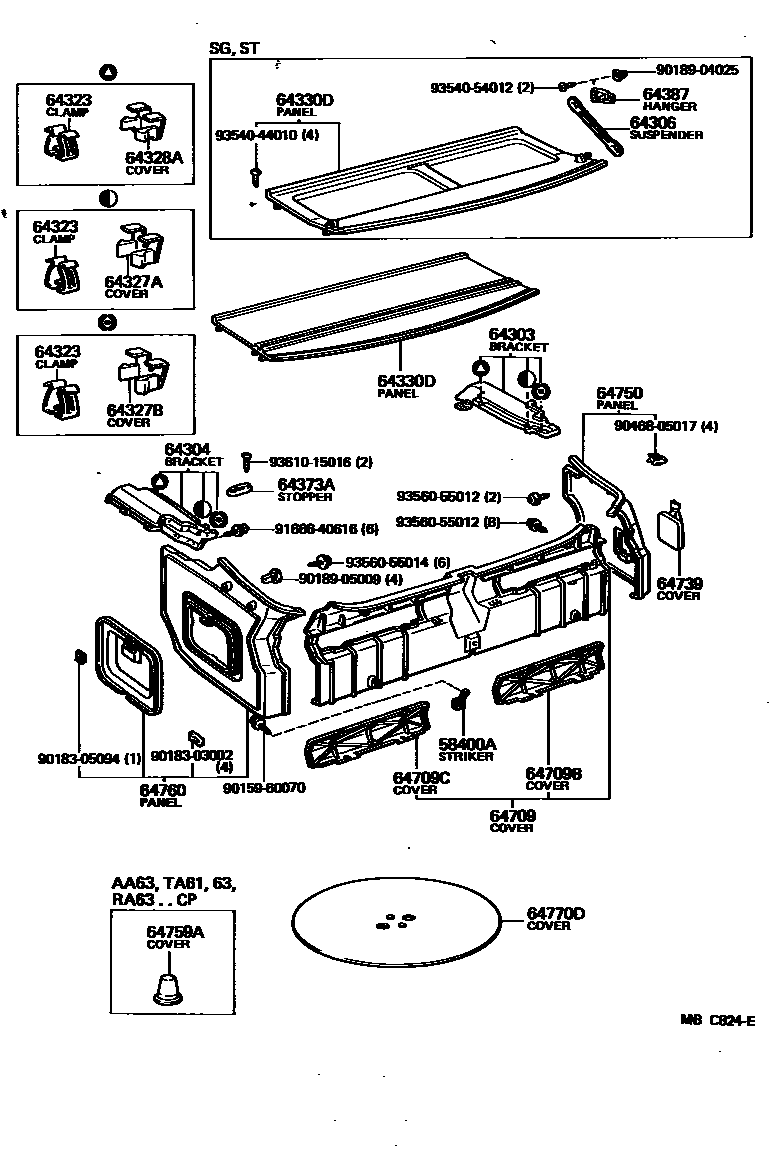

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-14020-01iRA63,TA61,63..CP..(GT,SE)198109-198507

7 WAY PARCEL TRAY,BLACK,BLACK,TRIM2#

main64301-14020-04iAA60,RA63,TA61,63..CP..(GT,SE,ST)198109-198507

7 WAY PARCEL TRAY,BLUE,BLUE,TRIM8#

main64301-14020-06iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,DARK BROWN,BROWN,TRIM4#

main64301-14030-01iAA60,SA60,TA63..CP..(SG,ST)198109-198507

BLACK,BLACK,TRIM2#

main64301-14030-04iAA60,SA60,TA63..CP..(SG,ST)198109-198507

BLUE,BLUE,TRIM8#

main64301-14030-06iAA60..CP..SG198109-198507

DARK BROWN,BROWN,TRIM4#

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-14020-01iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,BLACK,BLACK,TRIM2#

main64302-14020-04iRA63,TA61,63..CP..(GT,SE)198109-198507

7 WAY PARCEL TRAY,BLUE,BLUE,TRIM8#

main64302-14020-06iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,DARK BROWN,BROWN,TRIM4#

main64302-14050-01iAA60..CP..SG198109-198507

BLACK,BLACK,TRIM2#

main64302-14050-04iAA60,SA60,TA63..CP..(SG,ST)198109-198507

BLUE,BLUE,TRIM8#

main64302-14050-06iAA60,SA60,TA63..CP..(SG,ST)198109-198507

DARK BROWN,BROWN,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64367-12010iAA60,SA60,TA63..CP..(SG,ST)198109-198507

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-14020iAA6#,RA63,SA60,TA61,63..CP198109-198507

64327ACOVER, PACKAGE TRAY TRIM CLAMP, NO.1

main64327-14050-01iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,RH,BLACK,BLACK,TRIM2#

main64327-14050-04iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,RH,BLUE,BLUE,TRIM8#

main64327-14050-06iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,RH,D-BROWN,BROWN,TRIM4#

main64327-14060-01iAA60,SA60,TA63..CP..(SG,ST)198109-198507

RH,BLACK,BLACK,TRIM2#

main64327-14060-04iAA60,SA60,TA63..CP..(SG,ST)198109-198507

RH,BLUE,BLUE,TRIM8#

main64327-14060-06iAA60,SA60,TA63..CP..(SG,ST)198109-198507

RH,DARK BROWN,BROWN,TRIM4#

main64328-14070-01iAA60,RA63,TA61,63..CP..(GT,GTT,SE,ST)198109-198507

7 WAY PARCEL TRAY,LH,BLACK,BLACK,TRIM2#

sub64328-14070

main64328-14070-04iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,LH,BLUE,BLUE,TRIM8#

sub64328-14070

main64328-14070-06iAA6#,SA60,TA63..CP198109-198507

7 WAY PARCEL TRAY,LH,D-BROWN,BROWN,TRIM4#

sub64328-14070

main64328-14080-01iAA60,SA60,TA63..CP..(SG,ST)198109-198507

LH,BLACK,BLACK,TRIM2#

main64328-14080-04iAA60..CP..SG198109-198507

LH,BLUE,BLUE,TRIM8#

main64328-14080-06iAA60..CP..SG198109-198507

LH,DARK BROWN,BROWN,TRIM4#

64327BCOVER, PACKAGE TRAY TRIM CLAMP, NO.2

main64327-14050-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

RH,BLACK,BLACK,TRIM2#

main64327-14050-04iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

RH,BLUE,BLUE,TRIM8#

main64327-14050-06iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

RH,DARK BROWN,BROWN,TRIM4#

main64328-14070-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

LH,BLACK,BLACK,TRIM2#

sub64328-14070

main64328-14070-04iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

LH,BLUE,BLUE,TRIM8#

sub64328-14070

main64328-14070-06iTA63..CP198109-198507

LH,DARK BROWN,BROWN,TRIM4#

sub64328-14070

64328ACOVER, PACKAGE TRAY TRIM CLAMP

main64328-14040-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main64328-14040-04iTA63..CP198109-198507

BLUE,BLUE,TRIM8#

main64328-14040-06iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

DARK BROWN,BROWN,TRIM4#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-14380-01iAA60..CP..SG198109-198507

BLACK,BLACK,TRIM2#

sub64330-14380

main64330-14380-04iAA60..CP..SG198109-198507

BLUE,BLUE,TRIM8#

sub64330-14380

main64330-14380-06iAA60,SA60,TA63..CP..(SG,ST)198109-198405

DARK BROWN,BROWN,TRIM4#

sub64330-14380

main64330-14390-01iAA60,RA63,TA61,63..CP..(GT,GTT,SE,ST)198109-198507

7 WAY PARCEL TRAY,BLACK,BLACK,TRIM2#

sub64330-14390

main64330-14390-04iRA63,TA61,63..CP..(GT,SE)198109-198507

7 WAY PARCEL TRAY,BLUE,BLUE,TRIM8#

sub64330-14390

main64330-14390-06iAA60,RA63,TA61,63..CP..(GT,SE,ST)198109-198507

7 WAY PARCEL TRAY,DARK BROWN,BROWN,TRIM4#

sub64330-14390

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-14030iRA63,TA61,63..CP..(GT,SE)198109-198507

7 WAY PARCEL TRAY

64387HANGER, PACKAGE TRAY TRIM

main64381-12010iAA60,SA60,TA63..CP..(SG,ST)198109-198507

64709COVER SUB-ASSY, LOWER BACK PANEL

main64716-14120-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

sub64716-14120

main64716-14120-04iTA63..CP198109-198507

BLUE,BLUE,TRIM8#

sub64716-14120

main64716-14120-06iTA63..CP198109-198507

DARK BROWN,BROWN,TRIM4#

sub64716-14120

64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)

main64745-14050-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main64745-14050-04iTA63..CP198109-198507

BLUE,BLUE,TRIM8#

main64745-14050-06iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

DARK BROWN,BROWN,TRIM4#

64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)

main64745-14050-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main64745-14050-04iTA63..CP198109-198507

BLUE,BLUE,TRIM8#

main64745-14050-06iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

DARK BROWN,BROWN,TRIM4#

64739COVER, DECK TRIM SIDE WASHER

main64739-14021-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

sub64739-14021

main64739-14021-24iTA63..CP198109-198507

BLUE,BLUE,TRIM8#

sub64739-14021

main64739-14021-26iTA63..CP198109-198507

DARK BROWN,BROWN,TRIM4#

sub64739-14021

64750PANEL ASSY, DECK SIDE TRIM, RH

main64730-14090-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main64730-14090-04iTA63..CP198109-198507

BLUE,BLUE,TRIM8#

main64730-14090-06iTA63..CP198109-198507

DARK BROWN,BROWN,TRIM4#

64759ACOVER, SHOCK ABSORBER HEAD

main58731-22020-01iAA63,RA63,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

sub58731-22020

main58731-22020-24iAA63,RA63,TA61,63..CP..(GT,SE,ST)198109-198507

BLUE,BLUE,TRIM8#

sub58731-22020

main58731-22020-26iAA63,RA63,TA61,63..CP..(GT,SE,ST)198109-198405

DARK BROWN,BROWN,TRIM4#

sub58731-22020

64760PANEL ASSY, DECK SIDE TRIM, LH

main64740-14090-01iAA6#,RA63,SA60,TA61,63..CP198109-198507

BLACK,BLACK,TRIM2#

main64740-14090-04iAA6#,RA63,SA60,TA61,63..CP..(GT,SE,SG,ST)198109-198507

BLUE,BLUE,TRIM8#

main64740-14090-06iTA63..CP198109-198507

DARK BROWN,BROWN,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-14010iAA60,RA63,SA60,TA61,63..CP198109-198305

main64770-14040iAA6#,SA60,TA63..CP198305-198507

9015960070

main90159-60070

9018303002

main90183-03002

9018305094

main90183-05094

9018904025

main90189-04025

9018905009

main90189-05009

9046805017

main90468-05017

9166640616

main91666-40616

9354044010

main93540-44010

9354054012

main93540-54012

9356055012

main93560-55012

9356055014

main93560-55014

9361015016

main93610-15016

31 parts on this diagram · 2 diagrams in section
