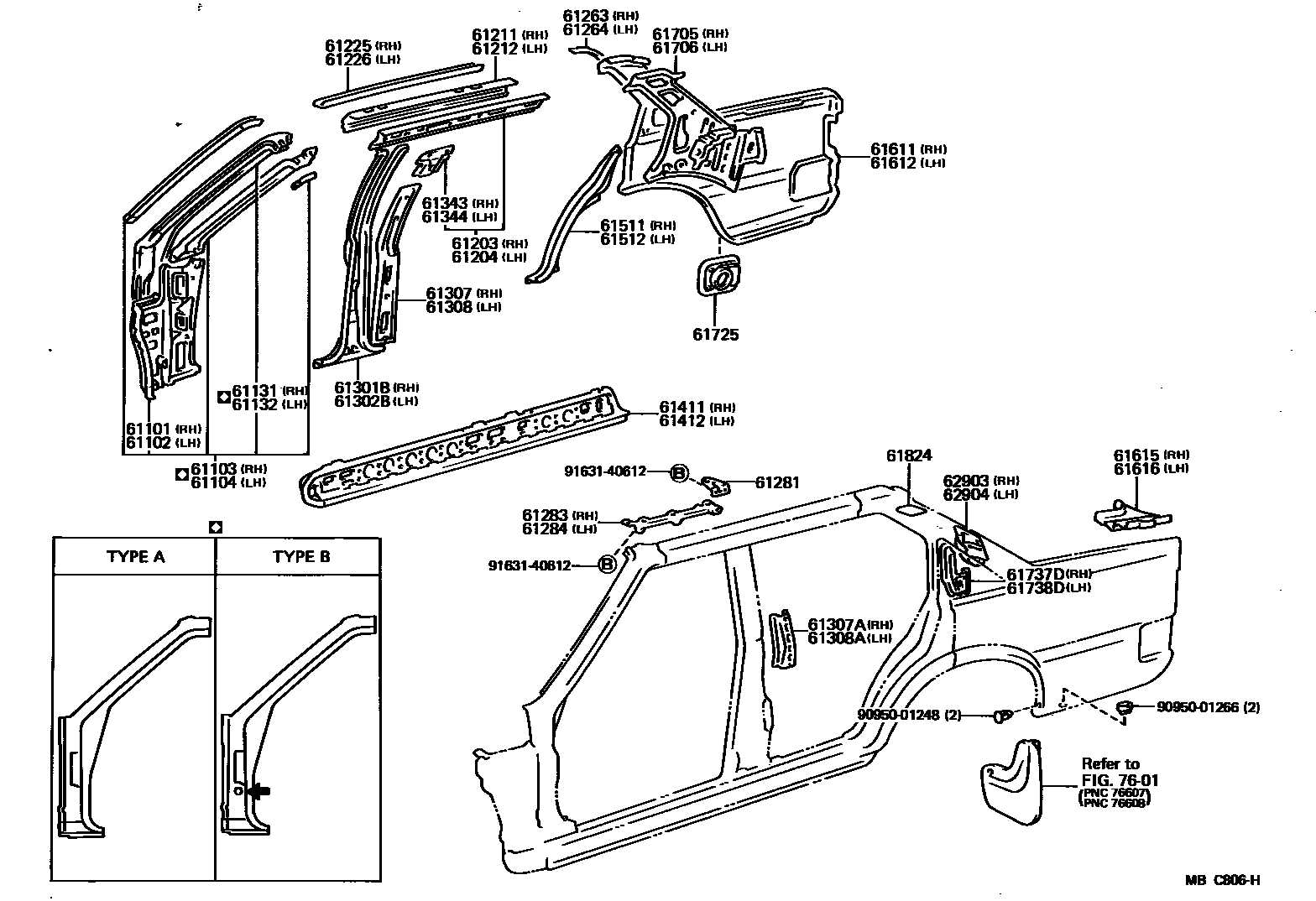

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-14080iAA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

W/RR ANTENNA

main61101-14100iAA60,CA6#,KA67,SA60,TA63,67..(SED,V,WG)..(DLX,GTT,SG,ST,STD)198109-198804

W/FENDER ANTENNA

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-14090iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-14160iAA6#,CA60,TA63..SED..(GT,GTT,SE)198305-198507

W/RR ANTENNA,TYPE A

main61021-14170iAA6#,CA6#,KA67,SA60,TA63,67..(SED,V,WG)..(DLX,GT,GTT,SG,ST,STD)198109-198804

W/FENDER ANTENNA,TYPE A

main61021-14180iAA60,CA60,SA60..SED..SE198305-198405

W/RR ANTENNA,TYPE B

main61021-14240iAA63,SA60,TA63..(SED,WG)..(GT,GTT,ST)198410-198507

W/FENDER ANTENNA,TYPE B

main61021-14260iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198305-198507

W/FENDER ANTENNA,TYPE A

main61021-14270iAA60,RA63,TA61,63..CP..(GT,GTT,SE)198109-198305

W/RR ANTENNA,TYPE B

main61021-14300iAA60..CP..SG198305-198507

JEUNE,TYPE B

main61021-14310iAA60,CA60,SA60..SED..SG198305-198410

JEUNE OR TYPE B

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-14190iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

W/O HARNESS HOLE(TYPE A)

main61022-14200iAA63,CA60,SA60,TA63..SED,WG198305-198804

W/HARNESS HOLE(TYPE B)

main61022-14280iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198305-198507

W/O HARNESS HOLE(TYPE A)

main61022-14290iAA60..CP..SE198305-198507

JEUNE(TYPE B)

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61027-14120iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

W/O HARNESS HOLE(TYPE A)

main61027-14130iCA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE)198109-198305

W/HARNESS HOLE(TYPE B)

main61027-14140iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198305-198507

W/O HARNESS HOLE(TYPE A)

main61027-14150iAA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)198109-198507

W/HARNESS HOLE(TYPE B)

main61027-14160iTA63..SED..GTT198210-198305

W/HARNESS HOLE(TYPE B)

main61027-14170iAA60..CP..SG198310-198507

MY ROAD(TYPE B)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61028-14100iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

W/O HARNESS HOLE(TYPE A)

main61028-14110iCA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE)198109-198305

W/HARNESS HOLE(TYPE B)

main61028-14120iAA6#,SA60,TA63..CP..(GT,GTT,SG,ST)198305-198507

W/O HARNESS HOLE(TYPE A)

main61028-14130iAA60..CP..SG198310-198507

MY ROAD(TYPE B)

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-14100iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198512

main61203-14110iAA63,CA60,SA60,TA63..SED..(GT,GTT,SE)198305-198507

W/SUN ROOF

main61203-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-14100iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198512

main61204-14110iAA63,CA60,SA60,TA63..SED..(GT,GTT,SE)198305-198507

W/SUN ROOF

main61204-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

61211RAIL, ROOF SIDE, OUTER RH

main61211-14110iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main61211-14140iAA6#,RA63,SA60,TA61,63..CP198109-198507

main61211-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

61212RAIL, ROOF SIDE, OUTER LH

main61212-14110iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main61212-14140iAA6#,RA63,SA60,TA61,63..CP198109-198507

main61212-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

61225CHANNEL, ROOF DRIP, CENTER RH

main61265-14020iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main61265-14030iAA6#,RA63,SA60,TA61,63..CP198109-198507

main61265-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

61226CHANNEL, ROOF DRIP, CENTER LH

main61266-14020iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main61266-14030iAA6#,RA63,SA60,TA61,63..CP198109-198507

main61266-91C01iCA67,KA67,SA60,TA67..V,WG198109-198804

61263CHANNEL, ROOF DRIP, REAR RH

main61267-14040iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

61264CHANNEL, ROOF DRIP, REAR LH

main61268-14040iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-14020×2iCA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)198109-198305

main61281-14040×2iAA63,SA60,TA63..CP..(GT,GTT,SE)198305-198507

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-14020iCA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)198109-198305

main61283-14040iAA63,SA60,TA63..CP..(GT,GTT,SE)198305-198507

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-14020iCA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)198109-198305

main61284-14040iRA63,TA61,63..CP198109-198305

61301BPILLAR, CENTER BODY, OUTER RH

main61301-14060iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61302BPILLAR, CENTER BODY, OUTER LH

main61302-14060iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61343-14050iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61307AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61344-14050iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61308AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61338-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-14040iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-14040iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61411PANEL, ROCKER, OUTER RH

main61401-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

sub61401-20380

main61401-14060iAA6#,RA63,SA60,TA61,63..CP198109-198507

sub61401-20380

61412PANEL, ROCKER, OUTER LH

main61402-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

sub61402-20380

main61402-14060iAA6#,RA63,SA60,TA61,63..CP198109-198507

sub61402-20380

61511PILLAR, QUARTER LOCK, RH

main61511-14900iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61512PILLAR, QUARTER LOCK, LH

main61512-14901iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

61611PANEL, QUARTER, RH

main61601-1B250iAA60,SA60..CP..SG198109-198507

main61601-1B260iAA60..CP..SG198208-198212

ROAD RUNNER 2

main61601-91790iCA67,KA67,TA67198109-198804

main61601-91792iSA60..WG198202-198708

main61601-91796iSA60..ST198708-198804

main61611-14420iAA60,CA60,SA60..SED..(DLX,SG,STD)198109-198712

main61611-14430iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)198109-198507

URETHANE BUMPER

61612PANEL, QUARTER, LH

main61602-14880iAA60,SA60..CP..SG198109-198507

main61602-14890iAA60..CP..SG198301-198303

THE ROAD RUNNER

main61602-91790iCA67,KA67,TA67198109-198804

main61602-91791iSA60..WG198202-198804

sub61602-91793

main61612-14390iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/BACK SONAR

main61612-14410iAA60..SED..SG198202-198207

ROAD RUNNER

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-14080iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-14070iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-14902iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main61705-14904iAA6#,RA63,SA60,TA61,63..CP198109-198507

main61705-91C01iCA67,KA67,TA67198109-198804

main61705-91C02iSA60..WG198202-198804

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-14902iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

main61706-14904iAA6#,RA63,SA60,TA61,63..CP198109-198507

main61706-91C01iCA67,KA67,TA67198109-198804

main61706-91C02iSA60..WG198202-198804

61725BOX, FUEL INLET

main61709-14080iAA60..DLX,STD198109-198804

main61725-14130iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST198109-198804

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-14040iAA63,RA63,TA61,63..SED198109-198712

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-14040iAA63,RA63,TA61,63..SED198109-198712

61824PLATE, NOISE CONTROL, NO.1

main61824-14030×2iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-14020iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-14020iAA6#,CA60,RA63,SA60,TA61,63..SED198109-198712

7601

9095001248

main90950-01248

9095001266

main90950-01266

9163140612

main91631-40612

45 parts on this diagram · 4 diagrams in section
