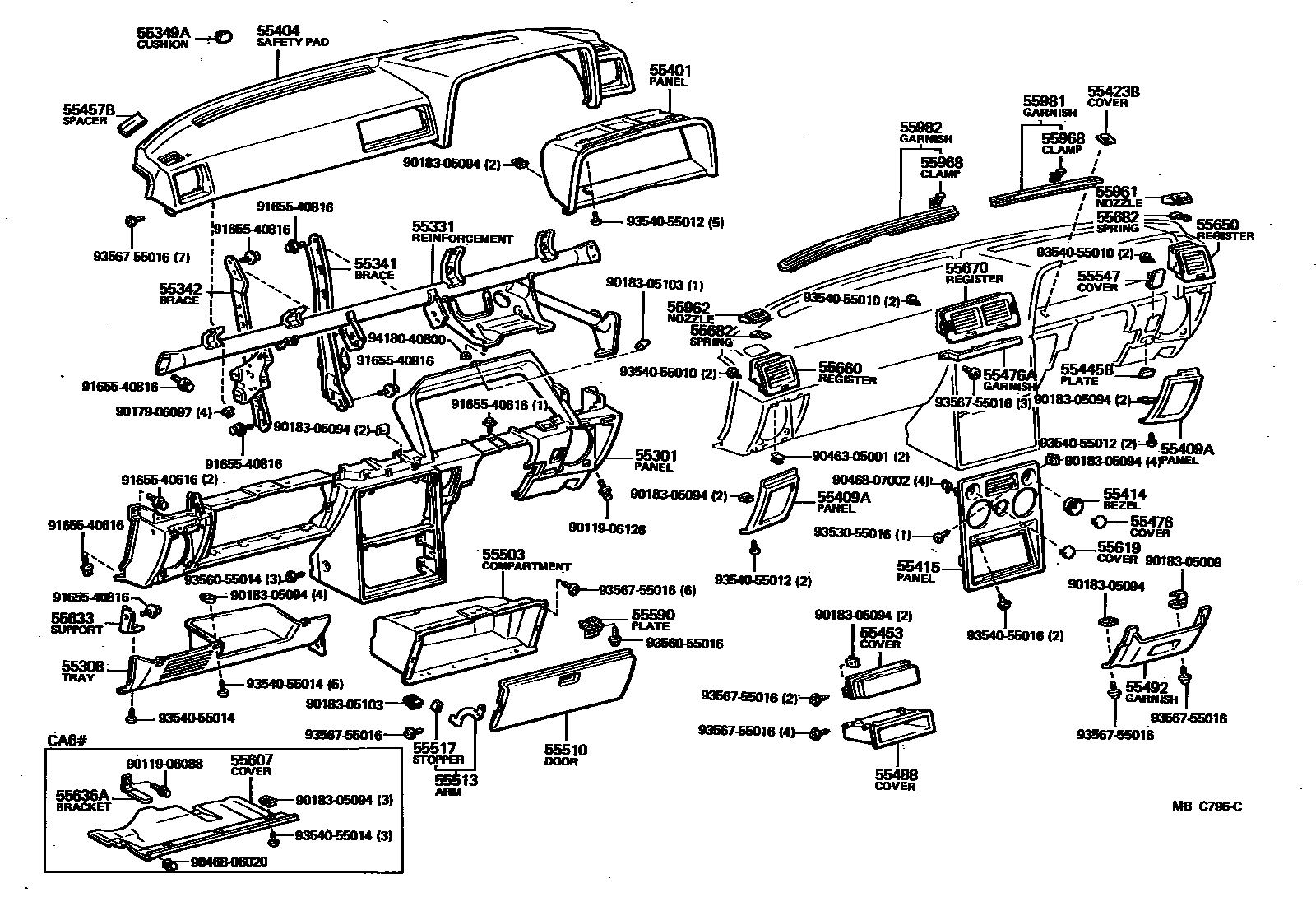

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55312-14060-01iCA67,TA67198109-198308

BLACK,BLACK,TRIM2#

sub55312-14061

main55312-14060-04iAA60,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST198109-198305

BLUE,BLUE,TRIM8#

sub55312-14061

main55312-14060-06iCA67,TA67..DLX,SG198109-198308

DARK BROWN,BROWN,TRIM4#

sub55312-14061

main55312-14061-01iAA6#,CA60,SA60,TA63198305-198804

BLACK,BLACK,TRIM2#

main55312-14061-04iAA6#,CA60,SA60,TA63..DLX,GT,GTT,SE,SG,ST198305-198804

BLUE,BLUE,TRIM8#

main55312-14061-06iAA6#,CA60,SA60,TA63..DLX,GT,GTT,SE,SG,ST198305-198804

DARK BROWN,BROWN,TRIM4#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14160-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

sub55601-14160

main55601-14160-04iTA63198109-198804

BLUE,BLUE,TRIM8#

sub55601-14160

main55601-14160-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

sub55601-14160

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-14060iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14070iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14110iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55349ACUSHION, INSTRUMENT PANEL

main55349-14050iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-14490iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14400-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

sub55401-14400

main55401-14400-04iTA63198109-198804

BLUE,BLUE,TRIM8#

sub55401-14400

main55401-14400-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

sub55401-14400

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55408-14060-01iAA60,CA67,TA67;CA60,SA60,TA63..(CP,SED)..(GTT,SG,ST)198109-198804

RH,BLACK,BLACK,TRIM2#

main55408-14060-04iAA6#,CA60,SA60,TA63..DLX,GT,GTT,SE,SG,ST198109-198804

RH,BLUE,BLUE,TRIM8#

main55408-14060-06iAA60,CA67;CA60,SA60,TA63,67..DLX,SG,ST198109-198804

RH,DARK BROWN,BROWN,TRIM4#

main55408-14070-01iCA60,RA63,SA60,TA61,63..GT,SE198109-198305

RH,BLACK,BLACK,TRIM2#

main55408-14070-04iCA60,RA63,SA60,TA61,63..GT,SE198109-198305

RH,BLUE,BLUE,TRIM8#

main55408-14070-06iCA60,RA63,SA60,TA61,63..GT,SE198109-198305

RH,DARK BROWN,BROWN,TRIM4#

main55409-14060-01iAA6#,CA6#,KA67,SA60,TA6#198109-198804

LH,BLACK,BLACK,TRIM2#

main55409-14060-04iAA60;CA60,SA60,TA63..SG,ST198109-198804

LH,BLUE,BLUE,TRIM8#

main55409-14060-06iAA60,CA67;CA60,SA60,TA63,67..DLX,SG,ST198109-198804

LH,DARK BROWN,BROWN,TRIM4#

main55409-14070-01iCA60,RA63,SA60,TA61,63..GT,SE198109-198305

LH,BLACK,BLACK,TRIM2#

main55409-14070-04iCA60,RA63,SA60,TA61,63..GT,SE198109-198305

LH,BLUE,BLUE,TRIM8#

main55409-14070-06iCA60,RA63,SA60,TA61,63..GT,SE198109-198305

LH,DARK BROWN,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-14050iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,GTT,SE,SG,ST198109-198804

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-14050iAA60,KA67,TA67..STD198109-198804

sub55412-14070

main55412-14060iAA60,CA6#,SA60,TA63,67..DLX,SE,SG,ST198109-198208

sub55412-14070

main55412-14070iRA63,TA61198109-198804

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-14070iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main55423-14080iAA63,RA63,SA60,TA61,63..GT,GTT,SE198109-198507

W/DIGITAL METER

main55423-14080iAA60..SG198202-198207

ROAD RUNNER

main55423-14080iAA60,SA60..SG198208-198212

ROAD RUNNER 2

main55423-14080iAA60,SA60..SG198301-198303

THE ROAD RUNNER

55445BPLATE, INSTRUMENT PANEL FINISH

main55548-14020iAA60..SG198202-198207

ROAD RUNNER

main55548-14020iAA60,SA60..SG198208-198212

ROAD RUNNER 2

main55548-14020iAA60,SA60..SG198301-198303

THE ROAD RUNNER

main55548-14020iAA6#,CA60,RA63,SA60,TA61,63..GT,SE198109-198507

main55548-14020iTA63..SED..GTT198210-198507

W/DIGITAL METER

55453COVER, RADIO TUNER OPENING

main55522-14080iAA60,KA67,TA67..STD198109-198804

sub55522-20070

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010iAA60,KA67,TA67..STD198109-198804

55476AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3

main55476-14010-01iAA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

main55476-14010-04iTA63198109-198804

BLUE,BLUE,TRIM8#

main55476-14010-06iTA63198109-198804

DARK BROWN,BROWN,TRIM4#

55488COVER, STEREO OPENING

main55521-14050iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-14140-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

main55432-14140-04iTA63198109-198804

BLUE,BLUE,TRIM8#

main55432-14140-06iTA63198109-198804

DARK BROWN,BROWN,TRIM4#

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-14180iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14150-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

main55550-14150-04iTA63198109-198804

BLUE,BLUE,TRIM8#

main55550-14150-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14090iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-14030-01iAA60,CA67,KA67,TA67198109-198804

BLACK,BLACK,TRIM2#

main55547-14030-04iAA60..DLX,SG,ST198109-198804

BLUE,BLUE,TRIM8#

main55547-14030-06iAA60,CA67,KA67,TA67..DLX,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198412

main55590-14020iAA6#,CA67,SA60,TA63198412-198804

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14060iCA6#198202-198804

55619COVER, SWITCH HOLE

main55477-10010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55633-14040iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-24010iCA6#198202-198804

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14090-01iAA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

sub55650-14090

main55650-14090-04iAA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST198109-198804

BLUE,BLUE,TRIM8#

sub55650-14090

main55650-14090-06iTA63198109-198804

DARK BROWN,BROWN,TRIM4#

sub55650-14090

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14090-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

sub55660-14090

main55660-14090-04iTA63198109-198804

BLUE,BLUE,TRIM8#

sub55660-14090

main55660-14090-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

sub55660-14090

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22060-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

sub55670-22060

main55670-22060-14iTA63198109-198804

BLUE,BLUE,TRIM8#

sub55670-22060

main55670-22060-16iTA63198109-198804

DARK BROWN,BROWN,TRIM4#

sub55670-22060

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14060-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

sub55961-14060

main55961-14060-04iTA63198109-198804

BLUE,BLUE,TRIM8#

sub55961-14060

main55961-14060-06iTA63198109-198804

DARK BROWN,BROWN,TRIM4#

sub55961-14060

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14040-01iSA60..WG198109-198804

BLACK,BLACK,TRIM2#

sub55962-14040

main55962-14040-04iAA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST198109-198804

BLUE,BLUE,TRIM8#

sub55962-14040

main55962-14040-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

sub55962-14040

55968CLAMP, DEFROSTER NOZZLE

main55968-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

RH

main55968-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

LH

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-14030-01iAA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

main55981-14030-04iAA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST198109-198804

BLUE,BLUE,TRIM8#

main55981-14030-06iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST198109-198804

DARK BROWN,BROWN,TRIM4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-14030-01iAA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V198109-198804

BLACK,BLACK,TRIM2#

main55982-14030-04iTA63198109-198804

BLUE,BLUE,TRIM8#

main55982-14030-06iTA63198109-198804

DARK BROWN,BROWN,TRIM4#

9011906088

main90119-06088

9011906126

main90119-06126

9017906097

main90179-06097

9018305009

main90183-05009

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9046806020

main90468-06020

9046807002

main90468-07002

9165540616

main91655-40616

9165540816

main91655-40816

9353055016

main93530-55016

9354055010

main93540-55010

9354055012

main93540-55012

9354055014

main93540-55014

9354055016

main93540-55016

9356055014

main93560-55014

9356055016

main93560-55016

9356755016

main93567-55016

9418040800

main94180-40800

58 parts on this diagram · 1 diagram in section
