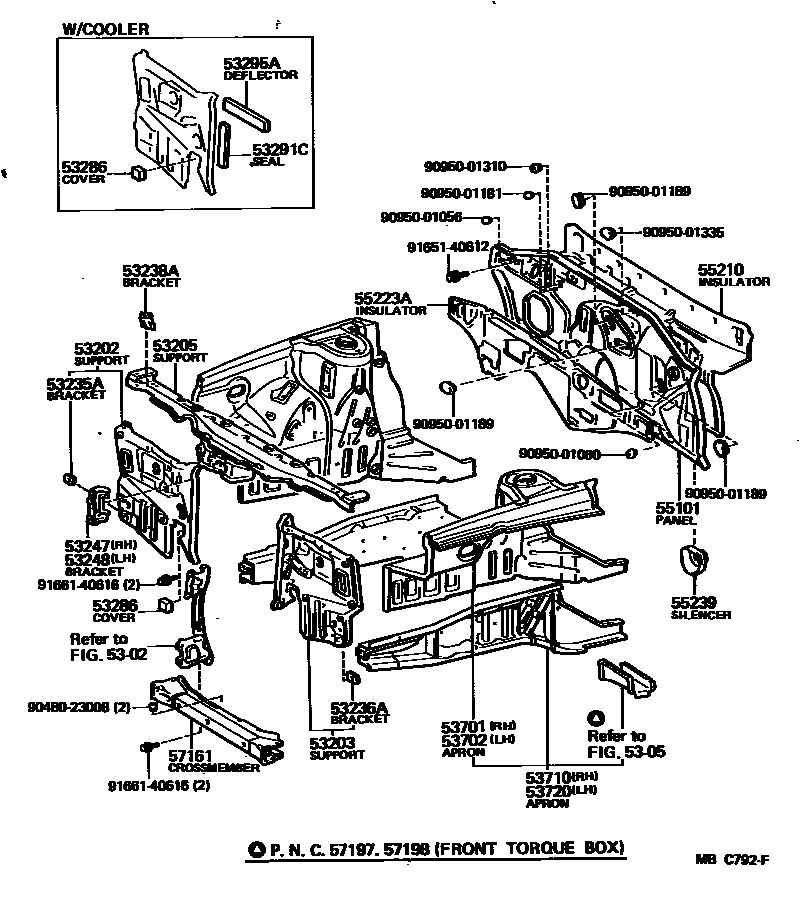

FRONT FENDER APRON & DASH PANEL

5302

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-14110iAA63,CA6#,KA67,RA63,TA6#..DLX,GT,SE,SG,ST,STD198109-198708

main53202-14120iAA60,SA60198109-198804

main53202-14190iCA67,KA67198708-198804

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-14170iAA6#,RA63,SA60,TA61,63198109-198804

main53203-14180iKA67,TA67198109-198804

main53203-14230iCA6#198202-198804

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14040iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

53235ABRACKET, HORN MOUNTING, RH

main53235-14040iAA63,CA6#,RA63,TA6#198109-198804

53236ABRACKET, HORN MOUNTING, LH

main53236-14030iKA67,TA67198109-198804

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-14060×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53247-14060iAA6#,RA63,SA60,TA61,63..CP,WG198109-198804

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53248-14040iAA6#,RA63,SA60,TA61,63..CP,WG198109-198804

53286COVER, FRONT BUMPER ARM HOLE

main53285-14040×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14020×2iAA63,KA67,TA6#198109-198804

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-14040iTA67..MTM;AA63,KA67,TA61198109-198804

main53293-14050iTA63;TA67..3FC198109-198507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14912iKA67,TA67198109-198804

main53701-14913iAA60,CA60,SA60198109-198210

main53701-14914iRA63,TA61,63198109-198210

main53701-14924iAA6#,CA60,SA60,TA61,63198210-198804

sub53701-14922

main53701-20922iCA67198202-198804

sub53701-20928

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14912iAA60198109-198210

main53702-14913iTA67198109-198308

main53702-14914iCA60,RA63,SA60,TA61,63198109-198210

main53702-14921iCA67198202-198804

main53702-14922iAA6#,CA60,SA60,TA61,63198210-198804

main53702-14929iKA67198308-198508

main53702-14932iKA67198508-198804

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-14900iAA6#,CA60,RA63,SA60,TA61,63198109-198804

main53710-14901iKA67,TA67198109-198804

main53710-20900iCA67198202-198804

sub53710-20906

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-14902iTA67198109-198308

main53720-14909iCA67198202-198804

main53720-14910iCA60,RA63,SA60,TA61,63198109-198210

main53720-14911iAA63,CA60,SA60,TA61,63198210-198804

main53720-14920iAA60198109-198804

main53720-14921iKA67198308-198508

main53720-14922iKA67198508-198804

55101PANEL SUB-ASSY, DASH

main55101-14910iAA60198109-198303

main55101-14911iSA60198109-198303

main55101-14914iRA63,TA61,63198109-198303

main55101-14916iCA6#198202-198303

main55101-14917iTA67198109-198303

main55101-14922iAA60198303-198804

main55101-14923iKA67,TA63198303-198804

main55101-14925iSA60198303-198804

main55101-14928iCA6#198303-198804

main55101-14929iTA67198303-198308

main55101-14933iAA63198305-198507

55210INSULATOR ASSY, DASH PANEL

main55210-14160iAA6#198109-198804

main55210-14170iCA6#,RA63,SA60,TA6#198109-198804

main55210-14360iKA67198308-198804

55223AINSULATOR, DASH PANEL, OUTER

main55223-14010iCA6#198202-198804

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14060iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57161CROSSMEMBER, FRONT

main57104-14090iAA60,CA6#,RA63,SA60,TA6#198109-198305

main57104-14100iAA6#,SA60,TA63..CP,WG198305-198601

9048023008

main90480-23008

9095001056

main90950-01056

9095001060

main90950-01060

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9095001335

main90950-01335

9165140612

main91651-40612

9166140616

main91661-40616

31 parts on this diagram · 1 diagram in section
