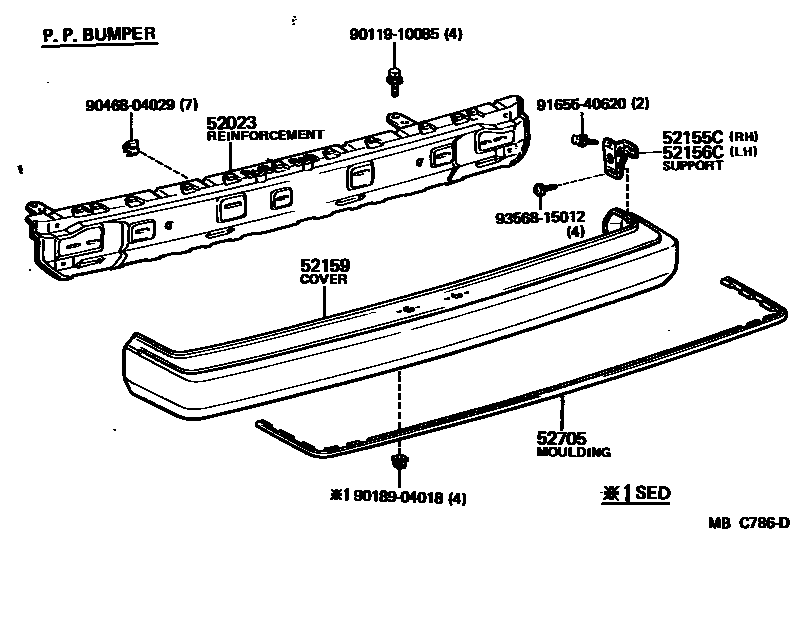

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-14060iAA60,CA60,SA60..DLX,SG,STD198109-198804

main52023-14070iAA60,SA60..SG198208-198212

ROAD RUNNER 2

main52023-14070iAA60..SG198202-198207

ROAD RUNNER

main52023-14070iAA60,SA60..SG198301-198303

THE ROAD RUNNER

main52023-14070iAA6#,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST)198109-198507

*UB

main52023-14070iAA60,SA60..DLX,SG198305-198804

ROAD RUNNER,MY ROAD

main52023-14130iAA60..SED..SG198206-198405

JEUNE

main52023-14130iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/*BS

main52023-91C01iCA67,KA67,TA67198109-198804

main52023-91C03iSA60..WG198202-198804

*UB

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52106-91C01iCA67,KA67,TA67198109-198804

main52155-14081iAA60,CA60,SA60..DLX,SG,STD198109-198804

main52155-14081iAA60..SED..SG198206-198405

JEUNE

main52155-14081iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/*BS

main52155-14100iAA60,SA60..DLX,SG198305-198804

ROAD RUNNER,MY ROAD

main52155-14100iAA60..SG198202-198207

ROAD RUNNER

main52155-14100iAA60,SA60..SG198208-198212

ROAD RUNNER 2

main52155-14100iAA60,SA60..SG198301-198303

THE ROAD RUNNER

main52155-14100iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST198109-198804

*UB

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52107-91C01iCA67,KA67,TA67198109-198804

main52155-14100iAA60..SG198203-198207

ROAD RUNNER

main52155-14100iAA60,SA60..SG198301-198303

THE ROAD RUNNER

main52155-14100iAA60,SA60..SG198208-198212

ROAD RUNNER 2

main52155-14100iAA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST198109-198804

*UB

main52155-14100iAA60,SA60..DLX,SG198305-198804

ROAD RUNNER,MY ROAD

main52156-14081iAA60,CA60,SA60..DLX,SG,STD198109-198804

main52156-14081iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/*BS

main52156-14081iAA60..SED..SG198206-198405

JEUNE

52159COVER, REAR BUMPER

main52159-14090iAA60,SA60..SED..(DLX,SG)198305-198712

ROAD RUNNER,MY ROAD

main52159-14090iAA60..SED..SG198202-198207

ROAD RUNNER

main52159-14090iAA60,SA60..SED..SG198208-198212

ROAD RUNNER 2

main52159-14090iAA60,SA60..SED..SG198301-198303

THE ROAD RUNNER

main52159-14090iAA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)198109-198405

URETHANE BUMPER

main52159-14100iAA60..CP..SG198301-198303

THE ROAD RUNNER

main52159-14100iAA60..CP..SG198202-198207

ROAD RUNNER

main52159-14100iAA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE,ST)198109-198507

URETHANE BUMPER

main52159-14100iAA60..CP..SG198208-198212

ROAD RUNNER 2

main52159-14100iAA60..CP..SG198305-198804

ROAD RUNNER,MY ROAD

main52159-14110iAA60,CA60,SA60..SED..(DLX,SG,STD)198109-198712

main52159-14120iAA60,SA60..CP..SG198109-198507

main52159-14260iAA60..SED..SG198206-198405

JEUNE

main52159-14260iAA60,CA60,SA60,TA63..SED..(SE,ST)198208-198405

W/*BS

main52159-14290-02iAA63,TA63..SED198405-198507

*UB,RED,RED,3E6

sub52159-14909

main52159-14290-03iAA63,TA63..SED198405-198507

*UB,WORM GRAY-M,WARM GRAY METALLIC,153

sub52159-14909

main52159-14290-08iAA63,TA63..SED198405-198507

*UB,WHITE,WHITE,041

sub52159-14909

main52159-14290-09iAA63,TA63..SED198405-198507

*UB,YELLOW,YELLOW,558

sub52159-14909

main52159-14300-02iAA63,TA63..CP198405-198507

*UB,RED,RED,3E6

sub52159-14910

main52159-14300-03iAA63,TA63..CP198405-198507

*UB,WORM GRAY-M,WARM GRAY METALLIC,153

sub52159-14910

main52159-14300-08iAA63,TA63..CP198405-198507

*UB,WHITE,WHITE,041

sub52159-14910

main52159-14300-09iAA63,TA63..CP198405-198507

*UB,YELLOW,YELLOW,558

sub52159-14910

main52159-91C01iCA67,KA67,TA67198109-198804

main52159-91C02iSA60..WG198202-198804

URETHANE BUMPER

52705MOULDING SUB-ASSY, REAR BUMPER

main52751-14030iAA60..DLX,STD198109-198804

main52751-14030iAA60,SA60,TA63..SED..ST198208-198405

W/BACK SONAR

main52751-14040iAA60,CA60,SA60..SG198109-198804

main52751-14040iAA60,CA60,SA60..SED..SE198208-198405

W/BACK SONAR

main52751-14050iAA60..SG198206-198804

JEUNE

main52751-91C01iCA67,KA67,TA67..DLX,STD198109-198804

main52751-91C02iCA67,KA67,TA67..SG198109-198804

9011910085

main90119-10085

9018904018

main90189-04018

9046804029

main90468-04029

9165540620

main91655-40620

9356815012

main93568-15012

10 parts on this diagram · 4 diagrams in section
