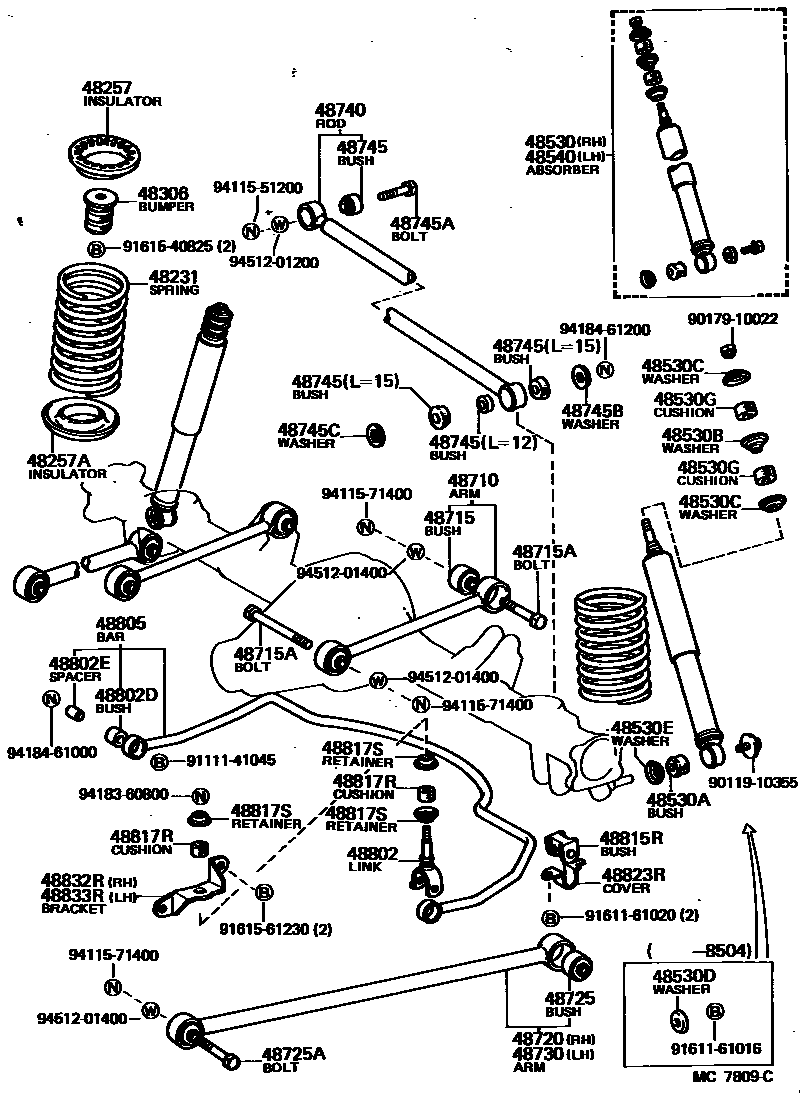

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48231SPRING, COIL, REAR

main48231-14500×2iCA60198305-198401

main48231-14540×2iTA61..SED198109-198305

main48231-14570×2iAA60..CP198109-198305

main48231-14600×2iTA63..SE,ST198109-198305

main48231-14630×2iRA63;TA61..CP198109-198305

sub48231-14690

main48231-14650×2iTA63..GTT198210-198211

main48231-14660×2iTA63..GTT198211-198305

main48231-14680×2iAA63;TA63..CP198305-198507

main48231-15030×2iSA60..WG198202-198804

main48231-20350×2iCA60,SA60..CP,SED198401-198712

48257INSULATOR, REAR COIL SPRING

main48257-12020×2iAA60,CA60,SA60198207-198804

main48257-14020×2iAA60,CA60,SA60198109-198207

main48257-22030×2iAA63,RA63,TA61,63198109-198507

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030×2iAA60,CA60,SA60198109-198804

main48258-22040iRA63,TA61,63198109-198305

RH

main48258-22041iAA63,TA63198305-198507

RH

main48258-22050iAA63,RA63,TA61,63198109-198507

LH

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iAA60,CA60,SA60198109-198804

main48306-19055×2iCA67,KA67,TA67198109-198804

main48341-22060×2iAA63,RA63,TA61,63198109-198507

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-14540iSA60..ST198511-198804

main48531-14590iAA60198511-198712

main48531-15030iCA67,KA67198511-198804

main48531-19716iTA63..SE,ST198109-198305

sub48531-19718

main48531-19795iCA60198202-198401

sub48531-19796

main48531-19805iSA60..WG198202-198511

sub48531-19806

main48531-19825iRA63,TA61198109-198305

sub48531-19826

main48531-19835iCA67,KA67,TA67198109-198511

sub48531-19836

main48531-19845iTA63..GTT198210-198305

sub48531-19846

main48531-19875iAA60,SA60..CP,SED198109-198401

sub48531-19876

main48531-20250iSA60..SG198511-198712

main48531-80001iCA60,SA60..CP,SED198401-198511

sub48531-80208

main48531-80002iAA63198308-198507

sub48531-80209

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iAA6#,CA6#,RA63,SA60,TA6#198109-198708

main90385-16004×2iKA67198708-198804

LWR

main90948-01003×4iCA67,KA67198202-198804

UPR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02050×2iAA60,CA6#,RA63,SA60,TA6#198109-198302

main90948-02075×2iAA63,TA61,63198302-198507

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002×4iAA63,KA67,RA63,TA61,63198109-198804

LWR

main90948-02045×2iAA60,CA60,SA60198109-198804

UPR

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198504

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002×2iAA60,CA60,SA60198109-198804

LWR,OD=30,ID=10

main90540-10005×2iAA60,CA60,SA60198109-198804

UPR,OD=30,ID=10&14

main90948-01003×4iCA67,KA67,TA67198109-198804

main90948-01019×2iAA63,RA63,TA61,63198109-198507

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-14540iSA60..ST198511-198804

main48531-14590iAA60198511-198712

main48531-15030iCA67,KA67198511-198804

main48531-19716iTA63..SE,ST198109-198305

sub48531-19718

main48531-19795iCA60198202-198401

sub48531-19796

main48531-19805iSA60..WG198202-198511

sub48531-19806

main48531-19825iRA63,TA61198109-198305

sub48531-19826

main48531-19835iCA67,KA67,TA67198109-198511

sub48531-19836

main48531-19845iTA63..GTT198210-198305

sub48531-19846

main48531-19875iAA60,SA60..CP,SED198109-198401

sub48531-19876

main48531-20250iSA60..SG198511-198712

main48531-80001iCA60,SA60..CP,SED198401-198511

sub48531-80208

main48531-80002iAA63198308-198507

sub48531-80209

48710ARM ASSY, UPPER CONTROL

main48710-14040×2iAA60,CA60,SA60198109-198804

48715BUSH, UPPER CONTROL ARM

main48702-22060×4iAA60,CA60,SA60198109-198804

sub48702-28050

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14006×2iAA60,CA60,SA60198109-198804

L=77

main90105-14009×2iAA60,CA60,SA60198109-198804

L=141

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iAA60,CA60,SA60198109-198804

48725BUSH, LOWER CONTROL ARM

main48702-14020×4iAA60,CA60,SA60198109-198804

main48725-22030×2iAA63,RA63,TA61,63198109-198507

OUTER

main48725-22040×2iAA63,RA63,TA61,63198109-198507

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14006×2iAA60,CA60,SA60198109-198804

L=77

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iAA60,CA60,SA60198109-198804

48740ROD ASSY, REAR LATERAL CONTROL

main48740-20030iAA60,CA60,SA60198109-198804

48745BUSH, LATERAL CONTROL ROD

main48706-14010iAA60,CA60,SA60198109-198804

BODY SIDE

main90385-20001×2iAA60,CA60,SA60198109-198804

L=15,HOUSING SIDE

main90386-20001iAA60,CA60,SA60198109-198804

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90106-12002iAA60,CA60,SA60198109-198804

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iAA60,CA60,SA60198109-198804

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iAA60,CA60,SA60198109-198804

48802LINK SUB-ASSY, STABILIZER

main48802-14030×2iAA63,RA63,TA61,63198109-198507

main48802-14040×2iSA60198109-198804

48802DBUSH, STABILIZER LINK

main90385-11021×2iAA63,RA63,SA60,TA61,63198109-198507

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iAA63,RA63,SA60,TA61,63198109-198507

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14010iSA60..WG198202-198804

D=11,W/POWER STEERING

main48805-14100iSA60..CP,WG198305-198804

D=14

main48805-14110iSA60..CP,SED198109-198712

D=15,W/POWER STEERING

main48805-14140iTA63198305-198507

W/LSD,OD=14

main48805-14150iRA63198111-198210

D=13,W/LSD

main48805-14170iRA63,TA63..GT,GTT198109-198507

D=15

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030×2iRA63,TA63..GT,GTT198109-198507

main48815-14050×2iTA63..SE,ST198109-198305

W/POWER STEERING

main48815-14060×2iTA63..SE,ST198109-198305

main48815-22020×2iSA60..WG198202-198804

W/POWER STEERING

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iAA63,RA63,SA60,TA61,63198109-198804

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iAA63,RA63,SA60,TA61,63198109-198804

T=1.2

main90948-02025×2iAA63,RA63,SA60,TA61,63198109-198804

T=1.0

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-14020×2iAA63,RA63,TA61,63198109-198507

main48832-22020×2iSA60198109-198804

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-14030iSA60198109-198804

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-14020iSA60198109-198804

9011910355

main90119-10355

9017910022

main90179-10022

9111141045

main91111-41045

9161161016

main91611-61016

9161161020

main91611-61020

9161540825

main91615-40825

9161561230

main91615-61230

9411551200

main94115-51200

9411571400

main94115-71400

9418360800

main94183-60800

9418461000

main94184-61000

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

48 parts on this diagram · 4 diagrams in section
