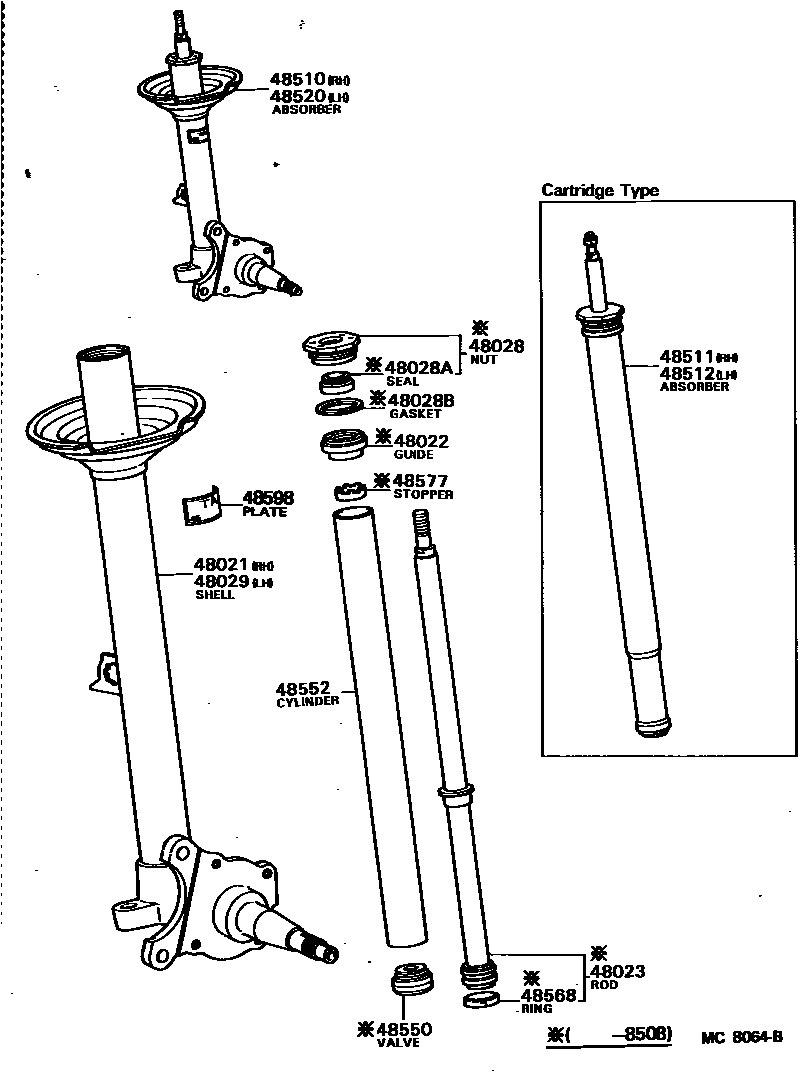

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14060iAA60,CA6#,KA67,SA60,TA67198109-198508

main48021-14070iAA63,RA63,TA61,63198109-198507

main48021-20140iAA60,CA67,KA67,SA60¥16,500198508-198804

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#¥2,320198109-198508

sub48022-22040¥2,290

sub90430-42001¥310

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-14052iCA67,KA67,SA60,TA67..V,WG¥8,900198109-198508

main48023-14100iAA60,CA60,SA60..CP,SED¥10,100198109-198508

main48023-14130iTA63..SE,ST198109-198305

main48023-14140iRA63,TA61,63..GT,GTT198109-198305

main48023-20090iAA63,TA63198305-198507

main48023-20100iCA60,SA60..CP,SED¥9,700198401-198508

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011iAA6#,CA6#,KA67,RA63,SA60,TA6#¥2,430198109-198508

sub48028-14012¥2,430

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001iAA6#,CA6#,KA67,RA63,SA60,TA6#¥270198109-198508

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206iAA6#,CA6#,KA67,RA63,SA60,TA6#¥370198109-198508

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-14010iAA60,CA6#,KA67,SA60,TA67198109-198508

main48029-14020iAA63,RA63,TA61,63198109-198804

main48029-20140iAA60,CA67,KA67,SA60198508-198804

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-14150iCA67,KA67,SA60,TA67..V,WG¥33,700198109-198508

sub48510-14160¥33,700

main48510-14160iAA60,CA60,SA60..CP,SED¥33,700198109-198508

sub48510-14161¥33,700

main48510-14190iTA63..SE,ST¥33,700198109-198305

sub48510-14191¥33,700

main48510-14200iRA63,TA61,63..GT,GTT¥34,000198109-198305

main48510-20140iAA63,TA63¥33,700198305-198507

main48510-20150iCA60,SA60..CP,SED¥35,200198401-198508

main48510-20310iCA67,KA67¥33,300198508-198804

sub48510-20321¥33,300

main48510-20320iSA60..SG¥33,100198508-198712

sub48510-20321¥33,300

main48510-20330iAA60;SA60..ST¥32,900198508-198804

sub48510-20310¥33,300

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-14140iCA67,KA67,SA60,TA67..V,WG¥14,400198109-198508

main48511-14150iAA60,CA60,SA60..CP,SED¥14,400198109-198401

main48511-14160iTA63..SE,ST¥14,400198109-198305

main48511-14170iRA63,TA61,63..GT,GTT¥14,400198109-198507

main48511-20110iCA60,SA60..CP,SED¥14,400198401-198508

main48511-20120iAA63¥14,400198305-198507

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-14140iCA67,KA67,SA60,TA67..V,WG¥14,400198109-198508

main48511-14150iAA60,CA60,SA60..CP,SED¥14,400198109-198401

main48511-14160iTA63..SE,ST¥14,400198109-198305

main48511-14170iRA63,TA61,63..GT,GTT¥14,400198109-198507

main48511-20110iCA60,SA60..CP,SED¥14,400198401-198508

main48511-20120iAA63¥14,400198305-198507

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-14010iCA67,KA67¥33,700198109-198508

sub48520-14020¥33,700

main48520-14020iAA60;SA60..WG¥33,700198109-198508

sub48520-14021¥33,700

main48520-14050iTA63..SE,ST¥33,700198109-198305

sub48520-14051¥33,700

main48520-14060iRA63,TA61,63..GT,GTT¥34,000198109-198305

main48520-20140iAA63,TA63¥33,700198305-198507

sub48520-14051¥33,700

main48520-20150iCA60,SA60..CP,SED¥35,200198401-198508

main48520-20300iCA67,KA67¥33,300198508-198804

sub48520-20311¥33,300

main48520-20310iSA60..SG¥33,100198508-198712

sub48520-20311¥33,300

main48520-20320iAA60;SA60..ST¥32,900198508-198804

sub48520-20300¥33,300

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-14050iCA67,KA67,SA60,TA67..V,WG¥3,010198109-198508

main48550-14060iAA60;SA60..WG¥3,320198109-198508

main48550-24010iAA63,RA63,TA61,63..GT,GTT¥3,540198109-198508

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-14010iAA60,CA6#,KA67,SA60,TA67¥1,320198109-198508

main48552-14021iAA63,RA63,TA61,63¥1,980198109-198507

48568RING, SHOCK ABSORBER PISTON

main48568-22020iAA6#,CA6#,RA63,SA60,TA6#¥760198109-198307

main48568-22021iAA6#,CA6#,KA67,SA60,TA6#¥730198307-198508

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011iAA6#,CA6#,KA67,RA63,SA60,TA6#¥300198109-198508

48598PLATE, ABSORBER NAME

main48598-14270iCA67,KA67,SA60,TA67..V,WG198109-198409

RH

main48598-14280iCA67,KA67198109-198409

LH

main48598-14290iAA60,CA60,SA60..CP,SED198109-198409

RH

main48598-14300iAA60,CA60,SA60..CP,SED198109-198409

LH

main48598-14310iTA63..SE,ST198109-198305

RH

main48598-14320iTA63..SE,ST198109-198305

LH

main48598-14330iRA63,TA61,63..GT,GTT198109-198305

RH

main48598-14340iRA63,TA61,63..GT,GTT198109-198305

LH

main48598-20010iAA63,TA63198305-198409

RH

main48598-20020iAA63,TA63198305-198409

LH

main48598-20030iCA60,SA60..CP,SED198401-198409

RH

main48598-20040iCA60,SA60..CP,SED198401-198409

LH

16 parts on this diagram · 2 diagrams in section
