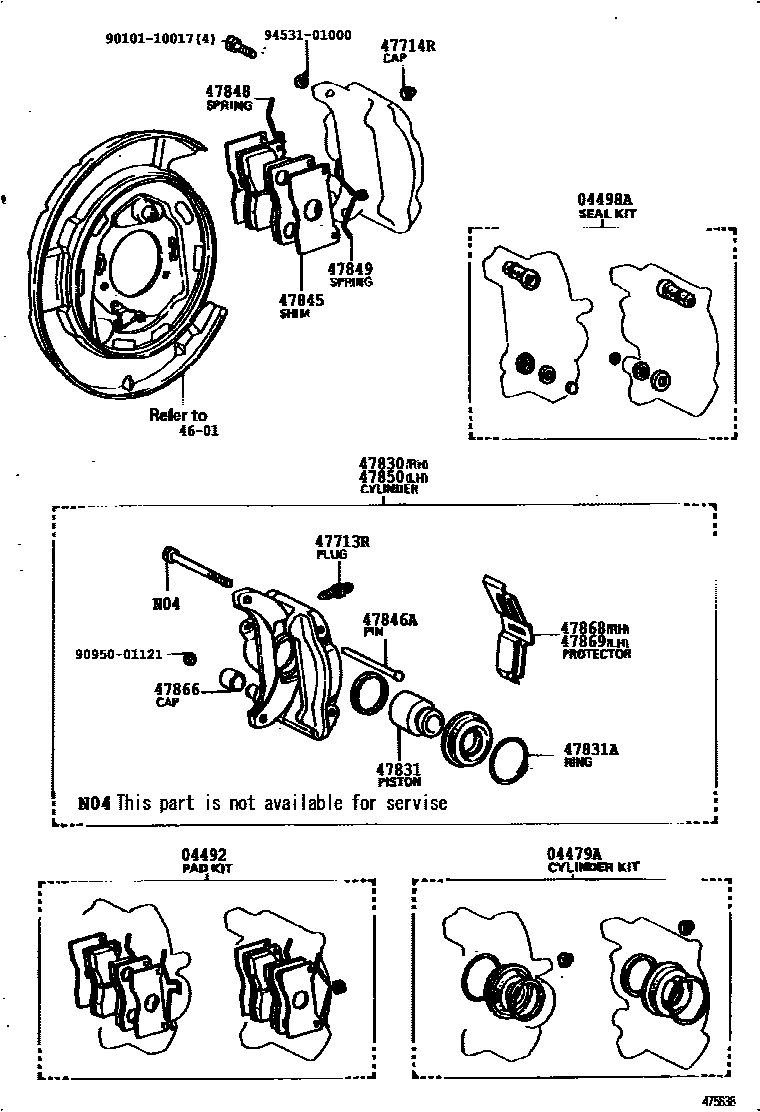

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30040iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

sub04479-30041

04492PAD KIT, DISC BRAKE, REAR

main04492-22020iAA63,RA63,TA61,63..GT,GTT,SE198209-198507

main04492-24020iRA63,TA61,63..GT,SE198205-198209

main04492-30050iRA63,TA61,63..GT,SE198109-198205

04498ASEAL KIT, DISC BRAKE, REAR

main04498-30010iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

sub04498-30011

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12040×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-22090iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47831PISTON, REAR DISC BRAKE

main47731-30030×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-48044×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47845SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-30070×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47846APIN, W/HOLE(FOR REAR DISC BRAKE PAD)

main90240-06133×4iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-30030×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-30010×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-22090iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47866CAP, TORQUE PLATE PIN, REAR

main47766-12010×2iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47868PROTECTOR, DISC BRAKE PAD, REAR RH

main47767-30020iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

47869PROTECTOR, DISC BRAKE PAD, REAR LH

main47767-30020iAA63,RA63,TA61,63..GT,GTT,SE198109-198507

9010110017

main90101-10017

9095001121

main90950-01121

9453101000

main94531-01000

20 parts on this diagram · 2 diagrams in section
