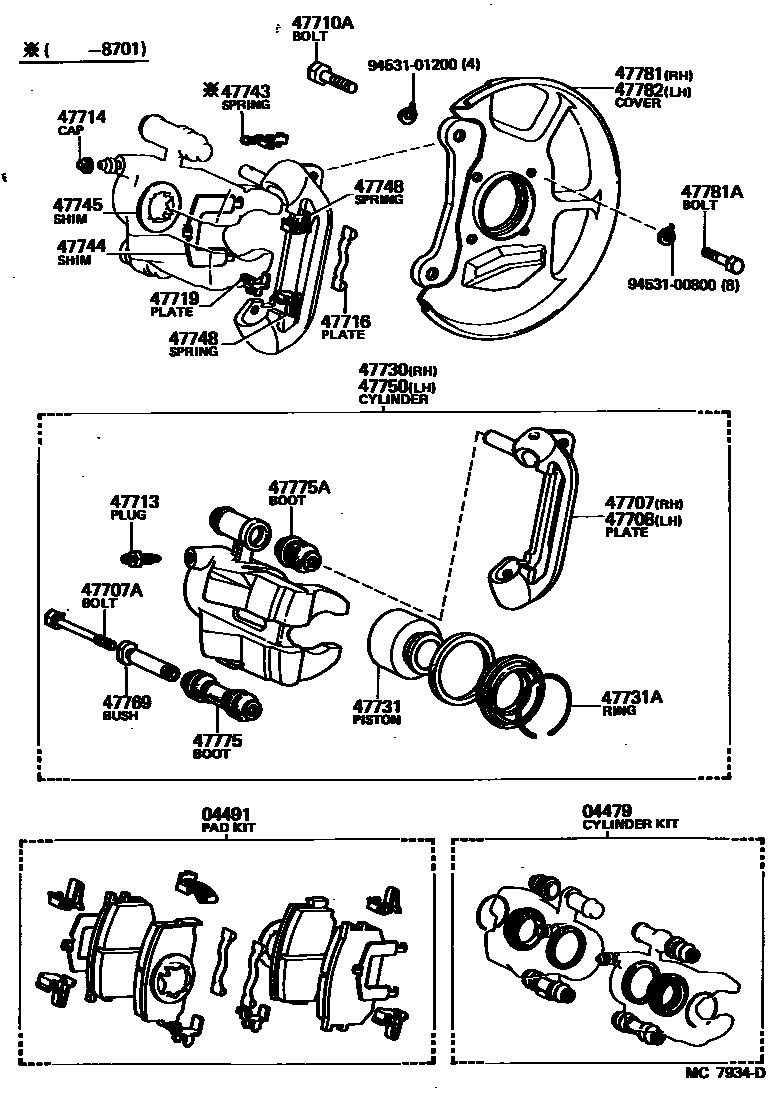

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14060iAA60,CA6#,KA67,SA60,TA67198109-198804

main04479-22010iAA63,RA63,TA61,63198109-198507

04491PAD KIT, DISC BRAKE, FRONT

main04491-14120iAA60,CA6#,KA67,SA60,TA67198109-198403

sub04465-14350

main04491-14180iAA60,SA60198403-198804

sub04465-14350

main04491-22160iAA63,RA63,TA61,63198205-198404

main04491-22161iAA63,TA63198404-198507

sub04491-22162

main04491-24010iRA63,TA61,63198109-198205

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199×2iAA60,CA6#,KA67,SA60,TA67198109-198804

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064×4iAA60,CA6#,KA67,SA60,TA67198109-198804

main90101-12066×4iAA63,RA63,TA61,63198109-198507

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040×2iAA63,RA63,TA61,63198109-198507

main47547-20010×2iAA60,CA6#,KA67,SA60,TA67198109-198804

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main47716-22010×4iAA63,RA63,TA61,63198109-198507

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010×2iAA60,CA6#,KA67,SA60,TA67198109-198701

main47736-12040×2iAA60,KA67,SA60198701-198804

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12250iAA60,CA6#,KA67,SA60198308-198804

main47730-14050iAA60,CA6#,SA60,TA67198109-198308

main47730-24010iAA63,RA63,TA61,63198109-198507

47731PISTON, FRONT DISC BRAKE

main47731-14070×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main47731-30050×2iAA63,RA63,TA61,63198109-198507

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004×2iAA60,CA6#,KA67,SA60,TA67198109-198804

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iAA60,CA6#,KA67,SA60,TA67198109-198701

LH

main47748-12050iAA60,CA6#,KA67,SA60,TA67198109-198701

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main47744-22040×2iAA63,RA63,TA61,63198109-198507

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-22050×2iAA63,TA63198404-198507

main47745-14020×2iAA60,CA6#,KA67,SA60,TA67198211-198804

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040×2iAA60,CA6#,KA67,SA60,TA67198109-198804

LWR

main47748-14050×2iAA60,CA6#,KA67,SA60,TA67198109-198804

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12250iAA60,CA6#,KA67,SA60198308-198804

main47750-14130iAA60,CA6#,SA60,TA67198109-198308

main47750-24010iAA63,RA63,TA61,63198109-198507

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010×2iAA60,CA6#,SA60,TA67198109-198308

sub47769-28H00

sub47769-28H01

main47769-28010×2iAA60,CA6#,KA67,SA60198308-198804

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010×2iAA60,CA6#,KA67,SA60,TA67198109-198804

47775ABOOT, PIN

main47776-14010×2iAA60,CA6#,KA67,SA60,TA67198109-198804

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14080iAA60,CA6#,KA67,SA60,TA67198109-198804

main47781-14070iAA63,RA63,TA61,63198109-198507

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341×8iAA63,RA63,TA61,63198109-198507

main90101-10062×8iAA60,CA6#,KA67,SA60,TA67198109-198804

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14080iAA60,CA6#,KA67,SA60,TA67198109-198804

9453100800

main94531-00800

9453101200

main94531-01200

26 parts on this diagram · 3 diagrams in section
