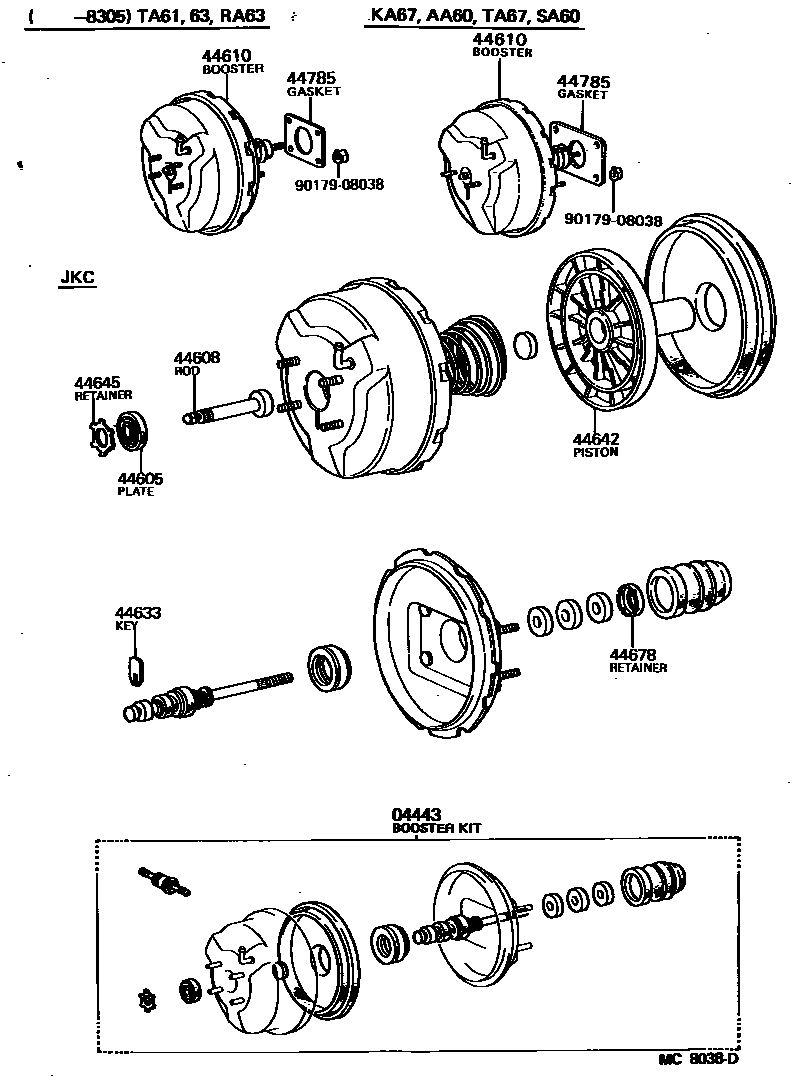

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-14320iAA60,KA67,SA60,TA67198109-198804

AISIN

main04443-14330iAA60,KA67,SA60,TA67198109-198804

JKC

main04443-14340iCA6#198202-198804

AISIN

main04443-14420iTA63..GTT198210-198305

JKC

main04443-14440iTA63198305-198507

JKC

main04443-14450iAA63198305-198507

JKC

main04443-24010iRA63,TA61,63..GT,SE,ST198109-198305

JKC

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iAA6#,KA67,RA63,SA60,TA6#198109-198804

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iAA60,CA6#,KA67,SA60,TA67198109-198804

AISIN

main44608-14040iAA60,KA67,SA60,TA67198109-198804

JKC

main44608-22090iRA63,TA61,63198109-198305

main44608-32020iAA63,TA63198305-198507

44610BOOSTER ASSY, BRAKE

main44610-14510iAA60,KA67,SA60,TA67198109-198804

JKC

main44610-14550iCA6#198202-198804

AISIN

main44610-14640iTA63198305-198507

JKC

main44610-14650iAA63198305-198507

JKC

main44610-22330iAA60,KA67,SA60,TA67198109-198804

AISIN

main44610-24010iTA63..GTT198210-198305

JKC

main44610-24020iRA63,TA61,63..GT,SE,ST198109-198305

JKC

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iAA60,KA67,SA60,TA67198109-198804

main44633-28130iAA63,TA63198305-198507

44642PISTON, BRAKE BOOSTER

main44642-14170iAA60,CA6#,KA67,SA60,TA67198109-198804

AISIN

main44642-20140iAA60,KA67,SA60,TA67198109-198804

JKC

main44642-30310iRA63,TA61,63198109-198305

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iAA6#,KA67,RA63,SA60,TA6#198109-198804

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iAA60,RA63,SA60,TA6#198109-198804

44785GASKET, BRAKE BOOSTER

main44785-20030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

9017908038

main90179-08038

10 parts on this diagram · 6 diagrams in section
